2016 Crew non alpine, where to tap the rear Speakers?

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

ChrisM101

Member
Joined
Apr 7, 2018
Posts
48
Reaction score
23
Location
Arkansas
Ram Year
2016
Engine
5.7
2016 crew cab, uconnect 5.0 non alpine, need to know where to tap the rear door speakers.
Are they ran together down one side and then cross ? or do they run independently on the left and right?
I plan to tap them for an AudioControl LC2i.


Gear Jammer

Senior Member
Joined
Sep 25, 2016
Posts
150
Reaction score
82
Location
Yacolt WA
Ram Year
2013
Engine
Cummins
I tapped into mine in the rear doors at the speaker. I only needed to tap into one side for my amp though.


SitKneelBend

Senior Member
Joined
Jan 8, 2015
Posts
9,022
Reaction score
4,694
Location
St. Louis
Ram Year
2014
Engine
3.6 Pentastar
If you move the passenger seat forward and pop off the lower b-pillar trim it is easily accessible there. The wires will be the only ones twisted together in the harness.


Sent from my HTC U11 using Tapatalk


JinxCanada

Senior Member
Joined
Oct 15, 2014
Posts
765
Reaction score
155
Location
Windsor, Ontario, Canada
Ram Year
2010 Ram Sport
Engine
5.7 Hemi
exactly. just pop off the B pillar cover and you'll see a pair of coloured striped wires twisted together....those are the speaker wires. you can tap in at the b pillar...no need to tap at the speaker itself. that's just extra work and a pain in the ass.


OP
OP
ChrisM101

ChrisM101

Member
Joined
Apr 7, 2018
Posts
48
Reaction score
23
Location
Arkansas
Ram Year
2016
Engine
5.7
Thanks for the info. I'd like to tap both sides in order to have left and right separation should I later want to run the mids and highs off an additional amp.

I got my project going today. Ran power from battery . spaced up seat. Slid in the fox box. found a spot for the amp. Just need some warm weather and no rain long enough to tap the door speakers and wire in the LC 2i and find a ground .


addisonm06

Member
Joined
Mar 22, 2018
Posts
34
Reaction score
11
Location
michigan
Ram Year
2017
Engine
Hemi 5.7

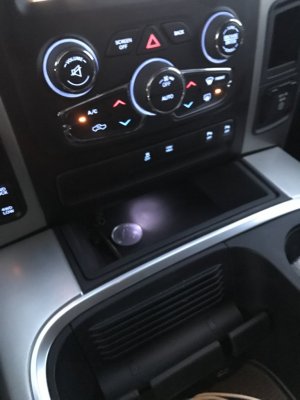

I just installed an amplifier on my factory 2017 8.4 uconnect. I installed the LOC behind the radio. Its very easy to take the dash apart to get behind the radio. I also installed an LED push button in the console under the HVAC controls which i tied to the remote wire of the amplifier so i can easily turn on/off the amplifier. Its also nice to have a light there to brighten that cubby!

Last edited:
OP
OP
ChrisM101

ChrisM101

Member
Joined
Apr 7, 2018
Posts
48
Reaction score
23
Location
Arkansas
Ram Year
2016
Engine
5.7
So i tapped into the wires into the pillars and ran both down each side and back to the rear seat and connected them to the LC2i. Then i got side tracked by installing new kicker dash speakers and blacked out tail lights. Maybe ill get the power and ground blocks installed sooner or later.kickr.jpg kickr2.jpg


88ROOK

Senior Member
Joined
Feb 22, 2018
Posts
658
Reaction score
300
Location
illinois
Ram Year
2018
Engine
5.7
So are the other wires to tie into the amp behind the factory radio (remote, constant12v). I need to tackle my setup soon


addisonm06

Member
Joined
Mar 22, 2018
Posts
34
Reaction score
11
Location
michigan
Ram Year
2017
Engine
Hemi 5.7
For my remote i tapped into the 12v of the cigarette lighter; it was easiest for me in respect to the location in which i installed the led push button switch.


88ROOK

Senior Member
Joined
Feb 22, 2018
Posts
658
Reaction score
300
Location
illinois
Ram Year
2018
Engine
5.7
is that cigarette 12v good to run two amp remotes?


addisonm06

Member
Joined
Mar 22, 2018
Posts
34
Reaction score
11
Location
michigan
Ram Year
2017
Engine
Hemi 5.7
i dont see why not. the remote wire does not pull much amperage to turn on so i would believe it is more than fine.


88ROOK

Senior Member
Joined
Feb 22, 2018
Posts
658
Reaction score
300
Location
illinois
Ram Year
2018
Engine
5.7
anyone got pics of tapping into the cigarette 12v....visual always helps


addisonm06

Member
Joined
Mar 22, 2018
Posts
34
Reaction score
11
Location
michigan
Ram Year
2017
Engine
Hemi 5.7

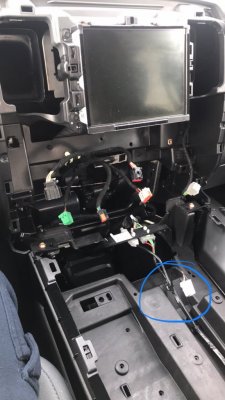

I used quick splice to connect into it. Here is the harness of the cigarette lighter circle in blue. On my 2017 I had to remove the center console first, than the dash. Very easy and only a few screws; the rest of it was held in by push pins. Red wire was positive, Black negative on the cigarette lighter.



addisonm06

Member
Joined
Mar 22, 2018
Posts
34
Reaction score
11
Location
michigan
Ram Year
2017
Engine
Hemi 5.7
No problem! I’ll send the link tomorrow of how to take apart the center console and dash. I believe the 16 is the same as the 17.


bigred74

Senior Member
Joined
Dec 20, 2013
Posts
1,163
Reaction score
658
Location
Illinois
Ram Year
1999 and 2017
Engine
5.9L Magnum and 5.7L hemi
If you don't want to take all that apart the back of your console comes apart.. just four push pins, mine came off really easy. I spliced into my radio for my speaker wire but then took that off to route my rca cables thru console and then under carpet to rear of cab.Screenshot_20180412-082908.jpg

OP
OP
ChrisM101

ChrisM101

Member
Joined
Apr 7, 2018
Posts
48
Reaction score
23
Location
Arkansas
Ram Year
2016
Engine
5.7
So are the other wires to tie into the amp behind the factory radio (remote, constant12v). I need to tackle my setup soon

No just tap them at the back doors and you can just put the lc2i back there. Ive just been waiting on my power distribution blocks and a set of decent short RCAs since i dont need 5 meter ones to run from the front but a 1 foot set since the amp is by the lc2i and speakers. Amazon has arrived today, but im working late again. The only long run youll have to make is the main power wire from battery to back.
