AEV Switch Pod installed

[Ramm5.7]

Wish i could come meet up with ya'll and show mine off....lmao



[JB1]

Kilroy.......up yours baby



[S0CAL]

********...



[Ramm5.7]

Lmao



[projectevaunit01]

Very new to these switches, do the Contura switches offer a (on) none (on) mode? Where the up position of the rocker switches one device on then the rocker springs back to the middle neutral position, then down will switch another device on and then back to middle. Do the same to switch off. Essentially getting two switches in one v series switch. I would like to be able to control 12 devices from the 6 switches this pod will accommodate.

This is this but I wonder how much of the pod I will have to modify to make it work and look nice

http://www.carlingtech.com/electronic-switching-products-ckp-series

Sent from my XT1635-02 using Tapatalk



[shadowhawk]

JB, any chance you could add a full parts list to this? Better yet, I'll send you my stuff and you could work that voodoo magic on my parts



[bigred74]

JB, any chance you could add a full parts list to this? Better yet, I'll send you my stuff and you could work that voodoo magic on my parts

Yes!! I'd join this party and bring the beer!!



[bigred74]

Wish i could come meet up with ya'll and show mine off....lmao

View attachment 131390

How did you wire yours?



[Ramm5.7]

How did you wire yours?

Carefully.....lmao
Its a self contained system. Oem Switch assembly with a fuse/relay box under hood. Plug n play connections to factory wires feeding switch with load side harness to relays. Hot from batt to one side of relay and light wires on other. System is negative (ground) switched like factory



[bigred74]

I'm working on doing that right now



[shadowhawk]

so would all the power leads from the accessories feed into the bottom of the fuse box?



[BinaryData]

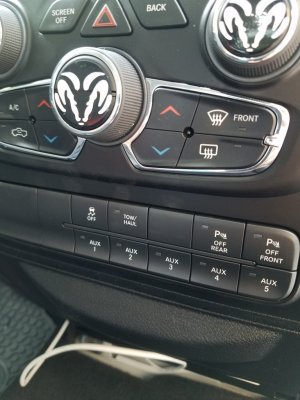

I was actually looking for something like this. I'm not sure if it's worth upgrading my 09 RAM 1500 for something like this. However, I think I can make this idea work for my 79 F-150.



[JB1]

so would all the power leads from the accessories feed into the bottom of the fuse box?

If your asking me?.....I posted a schematic on the first post



[OC455]

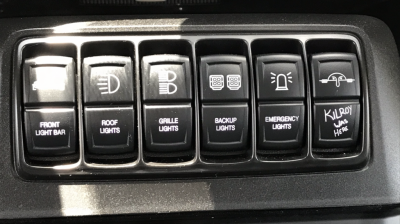

Over the year I started adding more and more electrical items to my truck so I decided to add the AEV 6 position switch pod part number 30601000AA to the dash. I designed a schematic, ran it by @IRSmart a few times to check my plan and started ordering the parts.

https://secure.aev-conversions.com/shop/products/interior/switch-pod-for-ram-trucks

View media item 25418
View media item 25404
View media item 25405
The power distribution box is made by littlefuse HWB60 and worked well. I ran the trigger wires inside the fender like the other oem wires are.

http://www.littelfuse.com/products/...modules/hard-wired-pdm/hwb60/pdm21001lxm.aspx

View media item 25414
View media item 25416
View media item 25417
The switches are from OTRATTW (Over The River and Thru The Woods)

https://otrattw.net/LOWER-INDEPENDENT-LIGHT-UPPER-DEPENDENT-LIGHT-SWITCH-ONLY/

The rockers are Contura XIV, they have a good feel to them and have a "separation" molded in to distinguish upper or lower.

https://otrattw.net/CONTURA-XIV-ROCKER-ONLY/

I used @kad method of entering the cab via a rubber boot.

http://www.ramforum.com/threads/ins...nning-wires-into-the-cab.117923/#post-1696482

View media item 25415
I routed the wire bundle behind the head unit and up thru the top of the center stack. I then added the mating connector to allow easy removal of the switch pod.

View media item 25419
View media item 25412
View media item 25409
View media item 25410
View media item 25411
View media item 25413
View media item 25407
View media item 25421

The wiring schematic is perfect. Thank you.



[shadowhawk]

If your asking me?.....I posted a schematic on the first post

can you teach me how to read it?



[JB1]

can you teach me how to read it?



[shadowhawk]

I see the red terminates at the fuse block for power, and you've used a separate color from the relay to the accessory. I guess what I'm after now is a picture of the multi-color wires into the fuse box then.



[JB1]

I see the red terminates at the fuse block for power, and you've used a separate color from the relay to the accessory. I guess what I'm after now is a picture of the multi-color wires into the fuse box then.

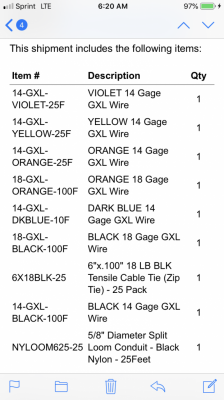

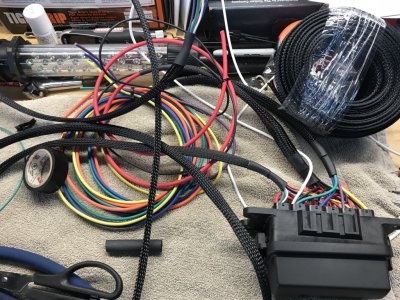

I use only GXL automotive grade wire made in the USA from wirebarn, you can pick any colors you want it’s just nice to have different colors so you can match it from the switch to the light itself. All the wire in the cab is low amp so you don’t need a heavy gauge, it’s just to trigger the relay. The wires from the box to the lights are thicker gauge since they carry the load.

https://www.wirebarn.com/BLACK-14-Gage-GXL-Wire-_p_76.html



[shadowhawk]

I bet that picture was in the first post too, and I just missed it. Thanks JB. You're a peach!



[JB1]

Lol....sorry I don’t have more pics, I never intended this to be a “how too” since it’s so custom to my setup.

Here’s a schematic of just the power distribution box with wire size and cut lengths, sorry about the pic quality I just printed it and took the pic from my desk at work
