Hey guys qucik question.. i bought this backup camera and i plan to connect it to my pioneer H/U..

Where did you guys tap the reverse? what color was the wire ?

had my daughter holding her in reverse and could not find a live wire here



Last edited:

BrianandChrissy

Senior Member
Military
Joined
Jul 11, 2016
Posts
826
Reaction score
477
Location
Buffalo NY
Ram Year
2016 big horn crew cab
Engine
5.7 hemi, vararam CAI
You need to tap into the reverse bulb wire. Then it only comes on when in reverse.

Sent from my LGMP450 using Tapatalk


stimpy433

Senior Member
Joined
Mar 10, 2016
Posts
3,583
Reaction score
3,163
Location
IOWA
Ram Year
2014
Engine
3.6
EDITED: look at the diagram on the cover of your 7 pin plug, it's the center pin.

Last edited:
OP
OP
BiGMERF

BiGMERF

Senior Member
Joined
May 9, 2017
Posts
1,738
Reaction score
791
Location
Florida
Ram Year
2017 SLT 4x4
Engine
v6
Sent from my LGMP450 using Tapatalk[/QUOTE]
You need to tap into the reverse bulb wire. Then it only comes on when in reverse.

Sent from my LGMP450 using Tapatalk

yea i was trying to avoid getting in there since i know the tow harness has to have a reverse

White wire, look at the diagram on the cover of your 7 pin plug.

looking for it now..i see three white wires.. ive never towed with her, just have an LED ram head in the hitch until i need to


stimpy433

Senior Member
Joined
Mar 10, 2016
Posts
3,583
Reaction score
3,163
Location
IOWA
Ram Year
2014
Engine
3.6
Hey guys qucik question.. i bought this backup camera and i plan to connect it to my pioneer H/U..

Where did you guys tap the reverse? what color was the wire ?

had my daughter holding her in reverse and could not find a live wire here


View attachment 131463

I used the white wire in the picture you posted above...should be coming out of the back of the 7 pin plug. It's the center pin on the 7 pin connector. I used it for wiring up my LED bar that has reverse light built in, but should work for you too. Otherwise you could splice off the reverse light bulb wiring behind the taillight.


Last edited:
OP
OP
BiGMERF

BiGMERF

Senior Member
Joined
May 9, 2017
Posts
1,738
Reaction score
791
Location
Florida
Ram Year
2017 SLT 4x4
Engine
v6
I used the white wire in the picture you posted above...should be coming out of the back of the 7 pin plug. It's the center pin on the 7 pin connector. I used it for wiring up my LED bar that has reverse light built in, but should work for you too. Otherwise you could splice off the reverse light bulb wiring behind the taillight.

View attachment 131487

ok.... i had a rverse cam prior via a the rear view mirror.. i took that out.. but i remember the guy who put it in tell me he tapped a power line instead cause the reverse bulb wire wasnt giving off enough juice to activate it.. ... i dint understand why it would make a difference, but i figured let me find out which one on the harness is the white..

cant find the diagram you speak of


stimpy433

Senior Member
Joined
Mar 10, 2016
Posts
3,583
Reaction score
3,163
Location
IOWA
Ram Year
2014
Engine
3.6
ok.... i had a rverse cam prior via a the rear view mirror.. i took that out.. but i remember the guy who put it in tell me he tapped a power line instead cause the reverse bulb wire wasnt giving off enough juice to activate it.. ... i dint understand why it would make a difference, but i figured let me find out which one on the harness is the white..

cant find the diagram you speak of

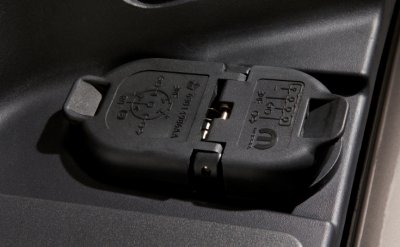

It looks like this.... center pin, the "R" with the light symbol.



stimpy433

Senior Member
Joined
Mar 10, 2016
Posts
3,583
Reaction score
3,163
Location
IOWA
Ram Year
2014
Engine
3.6
A little confusing, but glad I could help out.

OP
OP
BiGMERF

BiGMERF

Senior Member
Joined
May 9, 2017
Posts
1,738
Reaction score
791
Location
Florida
Ram Year
2017 SLT 4x4
Engine
v6
It looks like this.... center pin, the "R" with the light symbol.

View attachment 131489

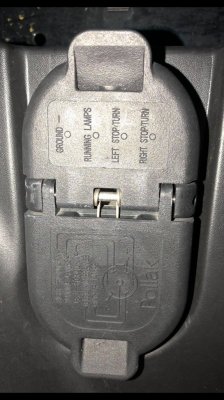

of course mines doesnt have it labeled.. sigh lol


bottom says

right stop turn
running lampos
left stop turn
electric brakes
backup lamps

top says

ground
running lamps
left stop turn
right stop turn


stimpy433

Senior Member
Joined
Mar 10, 2016
Posts
3,583
Reaction score
3,163
Location
IOWA
Ram Year
2014
Engine
3.6
of course mines doesnt have it labeled.. sigh lol

View attachment 131501

bottom says

right stop turn
running lampos
left stop turn
electric brakes
backup lamps

top says

ground
running lamps
left stop turn
right stop turn

Bottom cover, center that say "backup lamps" should be the one you want. Yours must be aftermarket add plug set up???

OP
OP
BiGMERF

BiGMERF

Senior Member
Joined
May 9, 2017
Posts
1,738
Reaction score
791
Location
Florida
Ram Year
2017 SLT 4x4
Engine
v6
Bottom cover, center that say "backup lamps" should be the one you want. Yours must be aftermarket add plug set up???

dood lmao.. im such a damm noob... over here looking for reverse... lmao !!!!!!!!!!


McBroom

U.S.Marine Veteran Retired 88-2000
Military
Joined
May 25, 2017
Posts
5,860
Reaction score
7,392
Location
Denison Tx
Ram Year
2018
Engine
Hemi 6.4L
I'm not 100% sure on the 4 pin plug but I think the white wire is the ground.

Your correct


I Love My 2018 RAM 2500HD 4x4 Off Road. 6.4L. USMC (ret)

OP
OP
BiGMERF

BiGMERF

Senior Member
Joined
May 9, 2017
Posts
1,738
Reaction score
791
Location
Florida
Ram Year
2017 SLT 4x4
Engine
v6

Lil_Ram

Senior Member
Joined
Apr 10, 2015
Posts
1,303
Reaction score
661
Ram Year
2003
Engine
Power tech 3.7L
I’m thinking you got it already but I know it’s the purple wire on my 3rd gen for the 7 pin harness


Sent from my iPhone using Tapatalk

OP
OP
BiGMERF

BiGMERF

Senior Member
Joined
May 9, 2017
Posts
1,738
Reaction score
791
Location
Florida
Ram Year
2017 SLT 4x4
Engine
v6
I’m thinking you got it already but I know it’s the purple wire on my 3rd gen for the 7 pin harness


Sent from my iPhone using Tapatalk

Actually I’m just going to wire it straight to the reverse on the radio.
Each side of the rca has a red power connection. One side to the camera and one side to the reverse on the radio
