Got my new LED's in so I redid my gauge cluster. Going from ones with 4 leds to 5. 4 of them out the side with a high power on top, I have alot better spread now, and less hot spots.

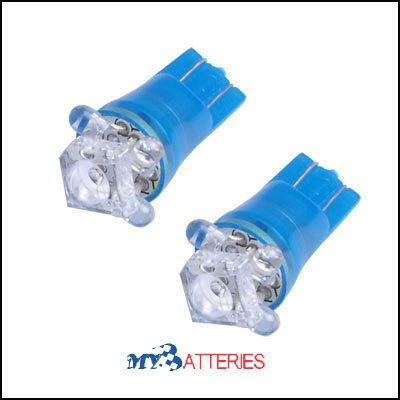

Before (4 bulbs)

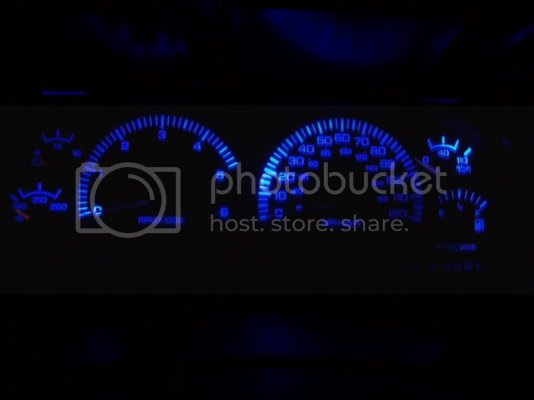

After(5)

Last edited:

OklaHemi

Supporting Member
Joined
Jun 25, 2010
Posts
4,254
Reaction score
24
Ram Year
04
Engine
new age hemi
that looks good man


txbass06

Supporting Member
Joined
Oct 27, 2010
Posts
4,129
Reaction score
54
Location
NE Texas
Ram Year
1996
Engine
5.9 Magnum
Lookin good bud. Been thinking about doing the same thing to mine for a while


BMRbrnSNRbrd

Senior Member
Joined
Dec 9, 2010
Posts
1,411
Reaction score
25
Location
Norman, OK
Ram Year
2010 Dodge Ram 1500 CC Hemi Sport
Engine
5.7 Hemi
Looks good, but it looks like you got a couple of 'hot spots.' I don't know how much of a pain it would be, but maybe you could put the four led ones back in to fix the areas at the 0 on the tach, 20 on the speedo, and 110 on the oil pressure?

OP
OP
wermbang

wermbang

Senior Member
Joined
Jun 29, 2010
Posts
9,724
Reaction score
213
Location
Iowa
Ram Year
2001 Off Road
Engine
5.9L V8 Sport
Looks good, but it looks like you got a couple of 'hot spots.' I don't know how much of a pain it would be, but maybe you could put the four led ones back in to fix the areas at the 0 on the tach, 20 on the speedo, and 110 on the oil pressure?

Thats where all the bulbs are located.

I think it shows more in the photos than actually in person. And I think a couple of them are not even on as they need to be turned the other way, so that may will help spread it out more too.

I am eventually changing the ring around the key to blue, and then in overhead lights to white.

I also have around 80 prewired LEDs to add some accents to places


Bigtman07

Registered User
Joined
Jun 28, 2010
Posts
9,329
Reaction score
287
Location
Piqua, Ohio
Ram Year
2000
Engine
Cummins 5.9
Looks good!! Another Successful LED Dash mod. Good job Luke.

OP
OP
wermbang

wermbang

Senior Member
Joined
Jun 29, 2010
Posts
9,724
Reaction score
213
Location
Iowa
Ram Year
2001 Off Road
Engine
5.9L V8 Sport
Yeah I had mine done from over a year ago, had a couple of the old LEDs go bad so I figured it was time to try new bulbs.

OP
OP
wermbang

wermbang

Senior Member
Joined
Jun 29, 2010
Posts
9,724
Reaction score
213
Location
Iowa
Ram Year
2001 Off Road
Engine
5.9L V8 Sport
screwed them up but they light up at least.

I tried getting fancy with the needles, now they are messed up in position and I broke the tip of the RPM. Any suggestions on fixing the positions? I will get another RPM needle of a parts vehicle my dad has.
and a short video.

Last edited:

Bigtman07

Registered User
Joined
Jun 28, 2010
Posts
9,329
Reaction score
287
Location
Piqua, Ohio
Ram Year
2000
Engine
Cummins 5.9
This is just a suggestion but it's worth a shot. Take the cluster out just a bit and reseat it. if that doesn't work with the plastic shield off pull the needles and let the cluster naturally reset to "home". then put the needles back on. Just a thought. I haven't really seen that issue before. Maybe colton will chime in he had similar issues.

OP
OP
wermbang

wermbang

Senior Member
Joined
Jun 29, 2010
Posts
9,724
Reaction score
213
Location
Iowa
Ram Year
2001 Off Road
Engine
5.9L V8 Sport
I was gonna wait till I got off work, but may just do it on my lunch. the directions are for a Dakota, but should be the same, its already messed up so I figured I can try it.


Bigtman07

Registered User
Joined
Jun 28, 2010
Posts
9,329
Reaction score
287
Location
Piqua, Ohio
Ram Year
2000
Engine
Cummins 5.9
Yup it's already broke so how much worse could it get. lol Good luck luke hope it works for ya.

OP
OP
wermbang

wermbang

Senior Member
Joined
Jun 29, 2010
Posts
9,724
Reaction score
213
Location
Iowa
Ram Year
2001 Off Road
Engine
5.9L V8 Sport
Well it worked!!!!
Just had to do it mutiple times to get the needles to align properly. Took about 1/2 hour for all of them


BlackedOutHemi

Senior Member
Joined
Feb 27, 2011
Posts
5,454
Reaction score
196
Location
DFW, Texas
Ram Year
2012 & 2012
Engine
5.7L HEMI & 6.7L Cummins
That looks amazing. Really made me want to do mine now.
