Oh boy. Our new truck is still on a train somewhere between here and Saltillo, so I can't go confirm it yet, but according to the pinout diagrams I've found on the internet, on the 7-way it goes like this.
pin 1 - ground
pin 2 - trailer brakes
pin 3 - running lights
pin 4 - battery charge
pin 5 - stop/left turn
pin 6 - stop/right turn
pin 7 - auxilliary/backup lights

is that not correct?

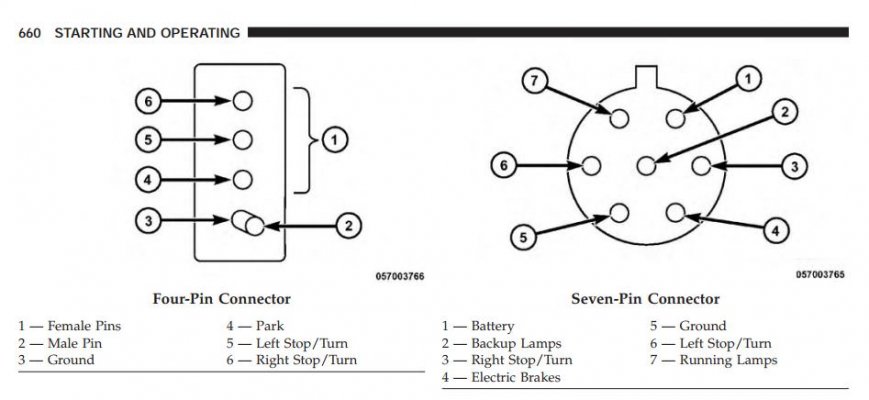

From the RAM owners' manual;



pilgrim6

Member
Joined
Feb 2, 2018
Posts
59
Reaction score
18
Location
Littlestown , PA
Ram Year
2011
Engine
4.7
From the RAM owners' manual;



OK, so I am THAT old. The first thing that went thru my mind when I saw this illustration was " Why is someone posting a distributor /spark plug diagram in a towing forum?"

The second thing was =="Why 6 spark plugs for a 4 cylinder in-line engine?"
