factory 7 blade wiring

Discussion in 'Towing & Hauling' started by bcolon91, Apr 18, 2015.

  1. bcolon91

    bcolon91 Junior Member

    Posts:
    7
    Likes Received:
    1
    Joined:
    Sep 16, 2014
    Ram Year:
    1996
    Engine:
    5.9L V8 Magnum

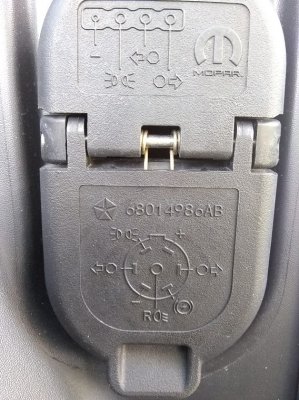

    I have a 97 Ram 1500 sport that came with factory hitch and wiring, although my metal box rotted out and I am replacing with an after market receptacle. The only problem is that I can not find a wiring diagram for the stock harness to hook into the new plug. Any help would be great.

  2. ohiogrown

    ohiogrown Senior Member

    Posts:
    345
    Likes Received:
    160
    Joined:
    Mar 4, 2015
    Location:
    ohio
    Ram Year:
    2010 CCSB, 2011 ccsb, 2012 5500, 2016 5500, 2017 ccsb wxpress
    Engine:
    4.7, 4.7, 6.7, 6.7, 5.7

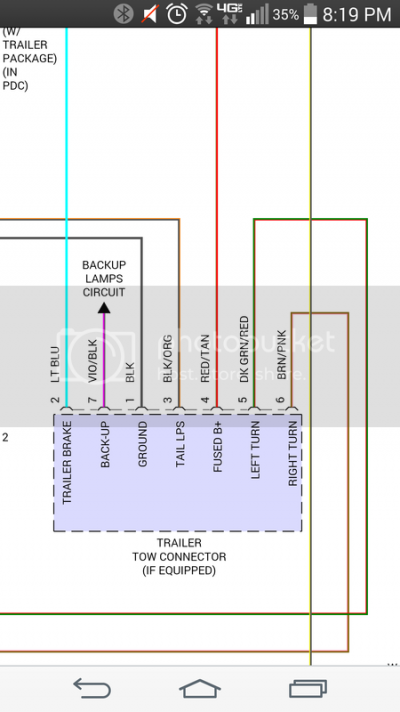

    Here ya go, logged in to Mitchell and screen shotted it for you. Enjoy.
    [​IMG]

    bcolon91 and mitchbowers like this.
  3. bcolon91

    bcolon91 Junior Member

    Posts:
    7
    Likes Received:
    1
    Joined:
    Sep 16, 2014
    Ram Year:
    1996
    Engine:
    5.9L V8 Magnum
    This is exactly what I needed, thank you. It will save me a lot of time with the multi meter :favorites13:
