guages pictures

Discussion in 'Interior' started by Redtruck-VA, Nov 3, 2014.

  1. Redtruck-VA

    Redtruck-VA Senior Member

    Posts:
    5,372
    Likes Received:
    692
    Joined:
    Jun 29, 2010
    Location:
    Virginia
    Ram Year:
    2003 & 1989 D250 RWD
    Engine:
    Hemi-5.7, 5.9 12v & 24v diesel
    Hey guys I'm new to the 1st Gen world, post up some pictures of how your gauges are mounted. Also how do you remove the center panel in the dash?

  2. RonJon '06

    RonJon '06 Senior Member

    Posts:
    3,306
    Likes Received:
    1,050
    Joined:
    Jan 2, 2014
    Location:
    Southern Minnesota
    Ram Year:
    2006, 1985
    Engine:
    5.7, 360
    Do you just want a pic of the dash from the outside or do you need one of what's behind the panel cause I dont have one with the panel off.

  3. Redtruck-VA

    Redtruck-VA Senior Member

    Posts:
    5,372
    Likes Received:
    692
    Joined:
    Jun 29, 2010
    Location:
    Virginia
    Ram Year:
    2003 & 1989 D250 RWD
    Engine:
    Hemi-5.7, 5.9 12v & 24v diesel
    I'm thinking of putting two or three gages in the center panel. So pictures showing gauges mounted and a little information on how to disassemble it would be great.
    Thanks,

  4. RonJon '06

    RonJon '06 Senior Member

    Posts:
    3,306
    Likes Received:
    1,050
    Joined:
    Jan 2, 2014
    Location:
    Southern Minnesota
    Ram Year:
    2006, 1985
    Engine:
    5.7, 360

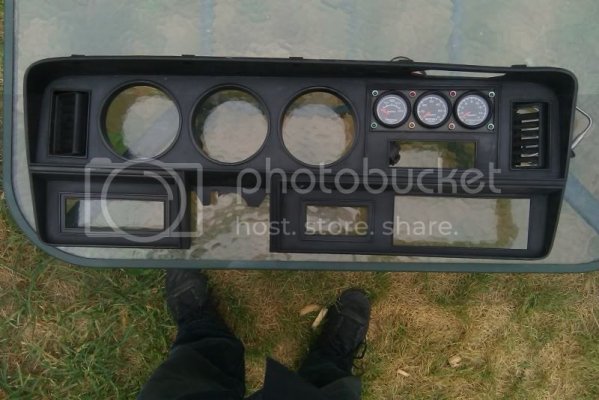

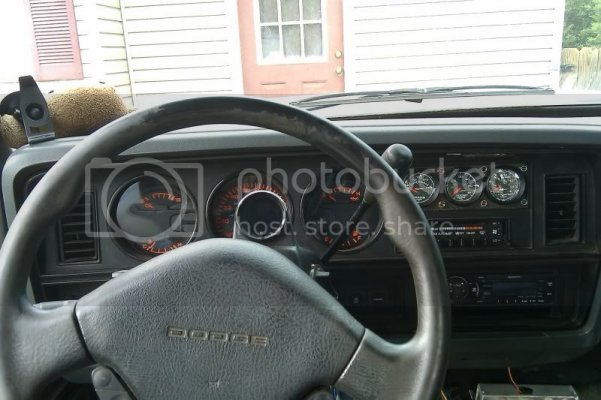

    This isn't my truck since it's still stock but I found this in a search and thought it looked pretty clean. I looked for a DIY to go along with it but didn't see one.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    youkmc, bozeblake and Redtruck-VA like this.
  5. Redtruck-VA

    Redtruck-VA Senior Member

    Posts:
    5,372
    Likes Received:
    692
    Joined:
    Jun 29, 2010
    Location:
    Virginia
    Ram Year:
    2003 & 1989 D250 RWD
    Engine:
    Hemi-5.7, 5.9 12v & 24v diesel
    That looks awesome. Dumb question, how is the say radio or center panel removed from the dash?

  6. RonJon '06

    RonJon '06 Senior Member

    Posts:
    3,306
    Likes Received:
    1,050
    Joined:
    Jan 2, 2014
    Location:
    Southern Minnesota
    Ram Year:
    2006, 1985
    Engine:
    5.7, 360
    That I don't know. It kinda looks like he just cut it out.:superhack:

    This is what mine looks like. The rectangle on the left is for the 4WD indicator light, cubby hole on the right and radio underneath.

    [​IMG]

  7. Redtruck-VA

    Redtruck-VA Senior Member

    Posts:
    5,372
    Likes Received:
    692
    Joined:
    Jun 29, 2010
    Location:
    Virginia
    Ram Year:
    2003 & 1989 D250 RWD
    Engine:
    Hemi-5.7, 5.9 12v & 24v diesel
    I guess I'll have to pull the front and then make the insert plate(s). I'll probably remove the radio while I'm at it. Maybe have a spare dash face to work with and then just swap.

  8. crazzywolfie

    crazzywolfie Senior Member

    Posts:
    14,101
    Likes Received:
    2,147
    Joined:
    Apr 6, 2013
    Location:
    under the truck
    Ram Year:
    81 93
    Engine:
    5.2

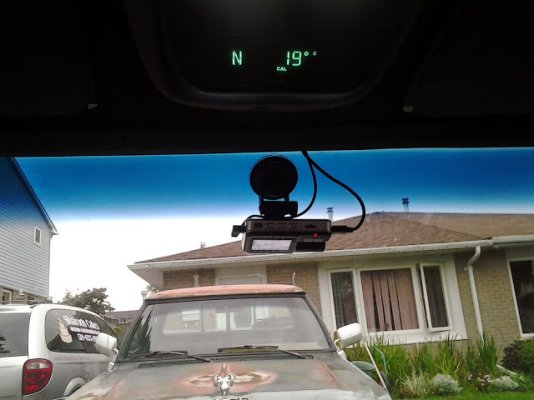

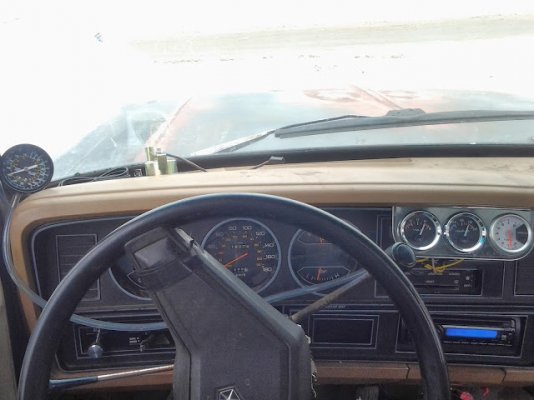

    here is the gauges i got on my truck. voltage, engine temp, tach, vacuum and out door temp. stock gauges suck for the most part.
    [​IMG]
    [​IMG]

  9. Redtruck-VA

    Redtruck-VA Senior Member

    Posts:
    5,372
    Likes Received:
    692
    Joined:
    Jun 29, 2010
    Location:
    Virginia
    Ram Year:
    2003 & 1989 D250 RWD
    Engine:
    Hemi-5.7, 5.9 12v & 24v diesel
    Yes, I'm thinking tach, boost, fuel pressure, egt. I specifically want a 0-3500 3-3/4" tach. I want to put it on the steering column. I've found a couple that use a flywheel pickup, but don't know if the harmonic balancer pickup will be a good substitute or is there a mounting arrangement that can be used with the flywheel pickup.. I think our flywheel(flex plate) is 152 teeth.

  10. crazzywolfie

    crazzywolfie Senior Member

    Posts:
    14,101
    Likes Received:
    2,147
    Joined:
    Apr 6, 2013
    Location:
    under the truck
    Ram Year:
    81 93
    Engine:
    5.2
    ya i don't know much about that. i am use to dealing with a gasser lol. i am pretty good at making stuff work tho. i got a overhead console out of a 93 jeep Cherokee in my 93 and a OHC out out of a 93 caravan in my 81. if i can get some decent led light for the 98 caravan OHC that will be going in my 81 but having a hard time finding good leds for a weird light setup.
