coming out of the harness there are 4 wires, one (red) that is the power for the high beam. one blue wire that is the power going to the low beam, and two black wires coming from the center post, one going to the low beam, ground, one going to the high beam, also ground. now, what you do is the following....

Starting with the red high beam power wire. coming FROM the light, cut the wire and splice it into the blue low beam power wire, making it so that one wire runs power to both lights. now, take the ground from the hi beam and connect it the power wire for the hi beam. and that should fix it.

what you did here is change the ground from the middle terminal to old low beam power cable, changed the low beam power to the center terminal. here is a diagram, like i said, the lights are wired for a 9007 bulb, and your truck has a 9004 bulb.



let me know if you have any questions

ok. in my 5.2 Ram 1500 I was checking for current drain on the battery. I have a high drain. I pulled every fuse and found out it is the "50 amp Park Lamp/Horn". I've checked everything from under the dash to along the entire wire harness and all the lights work fine if it's plugged in but there's still a short to ground somewhere. also a few other issues like no power to the code reader port and no fuel gauge.
anyone?


Pearllea

Junior Member
Joined
Jun 2, 2019
Posts
4
Reaction score
0
Location
Wv
Ram Year
2000
Engine
5.9
I have the halo projector lights,I wired them to what loki223 posted,i have no high beams don’t work,high beam indicator stays on,,,,on my light side of wiring it has red and black wire on low beam side it is blue and black,,,,,HELP PLEASE


1500ram12

Senior Member
Joined
Jan 23, 2012
Posts
5,487
Reaction score
2,427
Ram Year
2005
Engine
5.9L Cummins
I have the halo projector lights,I wired them to what loki223 posted,i have no high beams don’t work,high beam indicator stays on,,,,on my light side of wiring it has red and black wire on low beam side it is blue and black,,,,,HELP PLEASE

What headlights do you have and what year is your truck?


2018 2500 6.4L


Pearllea

Junior Member
Joined
Jun 2, 2019
Posts
4
Reaction score
0
Location
Wv
Ram Year
2000
Engine
5.9
I believe there’s a spider brand headlights and my truck is a 2000 Dodge ram 1500 Quad cab four-door sport with a 5.9 engine any help whatsoever would be awesome,my truck I wired the red hot wire from the bulb side of the headlamp to the blue wires coming from the low beam bulb side of the headlamp to create a single power wire source between the low beam and the highbeam and I took the ground wire from the high beam side and connected it to the red and blue wire the lights turn on the blue highbeam indicator on the dash is always on lights won’t go to high beams. There was never any problem with original lights

Last edited:

1500ram12

Senior Member
Joined
Jan 23, 2012
Posts
5,487
Reaction score
2,427
Ram Year
2005
Engine
5.9L Cummins
I believe there’s a spider brand headlights and my truck is a 2000 Dodge ram 1500 Quad cab four-door sport with a 5.9 engine any help whatsoever would be awesome,my truck I wired the red hot wire from the bulb side of the headlamp to the blue wires coming from the low beam bulb side of the headlamp to create a single power wire source between the low beam and the highbeam and I took the ground wire from the high beam side and connected it to the red and blue wire the lights turn on the blue highbeam indicator on the dash is always on lights won’t go to high beams. There was never any problem with original lights

Do you have a test light? I'd pull the lights out use a test light on the connectors coming from the truck to make sure which feed is lows and highs. Can you verify for sure that the colors one the headlights are right. The wiring should be straight forward but the colors most likely will be different from headlight to headlight. Once you get your low's straight then the highs should work. If you still have the same problem put the stock one's back in and verify that everything functions properly still then start testing wires again.

There should be 3 wires

Low's
Highs
Ground

Halo




2018 2500 6.4L

Last edited:

Pearllea

Junior Member
Joined
Jun 2, 2019
Posts
4
Reaction score
0
Location
Wv
Ram Year
2000
Engine
5.9
I am I can at a complete loss I’ve literally done everything that you said to do and it’s all the same so because it was all the same I reverse those wires made no difference whatsoeverThank you so much for trying to help out


1500ram12

Senior Member
Joined
Jan 23, 2012
Posts
5,487
Reaction score
2,427
Ram Year
2005
Engine
5.9L Cummins
Can you take pictures of how everything is wired


2018 2500 6.4L


Cesar592

Senior Member
Joined
Nov 14, 2016
Posts
398
Reaction score
53
Ram Year
2013
Engine
3.6 pentastar
hey how are you long ago install oem projectors in my truck slt 2013 with the harness modified but a few days ago I had a problem with my low beam that was off immediately I realized and thought it was just a molten bulb and replace it with a new but did not turn on after I disconnected the harness and I realize this and now I can not make my low beam work I am really frustrated know that it can cause this problem





Cesar592

Senior Member
Joined
Nov 14, 2016
Posts
398
Reaction score
53
Ram Year
2013
Engine
3.6 pentastar

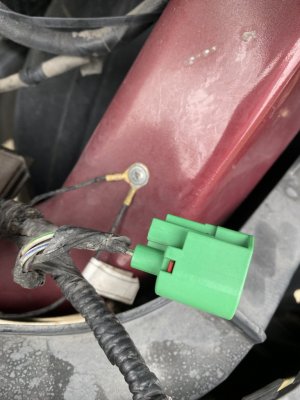

the lights work less the low beam on the driver's side on the connectors I realize that they are burned as if it were a short or I don't know but I'm stuck in this


Cesar592

Senior Member
Joined
Nov 14, 2016
Posts
398
Reaction score
53
Ram Year
2013
Engine
3.6 pentastar

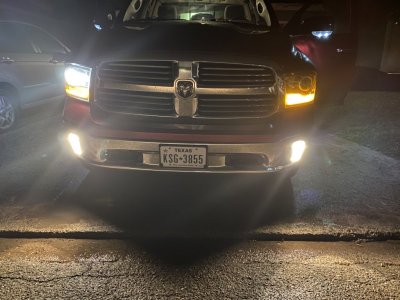

everything works except the low beam
