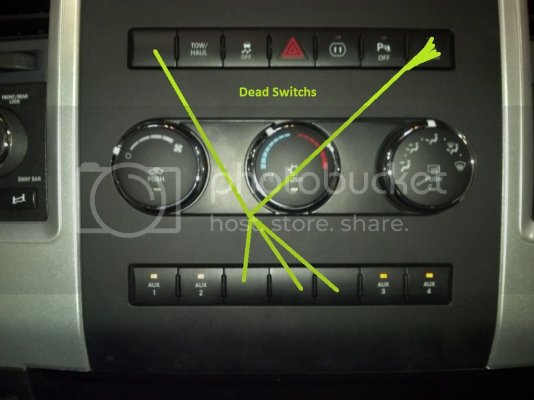

I started this journey to figure out a way to use a factory button to mute my radar detector without velcro mounting a direct wire or having to cut drill or bastardize my truck in order to do so. I wanted a stealthy factory look. I have searched many of threads and every this i ran across was for buying the aux switch panel but all said it can not be modified and if you already have a switch panel installled you outta luck. Well I didnt like those options and sure as hell didnt like the fact that dodge left dead switchs in the strips that can no be used.
Please keep in mind that this does not modify the switch to use the exisiting circuitry.

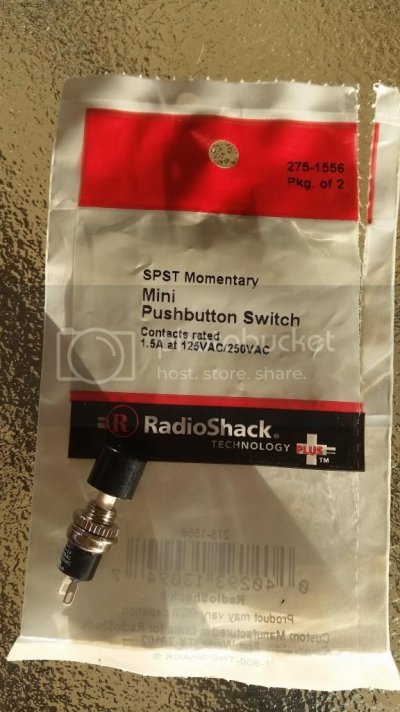

the switch I got from radio shack here is a pic of what i used. I went thru all of their switchs until I found one that would fit. they do come 2 to a pack
I didnt plan on doing this write up until after I got started so you must remove center dash panel/console cover etc on your own.
After unpluging the wire harness's remove the 4 phillips screws that hold the switch panel in
For my purpose I am using the 1st button on the left for the top row of switchs, On mine it is next to the Tow/haul button
remove the back housing by pressing the tabs along the edges and them seperate the board and rubber button strip and set aside
Step 1 . Remove the dead switch cover by using a small angled or curved pick. Place the pick under the edge of the button edge and slighty lift/pry until you get the hole above the lock tab. Do this for both sides and the cover will slide off.
Step 2 . using a razor blad or exacto knife remove these tabs
and these edges in green inside the button cap
replace the button and make sure it moves up and down freely if not remove and make sure the raised edges are now smooth

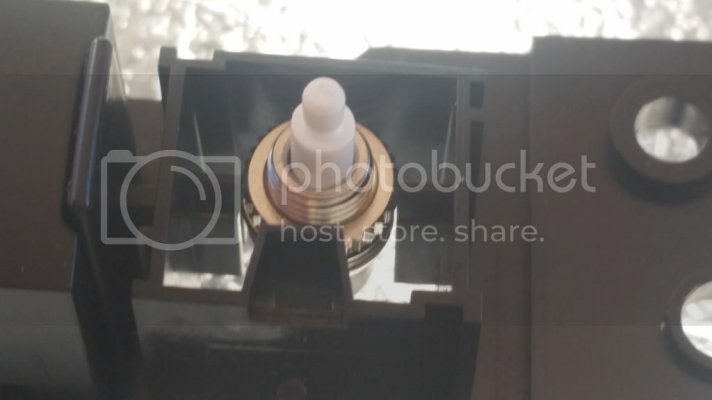

Step 3 . remove plastic cap on the new button from radio shack exsposing the stem, using razor or side cutters remove a little less that half of the smaller portion of the the top of the stem. I suggest you place the new switch down in the housing like in the first picture and remove small increments of the stem until you you can place the oem switch cap on and it depress's and returns to the top position on its own. If you look at picture 1 and compare it to picture 2 below you can see how much i removed which is about 40-45 %. also just plact the new switch in and firmly seat it the tabs in the houseing will hold the switch in place just fine.
step 4
once you have the new switch moving freely remove the new switch and solder your wires to the 2 post on the bottom of the new switch , ( I used ethernet wire for mine as it was the same gauge as what the radar detector uses and since it is only reading resistance to activate the mute button it was fine for my application ) I folded the post to the sides to allow more room inside the housing. once this is done slide the new switch into the housing and place the oem button back on the housing and it should press and release back to the top. you can verify this by placing a volt meter in the ohm position and testing the leads, it should read as a short.
step 5
remove the 2 black conducters from the rubber button strip (tripple check you are removing the ones for the buton section you are working on, if you place the rubber strip over the board it should line up with the open holes over the leds and the board , the board also has several pins the slide thru the connector portion of the housing and the housing has a notch that will only allow it to go together one way.
step 6

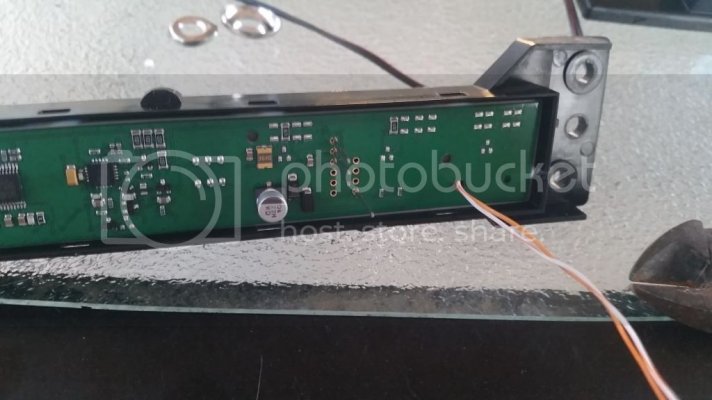

There is a pre drilled hole in the rubber strip that lines up with another hole on the board, place your wires thru here, then while holding the wires slowly slide the rubber strip & circuit board together and slowly slide it into the front housing that holds the buttons
Step 7

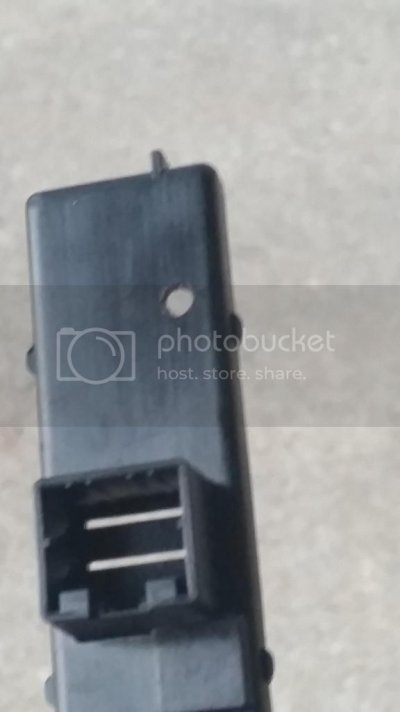

If you tilt the back houseing slighty you will see an indention the size of a 1/8 hole if you flip i over there is tab/post oppisite of it on the other side. this should also line up with the whole on the circuit board that you ran the wires thru . using a 1/8 drill bit from the topside where you see the indention drill a hole on this indentention,

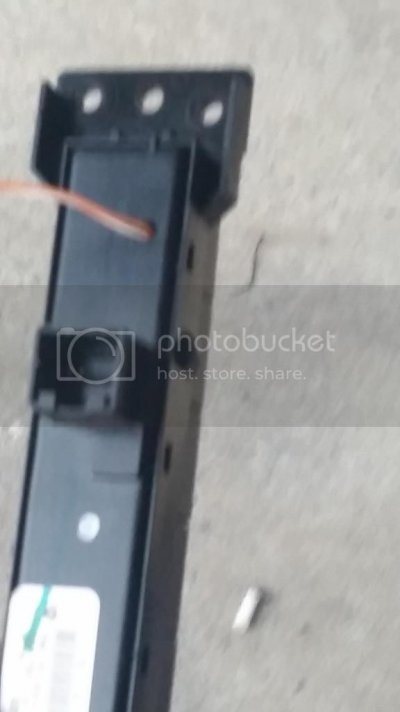

Next slide your wires thru this hole in the back of houseing and carfully reasemble the switch assembly

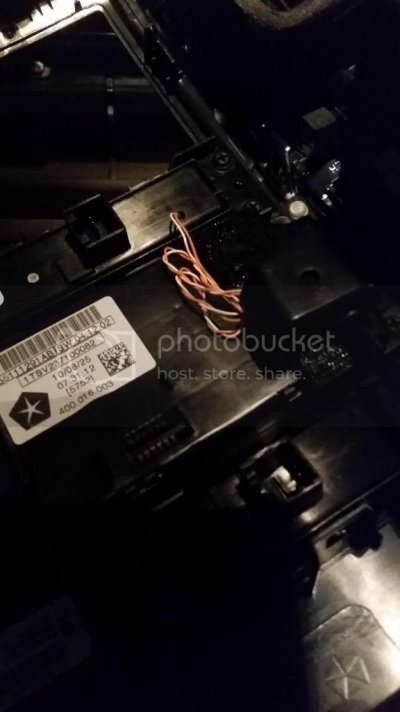

next I reinstalled the switch assembly back into the dash bezel and using the velcro that came with the smart cord attached it to the back of the temp control housing below the switch assembly I just reinstalled.

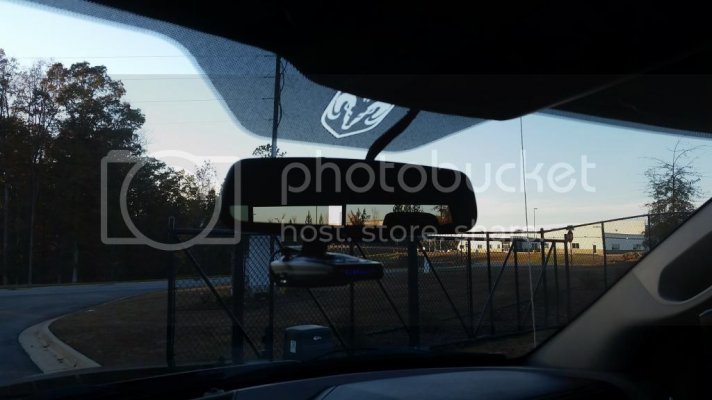

At this point you can wire the fused lead and ground of the smart cord to the location of your liking, I myself tapped into the 12volt ciggerete lighter in the console for the hot and grounded it to the ground screw near the firewall off to the right. I then ran the cable under the dash and up the driver side pillar and stuffed it under the headliner until I got to the mirror. I used the blend mount to install my radar detector to the mirror. The install is super clean and I now have a factory button to control the mute function. now to figure out what to use the remaining dead buttons for.
If you feel I left something out feel free to message me and ill try to help the best i can
