If you work on your panels today, could you check the voltage between pins 3 and 9 with a multimeter if you have one?


Sent from my iPhone using Tapatalk
I can check with my meter but it most likely won't be until tomorrow

Sent from my STV100-1 using Tapatalk


DeereGuy

Senior Member
Preferred Vendor
Supporting Member
Joined
Nov 9, 2016
Posts
623
Reaction score
577
Location
Pittsburgh, PA
Ram Year
2016
Engine
6.7 Cummins
So I am convinced that my tradesman does not supply power on pins 3 and 9. I was trying to get it to work again today and still no luck. I noticed via the schematics for the C5 on the passenger side that pins 7 and 8 were the illumination feed and return for the switch so I depinned those 2 pins and plugged my harness into those two pins and bam I got lights. So now the question becomes is it the door controller or is it some code that needs flashed to enable it. Going to check my door tradesman controller part# against a Laramie and see if they are different.


00R/T

Senior Member
Supporting Member
Joined
Apr 18, 2016
Posts
1,278
Reaction score
808
Location
CT
Ram Year
2013
Engine
5.7 HEMI
So I am convinced that my tradesman does not supply power on pins 3 and 9. I was trying to get it to work again today and still no luck. I noticed via the schematics for the C5 on the passenger side that pins 7 and 8 were the illumination feed and return for the switch so I depinned those 2 pins and plugged my harness into those two pins and bam I got lights. So now the question becomes is it the door controller or is it some code that needs flashed to enable it. Going to check my door tradesman controller part# against a Laramie and see if they are different.



There are only two different door control modules - with and without power folding mirrors. Next time I'm poking around in the BCM I'll see if there are any settings in there for those lights.


DeereGuy

Senior Member
Preferred Vendor
Supporting Member
Joined
Nov 9, 2016
Posts
623
Reaction score
577
Location
Pittsburgh, PA
Ram Year
2016
Engine
6.7 Cummins
There are only two different door control modules - with and without power folding mirrors. Next time I'm poking around in the BCM I'll see if there are any settings in there for those lights.

Thanks 00R/T. I've been considering buying the AutoEngenuity software and if there were settings for these lights that would seal the deal. :)


00R/T

Senior Member
Supporting Member
Joined
Apr 18, 2016
Posts
1,278
Reaction score
808
Location
CT
Ram Year
2013
Engine
5.7 HEMI
Thanks 00R/T. I've been considering buying the AutoEngenuity software and if there were settings for these lights that would seal the deal. :)


The only thing that concerns me is that I've never been able to get the door module settings to take (like the mirror ones). I'll do some experimentation though.


mdxers11

Member
Supporting Member
Joined
Nov 23, 2016
Posts
66
Reaction score
22
Ram Year
2013 Express Flame Red
Engine
5.7 hemi
There are only two different door control modules - with and without power folding mirrors. Next time I'm poking around in the BCM I'll see if there are any settings in there for those lights.


I have to ask a question, perhaps it's stupid. My laramie panels, like the OP's have wires with a plug for the lighting, as do the LED bezels. Why would you cut the plug and either splice or build a custom harness for the door module? I am wondering why the plug is there in the first place? It must connect somewhere on Laramie models and if there is only two door control modules, where is it supposed to connect?


DeereGuy

Senior Member
Preferred Vendor
Supporting Member
Joined
Nov 9, 2016
Posts
623
Reaction score
577
Location
Pittsburgh, PA
Ram Year
2016
Engine
6.7 Cummins
I have to ask a question, perhaps it's stupid. My laramie panels, like the OP's have wires with a plug for the lighting, as do the LED bezels. Why would you cut the plug and either splice or build a custom harness for the door module? I am wondering why the plug is there in the first place? It must connect somewhere on Laramie models and if there is only two door control modules, where is it supposed to connect?



It is my understanding that the trucks with lights in the door have another harness that terminates into pins 3 and 9 of the doors C5 module. This is the harness that I have recreated.


Sent from my iPhone using Tapatalk


00R/T

Senior Member
Supporting Member
Joined
Apr 18, 2016
Posts
1,278
Reaction score
808
Location
CT
Ram Year
2013
Engine
5.7 HEMI
It is my understanding that the trucks with lights in the door have another harness that terminates into pins 3 and 9 of the doors C5 module. This is the harness that I have recreated.


Sent from my iPhone using Tapatalk



Correct. It has a splice and splits to the two light connectors.


DeereGuy

Senior Member
Preferred Vendor
Supporting Member
Joined
Nov 9, 2016
Posts
623
Reaction score
577
Location
Pittsburgh, PA
Ram Year
2016
Engine
6.7 Cummins

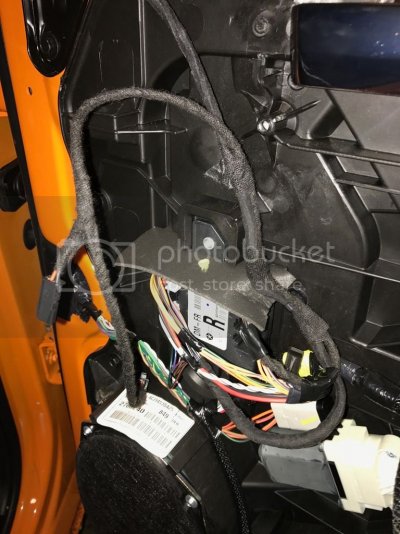

This is what my harness looks like installed before I connect the panels. The short connector goes to the door handle led and the longer one runs across and connects to the map light led connector.



Ram Man

Senior Member
Joined
Jul 1, 2010
Posts
492
Reaction score
116
Location
FL
Ram Year
2013 Sport
Engine
5.7
Hope someone can help me out with an issue I'm having all of sudden...

The lights have been working flawlessly ever since I wrote the write up. I took the truck to the dealer to have my back up camera code flashed yesterday and now the doors don't illuminate. Any suggestion besides take it back to them??

*I have checked the fuses already and everything is okay


Sent from my iPhone using Tapatalk


DeereGuy

Senior Member
Preferred Vendor
Supporting Member
Joined
Nov 9, 2016
Posts
623
Reaction score
577
Location
Pittsburgh, PA
Ram Year
2016
Engine
6.7 Cummins
Hope someone can help me out with an issue I'm having all of sudden...

The lights have been working flawlessly ever since I wrote the write up. I took the truck to the dealer to have my back up camera code flashed yesterday and now the doors don't illuminate. Any suggestion besides take it back to them??

*I have checked the fuses already and everything is okay


Sent from my iPhone using Tapatalk

Wow doesn't that just suck!! I wonder if the flash updated software or changed settings in the BCM which disabled those pins from working. Welcome to my world!!


00R/T

Senior Member
Supporting Member
Joined
Apr 18, 2016
Posts
1,278
Reaction score
808
Location
CT
Ram Year
2013
Engine
5.7 HEMI
Wow doesn't that just suck!! I wonder if the flash updated software or changed settings in the BCM which disabled those pins from working. Welcome to my world!!


That would be my guess. For some reason that option was enabled from the factory but now that they updated it with the "correct" build configuration it was reverted.

This is why I'm reluctant to bring my truck in to get the puddle and signal lamps enabled.


SitKneelBend

Senior Member
Joined
Jan 8, 2015
Posts
9,022
Reaction score
4,694
Location
St. Louis
Ram Year
2014
Engine
3.6 Pentastar
If I'm not mistaken, that's exactly what happened. If you want codes to stick they must be added to your build sheet.

Sent from my HTC One M9 using Tapatalk


Ram Man

Senior Member
Joined
Jul 1, 2010
Posts
492
Reaction score
116
Location
FL
Ram Year
2013 Sport
Engine
5.7
Well, if this happens to anyone else, now you know.


SitKneelBend

Senior Member
Joined
Jan 8, 2015
Posts
9,022
Reaction score
4,694
Location
St. Louis
Ram Year
2014
Engine
3.6 Pentastar
Well, if this happens to anyone else, now you know.
I think it may have already about a month ago in this thread. I seem to remember someone asking why theirs wasn't working.

Sent from my HTC One M9 using Tapatalk


DeereGuy

Senior Member
Preferred Vendor
Supporting Member
Joined
Nov 9, 2016
Posts
623
Reaction score
577
Location
Pittsburgh, PA
Ram Year
2016
Engine
6.7 Cummins
I got them to work today. It's definitely a setting in the BCM. There's an option for the led handle lights and the map lights. I turned mine on today and bang they lit up.


Sent from my iPhone using Tapatalk


Ram Man

Senior Member
Joined
Jul 1, 2010
Posts
492
Reaction score
116
Location
FL
Ram Year
2013 Sport
Engine
5.7
Dealer can't figure out how to turn them back on... can anyone give me a hand?


Sent from my iPhone using Tapatalk


DeereGuy

Senior Member
Preferred Vendor
Supporting Member
Joined
Nov 9, 2016
Posts
623
Reaction score
577
Location
Pittsburgh, PA
Ram Year
2016
Engine
6.7 Cummins
Dealer can't figure out how to turn them back on... can anyone give me a hand?


Sent from my iPhone using Tapatalk



The only way I know to turn them back on is using a tool like autoengenuity to modify the BCM settings. It doesn't surprise me that the dealer couldn't/wouldn't turn them back on. The only thing dealers seem willing/able to do is add a sales code to your vin and reflash the truck. If the sales code isn't available for your vin, then there's nothing they can do.


Sent from my iPhone using Tapatalk


Ram Man

Senior Member
Joined
Jul 1, 2010
Posts
492
Reaction score
116
Location
FL
Ram Year
2013 Sport
Engine
5.7
The only way I know to turn them back on is using a tool like autoengenuity to modify the BCM settings. It doesn't surprise me that the dealer couldn't/wouldn't turn them back on. The only thing dealers seem willing/able to do is add a sales code to your vin and reflash the truck. If the sales code isn't available for your vin, then there's nothing they can do.


Sent from my iPhone using Tapatalk

They let me go back into the bay and check out the witech system they were using to communicate with the truck. Like you said, all they could do is choose from a list of sales codes to add or remove (based on VIN/build sheet I guess) or do random things in the BCM like reflash TPMS sensors and disable remote start.
Unless there are other screens that they need to go into... Man this blows


Rth_2

Junior Member
Joined
Feb 9, 2017
Posts
4
Reaction score
0
Ram Year
2012
Engine
6.7
I just got a set of 2013+ laramie door panels for my 2012 slt.. how could I get these leds to work in my truck I just look in my doors and I don't have the same PIN numbers as u guys do
