    Blow-By Verified – Oil Catch Can R&D, Part 1: That’s…A Lot of Oil

    What do carbon-deposit caked valves, decreased fuel economy, oily intake tracts and inefficient combustion all have in common? The resulting effects of engine oil blow-by. During combustion, the top side of the piston forces combusted gasses, with remnants of fuel and oil past the piston rings, and into the crankcase. This would force the crankcase to become pressurized without some sort of relief, so the content of what enters the crankcase exits the system through a positive crankcase ventilation (PCV) system and gets recycled through the engine via the intake tract.

    [​IMG]

    You may have heard of a device called an air oil separator or AOS. These devices tap into your PCV routing system and are intended to separate the oil vapor from the incoming air. Well-constructed AOS systems can be of some use, but there is one crucial issue here. The separated content is usually routed right back into the engine, in many ways severely reducing the usefulness of the device. The reason they are designed like this is to limit the amount of maintenance the driver needs to do on the car. Many manufacturers have an AOS system built-in with their engines from the factory, but the reality of the situation is that preventing blow-by can be done with much more effectiveness.

    [​IMG]

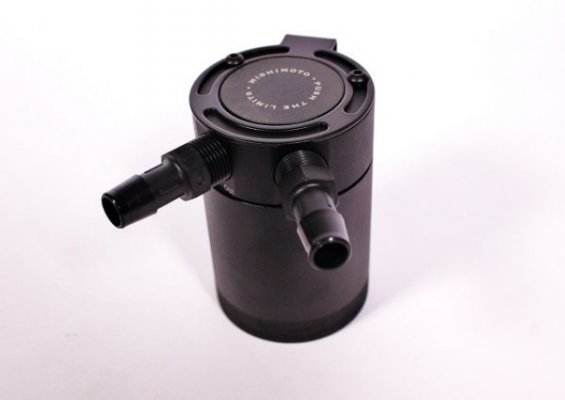

    The way to restrict the blow-by is by containing it. This is done with the use of a catch can. Catch cans tap into the PCV system, just like AOS kits, but instead of anything being recycled, the collected content stays inside of the can. How well these catch can kits perform their duties varies, depending on the design. Luckily, we have, what many consider to be a top-notch design.

    [​IMG]

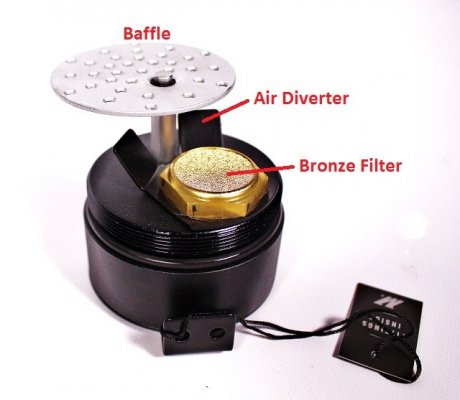

    Our can uses a baffle which does two things: 1) prevents anything caught from spillling back into the ports and 2) helps to condense oil and fuel vapors. Every can we make also has internal air diverters to help increases air turbulence the air, driving a more effective air-oil separation process. Another feature for this can includes a 50-micron bronze filter that helps clean the air going back into your system. The only drawback to this type of design is you’d need to empty the can to drain the contents. It’s another step regarding maintenance, but it’s worth it in the name of engine protection.

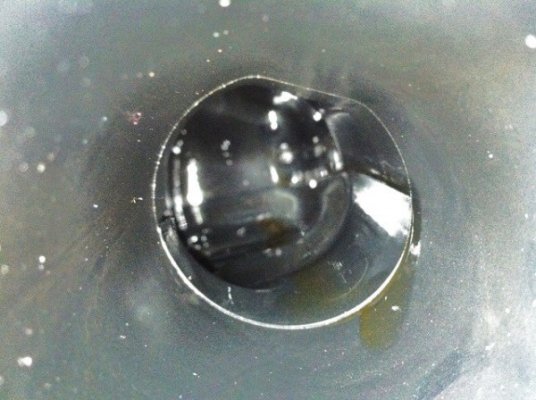

    If you are an owner of a 2009+ Dodge Ram with a 5.7L Hemi, you have probably heard of blow-by issues. A clear indicator of blow-by wreaking its havoc on your engine is finding oil coating the inside of your intake tube or intake manifold. It’s not all bad though. We’re here to help.

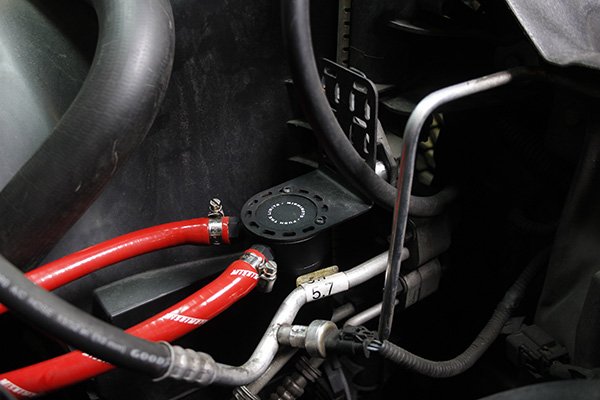

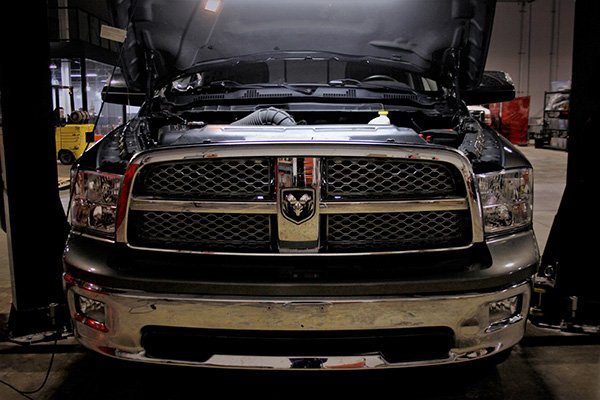

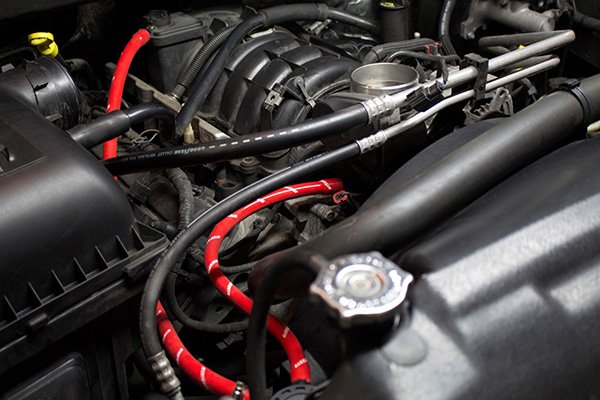

    Now that you have a clear idea of how we tackle the blow-by issue, we want to apply our design to the Dodge Ram. We explored the usefulness of our catch can on this truck. After locating the PCV system and a secure mounting point for the can, we applied a prototype kit.

    [​IMG]

    [​IMG]

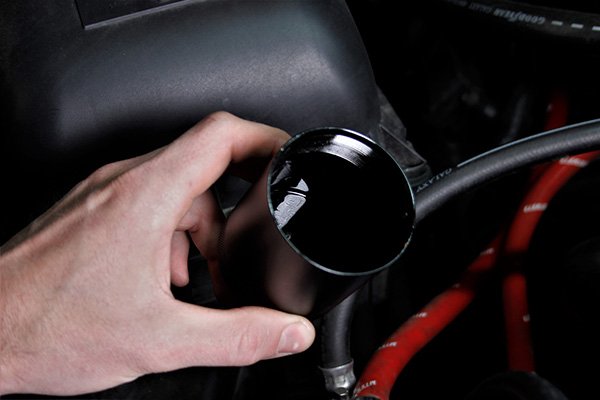

    The driver had planned some long-distance highway driving for the weekend, so it would be the perfect distance for our experiment. When the truck returned to our garage the following Monday, our engineer cracked open the can to see what was caught, and it delivered.

    [​IMG]

    Is the above image a little tough to see? Let me clear that up for you.

    [​IMG]

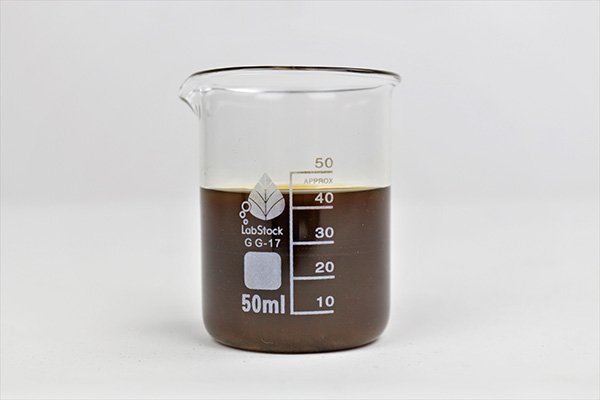

    The near full beaker is the content we collected from our shop 2009 Dodge Ram 5.7L Hemi. In just under 1500 miles of driving, our can nearly hit its 2oz capacity with blow-by content going over the 40ml mark. We’ve never seen a can fill up so fast in such a short amount of time. It was startling to say the least. And this wasn’t a freak occurrence. We’ve had this can mounted on the truck for the past couple of months, and it consistently catches well over 30ml of blow-by when the mileage hits over 1000 miles.

    We know this setup works, we now must make it completely functional. The bracket and lines are both still in the prototyping stage, in the next update, we’ll finalize our design and reveal what the final kit will look like. Thanks for reading!

    -Diamaan

    kada, Stefan N, Hemi395 and 4 others like this.
  2. SyN

    SyN 6.7L CTD Owner

    Posts:
    2,257
    Likes Received:
    2,645
    Joined:
    May 6, 2014
    Location:
    Tornado Alley
    Ram Year:
    2017 4WD - Tow Prep Pkg - Off-Road Pkg - 3:42s w/Anti-Slip
    Engine:
    6.7L CTD
    :favorites13:

    :happy107:

    Just think about the average Hard Working owners whom are working hard everyday to make ends meet.

    Don't think first about big profits & price this within reason!
    You will sell 4X more by giving us a Great Product @ a Fair Price!

    Just don't Over Price this Unit!

    Last edited: May 23, 2017
    kada, CoolestDad, CTD and 2 others like this.
  3. Casper

    Casper Senior Member

    Posts:
    3,959
    Likes Received:
    984
    Joined:
    Nov 13, 2012
    Location:
    Springfield, VA
    Ram Year:
    2012
    Engine:
    5.7L
    Very informative write-up. Confirms what those of us with catch cans have been trying to educate the naysayers about for years.

    One thing that would be really informative is if you had tear-down pictures of hemi heads run with a catch can and run without a catch can , side by side to show some of the negative outcomes from all that blow-by being re-ingested by the intake system.

    That would sell some cans!

    SyN likes this.
  4. Mishimoto

    Mishimoto Preferred Vendor

    Posts:
    32
    Likes Received:
    23
    Joined:
    May 9, 2013
    Ram Year:
    2006
    Engine:
    5.9L Cummins
    Glad you enjoyed the read!

    That would help the cause, but that isn't something we can really do on the Ram we are currently working with. It actually belongs to an employee here! However, I can show you an image of one of our other projects for reference.

    [​IMG]

    [​IMG]

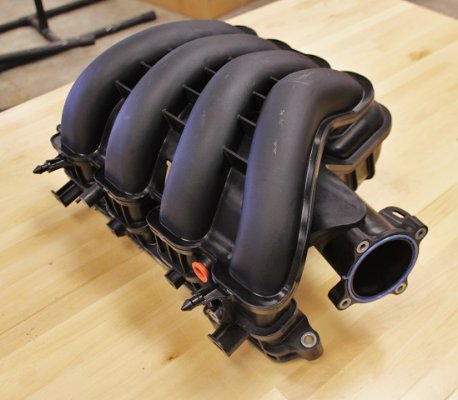

    Above is a shot of an intake manifold we removed for a 2016 Mazda Miata catch can project. This car had just 3,300 miles on the clock, but there was already oil coating the intake manifold! I like showing this because even with a car that is brand new, the effects of blow-by already began taking its toll.
