    Alright, I don't have a computer at home so I've been waiting to get back to to work today to do a full write up of this build. The bumper is yet to be installed on the truck, but it's complete.

    My review on the bumper:

    My initial thoughts of this bumper were slightly different than once I received it. I'm by no means disappointed, but I feel it should be noted by MOVE that if you don't have a ton of experience with welding and fabricating, that you might pay to have someone else build it. I wound up doing the entire thing by myself without my co-worker, and although my craftsmanship isn't top notch, I believe for my first true full bumper build it turned out better than I would have expected for myself to do. The problems I faced were it just didn't....fit. The wings didn't line up with the center section, it took a lot of pressure, bending, and tack welding to get it somewhat straight. I was concerned about it twisting while I was building it, but luckily it is thick enough steel that it still held true to it's shape. If it didn't line up right, then it had some heavy gaps, sometimes up to an inch thick at the ends. So it was a pick your poison deal, either fill the gaps, or tack weld it and bend the crap out of it to fit together. I filled the gaps.

    Would I recommend the bumper? YES
    For the price and ease you can't beat it. I'm extremely happy with the final outcome which I will update here in a second, along with a final outcome of the installation. Does it take some engineering? Yes, but that's the beauty of a DIY bumper, if you don't like how it looks, then change it.

    Final notes:

    For the Sport model trucks, my recommendation is to just order in a non-sport grille. I thought it would be a simple modification, and although the modification to get it work was indeed simple, it doesn't "fit" right. I hope with the bumper painted red to match it hides it a little more, but in the photos below it looks like the truck has an underbite like a bull dog. I followed my own diagram posted on the page before about trimming the bumper, and I can easily access the hood through the gap I made, but fitment wise it isn't 100%.

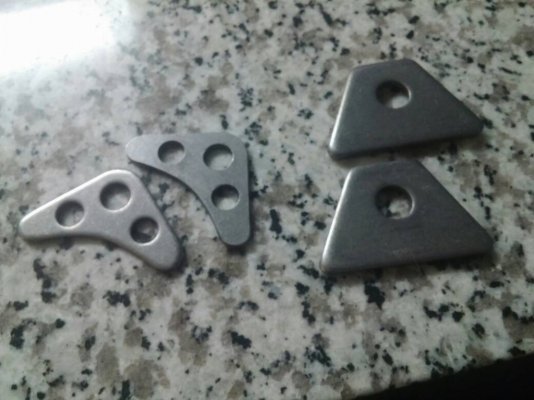

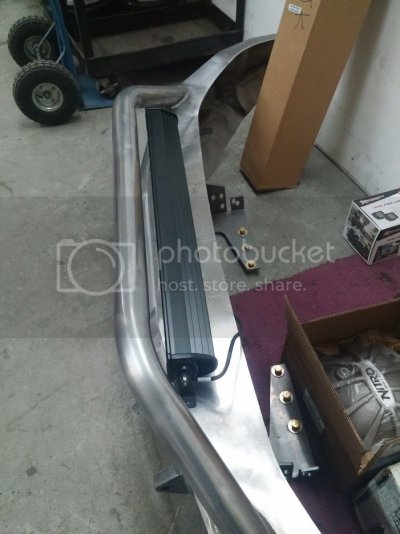

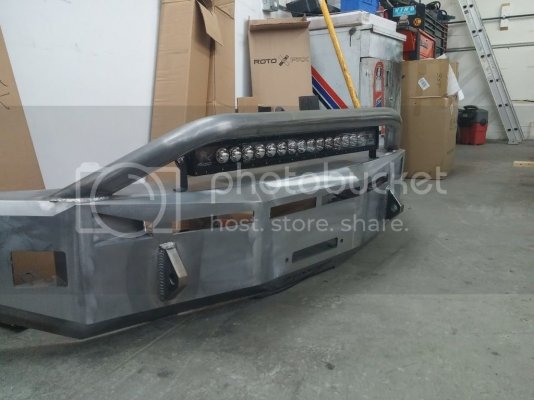

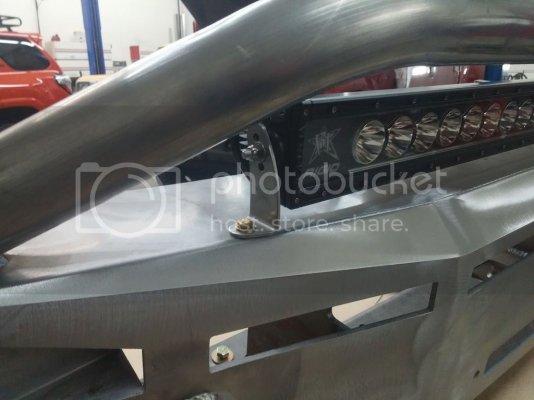

    On a side note that will apply to everybody here, IMO pick your option, don't combine. 20" light bar opening, or winch. I fought for an hour trying to fit the light bar tabs on with the winch and I finally gave up. The winch comes up to high to allow the tabs to be welded where they need to allow the light bar to be centered inside the hole. I wound up scrapping the tabs and have decided to drill two holes in the bumper and mounting the light bar via black bolts on the outside face of it. Might not be the cleanest look, but it was better than having a massive gap at the bottom of the opening.

    For those who have asked about dimensions, I haven't taken any yet. Sorry. However, easier for you to imagine, go outside and look at your frame. The bumper sits flush with the bottom of your frame horns. Measuring on my stock bumper that's in the back of my truck, I gained 3" of clearance in the center section, and as a rough estimate with the way the bumper tucks up on the wings I'd say closer to 5-6" in front of the tires. The bumper DOES not hang out any further than the front fenders, in fact it lines up perfectly with them. I'll get some numbers tonight if anyone still wants them though.

    Enough talk. PHOTO'S!

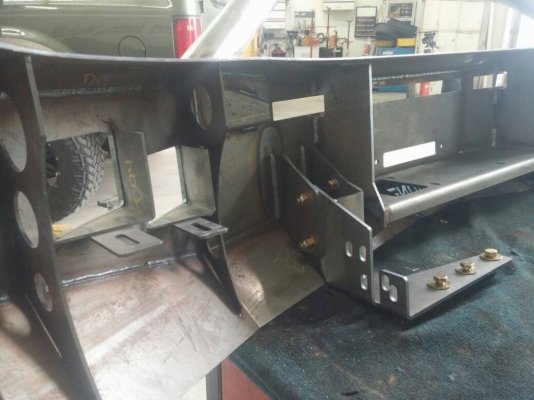

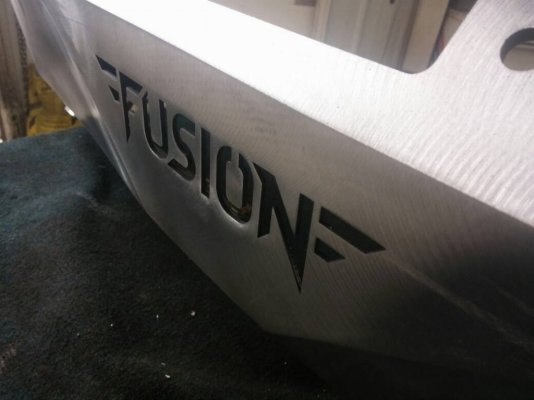

    First endcap welded on.

    [​IMG]

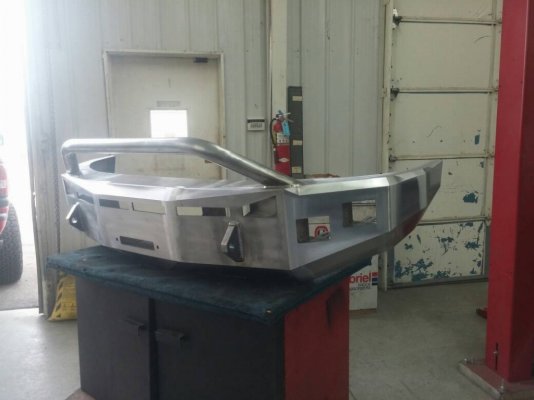

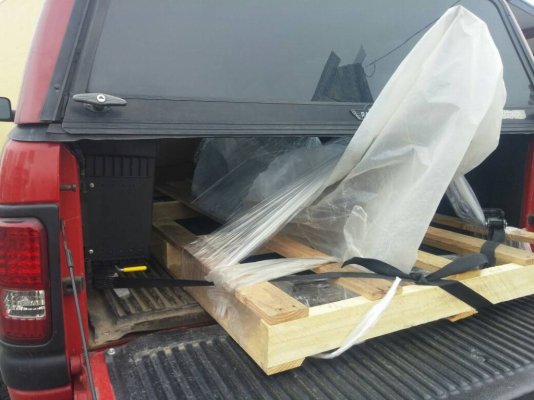

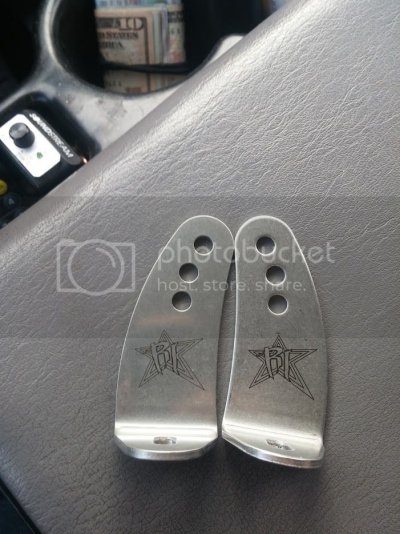

    All the Goodies!

    [​IMG]

    Truck Up For Bumper Removal

    [​IMG]

    Lost something!

    [​IMG]

    [​IMG]

    Inner Wheel Housings Trimmed For Clearance

    [​IMG]

    [​IMG]

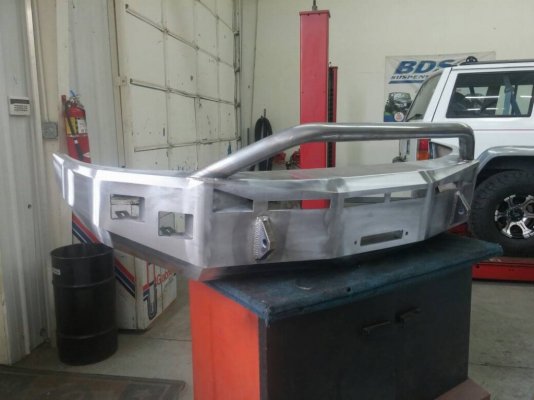

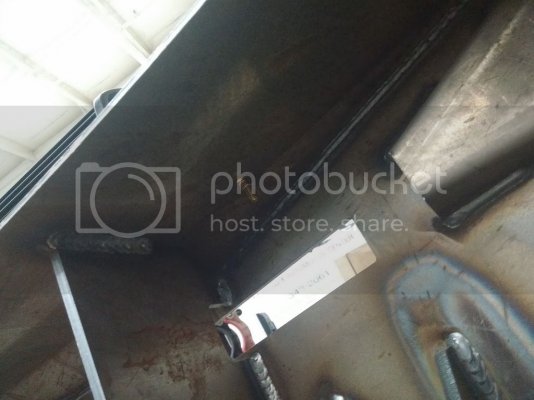

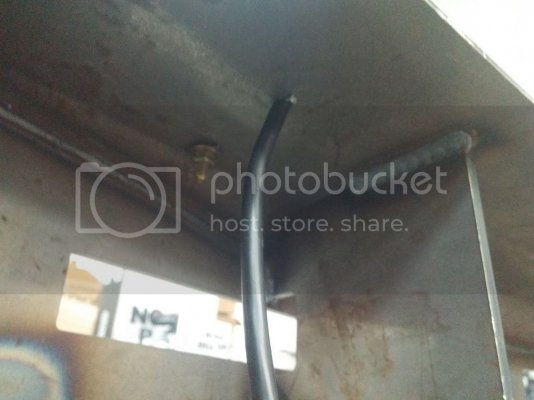

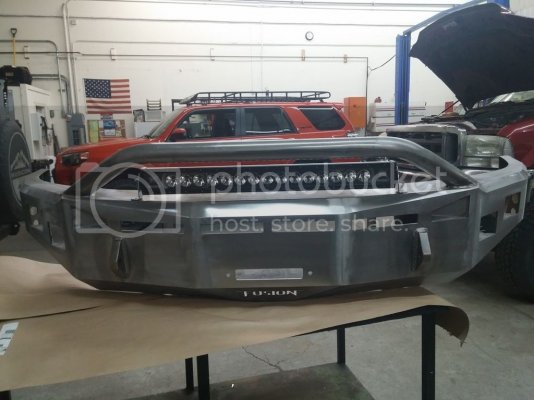

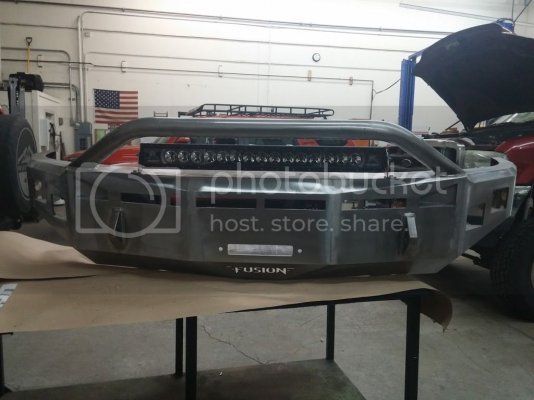

    Mock up to make sure it's straight, square, and flush!

    [​IMG]

    End of Saturday

    [​IMG]

    Moparftw likes this.
  3. NightMares

    NightMares Senior Member

    Posts:
    1,214
    Likes Received:
    822
    Joined:
    Jun 27, 2015
    Location:
    Boise, ID
    Ram Year:
    2001
    Engine:
    5.9

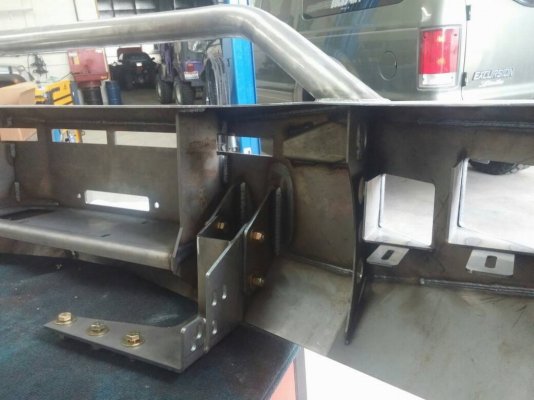

    Start of Sunday: Step One is MOUNT IT UP

    [​IMG]

    [​IMG]

    [​IMG]

    Trimmed for grille clearance!

    [​IMG]

    [​IMG]

    Rear sprayed with Upol Por 15 for rust prevention

    [​IMG]

    Front sprayed with Upol 2k urethene primer

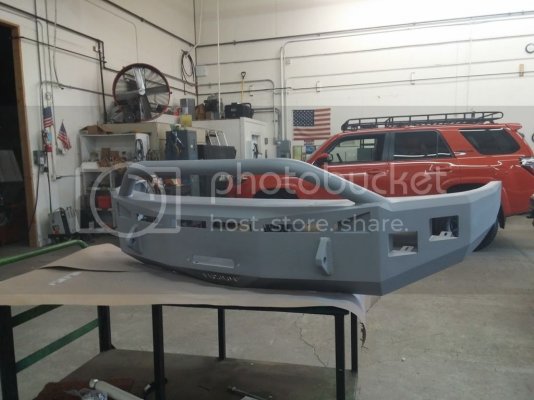

    [​IMG]

    [​IMG]

    [​IMG]

    RAPTOR LINER!

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    And this is how it sits today. I'll check tonight when I'm off if the bumper is setup enough to start assembly. I probably won't be installing it tonight as it's been raining all day and supposed to as well tomorrow, and I want to make sure the liner is properly cured before exposing it to the elements.

    MagSport likes this.
  4. MagSport

    MagSport Senior Member

    Age:
    22
    Posts:
    1,256
    Likes Received:
    499
    Joined:
    Mar 10, 2014
    Location:
    South Carolina
    Ram Year:
    1999
    Engine:
    5.9
    Hell yeah that looks great Nightmares. This definitely looks like something I'll have to consider while I'm at home next summer. Good work and great write up!

  5. NightMares

    NightMares Senior Member

    Posts:
    1,214
    Likes Received:
    822
    Joined:
    Jun 27, 2015
    Location:
    Boise, ID
    Ram Year:
    2001
    Engine:
    5.9
    Thanks bud! I can't wait to get it assembled and installed. I talked to my co-workers at my shop and they told me it's most definitely dry, so tonight I'm going to mount the winch and then throw the bumper on the truck. I'll mount and wire the lights later this week or this weekend, but tonight is the only free time I've got to do the big part which is install and alignment. So, I'll be updating with pictures tonight once it's on.

  6. NightMares

    NightMares Senior Member

    Posts:
    1,214
    Likes Received:
    822
    Joined:
    Jun 27, 2015
    Location:
    Boise, ID
    Ram Year:
    2001
    Engine:
    5.9
    Got the bumper and winch installed last night. All that's left is to get the lights in and get everything wired up. I think it turned out alright, although color match wise I feel the bumper looks just a little more...pink. But eh, can't expect perfection on a bed liner.

    Still got some final adjustment to do on the bumper alignment wise. Sitting flush on the drivers side at the fender, has a slight gap on the passenger side. Thinking I'll drop the drivers side down to match that way I got some space in case I come down on a rock or something.

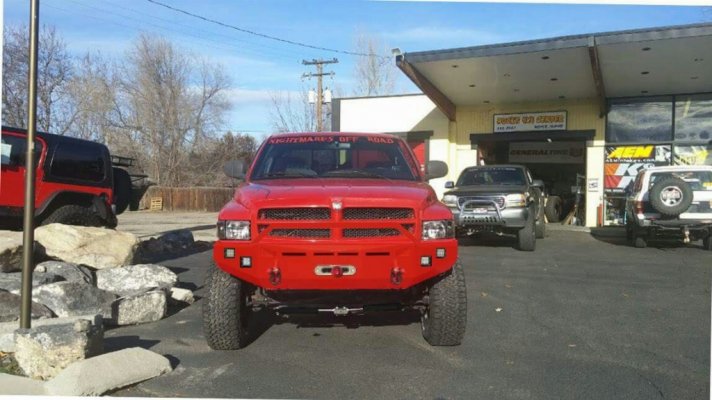

    Paint match didn't help the underbite going on with the grille, so come the time I do my aftermarket hood I'll be ordering in a non-sport grille in black to have painted to match everything. It's not too bad with the sport grille, in fact I think it looks pretty mean or "Pissed Off" and it turned out better than I was expecting it to with the red, but it still just isn't quite right.

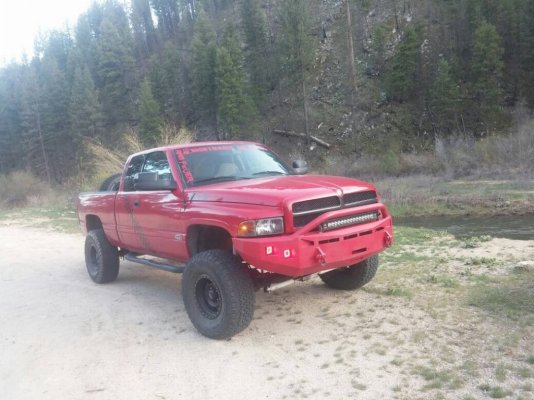

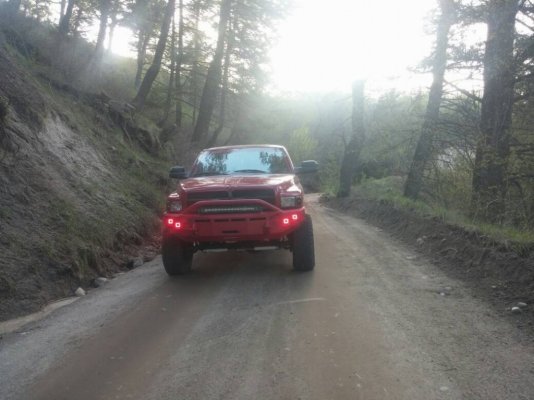

    Anywho, here's the 95% final outcome.

    [​IMG]

    [​IMG]

    [​IMG]

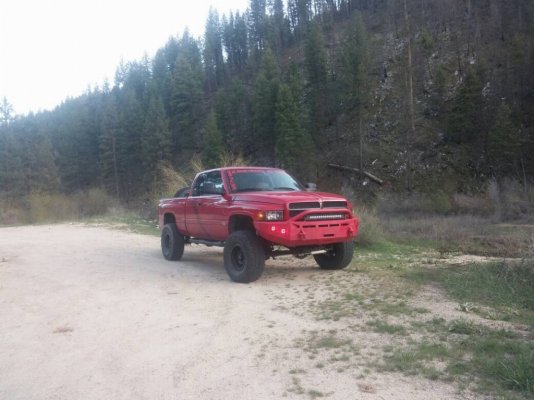

    Better view of how it will look once everything gets re-adjusted
