Stealth sub box

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

rennaissanceman

Senior Member
Joined
Nov 1, 2011
Posts
264
Reaction score
4
Location
Tampa, FL
Ram Year
2004
Engine
Hemi 5.7
How does it sound when it's mounted like that?

Sent from my SCH-I535 using Tapatalk 2

OP
OP
G

griffo

Member
Joined
Aug 6, 2010
Posts
34
Reaction score
2
Location
Florida
Ram Year
2001
Engine
5.2
How does it sound when it's mounted like that?

Sent from my SCH-I535 using Tapatalk 2

it sounds great with the down fire the sound fills the truck from all over its not like you have the sub right in your ear. i know pioneers arent the best speakers but if the box is built right you can make just about any speaker sound good!


oilfieldjosh

Junior Member
Joined
Jul 18, 2012
Posts
18
Reaction score
0
Ram Year
2001 Dodge Ram 1500 4x4
Engine
5.9L 360ci Magnum

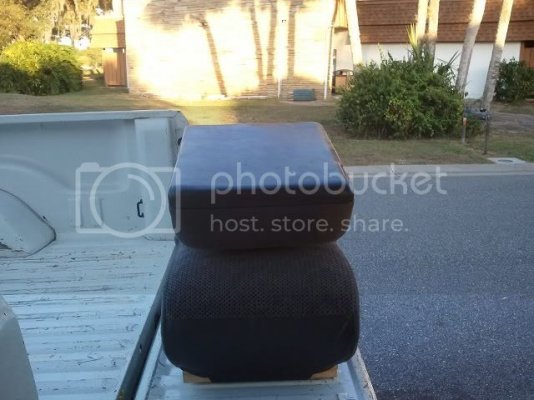

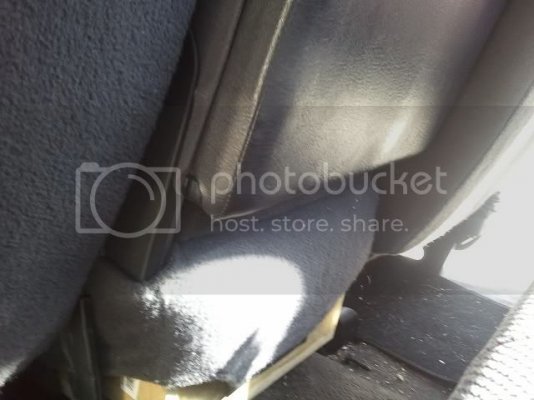

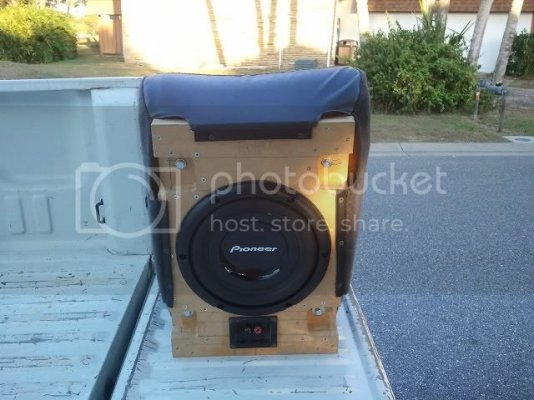

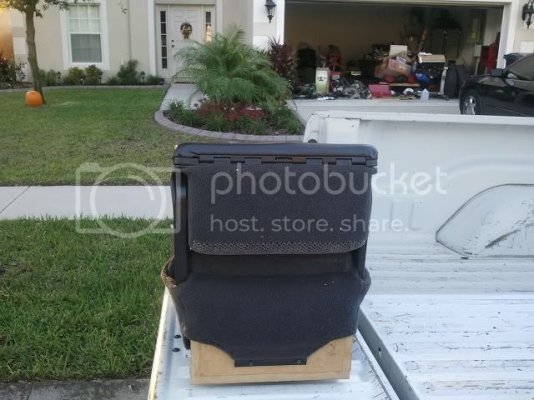

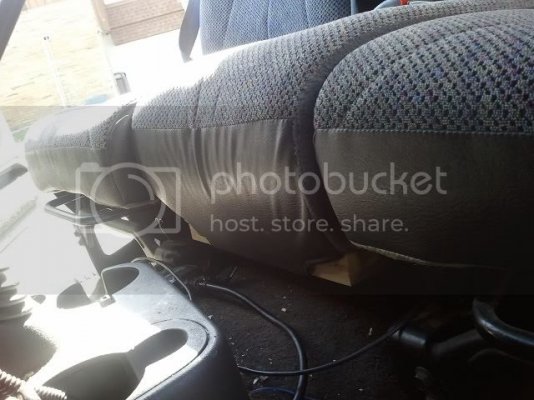

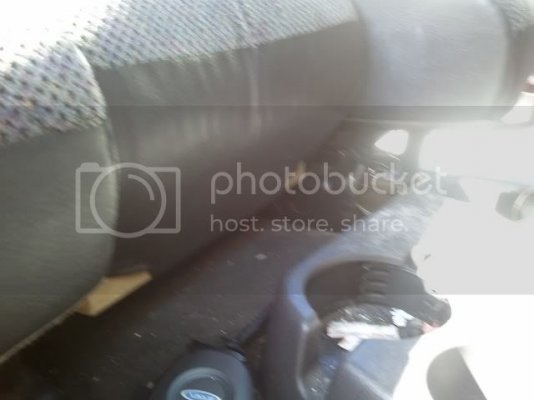

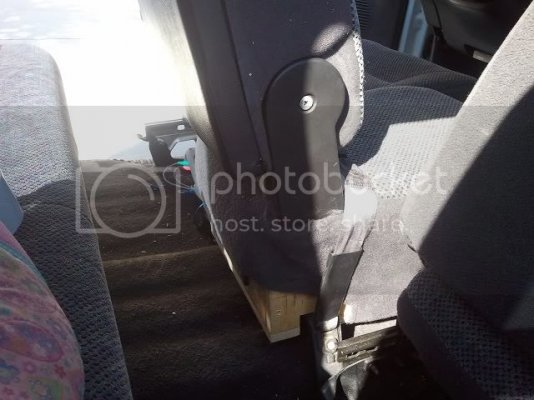

I made this sub box a while ago and thought i'd share it with you











did you take any of the dimensions down? I would love to know being I have the same yr model and would love to steal this idea from you !!! That is a helluva nice box and a great job on the install!!


Pushrod91

Senior Member
Joined
Jul 24, 2012
Posts
166
Reaction score
16
Location
Ramona Ca.
Ram Year
1997
Engine
318
Nice!! I so love this idea.

Sent from my DROID RAZR using Tapatalk

OP
OP
G

griffo

Member
Joined
Aug 6, 2010
Posts
34
Reaction score
2
Location
Florida
Ram Year
2001
Engine
5.2
Post these in the members pics section too!

I don't rember the dimentions but I can measure it again.

I found the deminsion I needed by the speaker requirements. The pioneer speaker I used required like 1 cubic foot of air space and I built the box deeper in front then the back and I had to cut out some of the foam in the seat cushion to fit it. I think I did a post on it on another forum I'll see if I can find it and post a link

Sent from my SAMSUNG-SGH-I727 using Tapatalk 2

OP
OP
G

griffo

Member
Joined
Aug 6, 2010
Posts
34
Reaction score
2
Location
Florida
Ram Year
2001
Engine
5.2
did you take any of the dimensions down? I would love to know being I have the same yr model and would love to steal this idea from you !!! That is a helluva nice box and a great job on the install!!

I started with going to the junk yard and buying a center seat for $15 (I didn’t want to mess up my seat if it didn’t work).
I unbolted the armrest from the bottom of the seat and took off the seat cover. The metal frame just slips out of the cushion.
Then I cut out all but about ¾ of an inch on the sides and top of the seat cushion from the bottom side.
I knew I needed at least .6 cubic feet for the pioneer subwoofer that I was using (the speaker range was .6 to 1.2 cubic feet).
I measured the width that I needed by measuring the distance between the arm rest hinges (13 inches) the longest length I could go without cutting the seat cover was 19 inches so the depth I needed was 8 inches to make .75 cubic feet.
I went to home depot and got a 2’x4’x3/4” MDF sheet and had them cut out the pieces (don’t forget to have the front and back pieces cut to 11.5 wide 6.5 high the total box size is 13x19x8) $11. Keep all the extra pieces you will need some of them for the cutouts on the sides.
I glued and screwed the front back and sides and just put 2 screws in the top and bottom (make sure you pre-drill all the screw holes). I used 2 1/4 inch wood screws with ¾ flat shanks so the pieces pull together correctly $3.
Place the box in the cushion and seat cover the put it in the truck to mark where you need the cutouts.
I cut 8 3”x4” blocks from the extra pieces and screwed 2 to each cutout area leaving at least ¾ inch overlap.
For the next part I used a router but I’m sure there are other ways to do it. I cut out 1.5 inches deep from the bottom of the marked areas.
Went to radio shack and got the speaker terminals $4.99. I cut that hole out with the router use silicone sealer here
Glue and screw the bottom on then glue and screw the blocks.
Bring it back out to the truck and mark the holes for mounting. I used 5/16 t-nuts for the mounts (box of 25 $6). You can drill holes for the t-nuts anywhere in the marked area on each cut out.
Cut the hole for the speaker in the center of the bottom of the box with a router if you have one it’s easier than a jig saw. Pre-drill the holes for the mounting screws.
I used some 10 gauge wire I had in the shop and got some wire ends and crimped and soldered them on the wire. I used the terminals with the hole in the middle and screwed them to the post on the terminals.
Now is a good time to seal the bottom and sides of the box with silicone $6. Make sure you wait at least 24 hours to mount the speaker after using silicone sealer the fumes will destroy speakers. So let it completely cure first.
It’s time to drill the holes for the armrest, the trick to this is the bottom of the hinge should be parallel to the bottom of the box (make sure you leave enough room for the t-nut fit from the back wall when you drill the top hole on each side). I forget the exact measurements of where the holes go. If you can’t figure it out I can pull the speaker out and measure it again.)
Now glue and screw the top of the box let it dry and seal it with silicone let it cure.
Now hookup and mount the speaker. I went to ace and got rubber ¾” weather strip (don’t get the foam it’s not as good) $4. Put the weather strip around the edge of the speaker cutout
Put the cushion in the cover and the box in the cushion. Mount the armrest to the box and install the stealth subwoofer.
I got the speaker I used from Wal-Mart for $39.
I have an extra foam cushion that I can cut out and take pictures if anyone needs me to
You should be able to build the box in a couple of hours and mount the speaker and install it the next day

Last edited by a moderator:

wermbang

Senior Member
Joined
Jun 29, 2010
Posts
9,724
Reaction score
213
Location
Iowa
Ram Year
2001 Off Road
Engine
5.9L V8 Sport
Yeah yours came out way better than mine.

What size sub did you go with? Mine has a 12, and I used the brace from the bottom part of the seat so it bolted back up factory. With the 12 it does not fit inside the brace, but with a 10 would sit perfect

OP
OP
G

griffo

Member
Joined
Aug 6, 2010
Posts
34
Reaction score
2
Location
Florida
Ram Year
2001
Engine
5.2
Yeah yours came out way better than mine.

What size sub did you go with? Mine has a 12, and I used the brace from the bottom part of the seat so it bolted back up factory. With the 12 it does not fit inside the brace, but with a 10 would sit perfect

I used a 10 and mount to to the center seat brackets

Sent from my SAMSUNG-SGH-I727 using Tapatalk 2


wermbang

Senior Member
Joined
Jun 29, 2010
Posts
9,724
Reaction score
213
Location
Iowa
Ram Year
2001 Off Road
Engine
5.9L V8 Sport

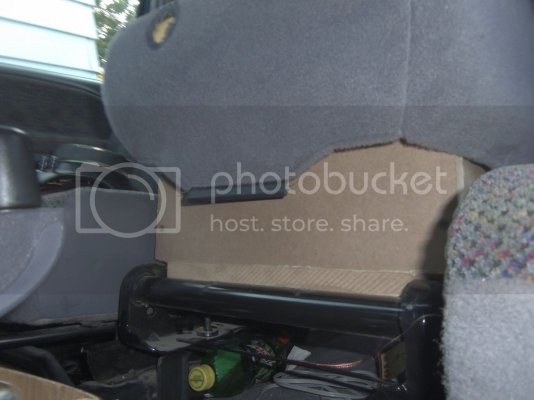

Here is mine, with the 12 it has to sit on top of the brackets. I also have not removed any of my foam.

I have a bunch of board left so gonna make a couple for some 10s though, just cause it looks cleaner being more hidden, probably base it off your plans.
