2006 Dodge Ram SRT-10 radiator upgrade

Alphazulu3

Junior Member
Military
Joined
Mar 4, 2022
Posts
4
Reaction score
4
Location
New Mexico
Ram Year
2003. 2006
Engine
5.7 and 8.3
So I have a 2003 Dodge Ram with the 5.7 Hemi. I also have a 2006 Dodge Ram SRT-10 with the Viper engine. My 2003 was always overheating under acceleration and towing. I got a super duty aluminum radiator off eBay and ever since then it's been cool runnings. I just bought my SRT-10 in December. it's overheating the same way my 2003 would overheat before I done the radiator upgrade. The stock radiator is just a two core. I want a three or four core radiator. I bought a 3 core radar radiator on Amazon and the guy sent me a two core. Seller said...Ill give you a 20 bucks discount if you keep it. I said no and reported him as a rip off.

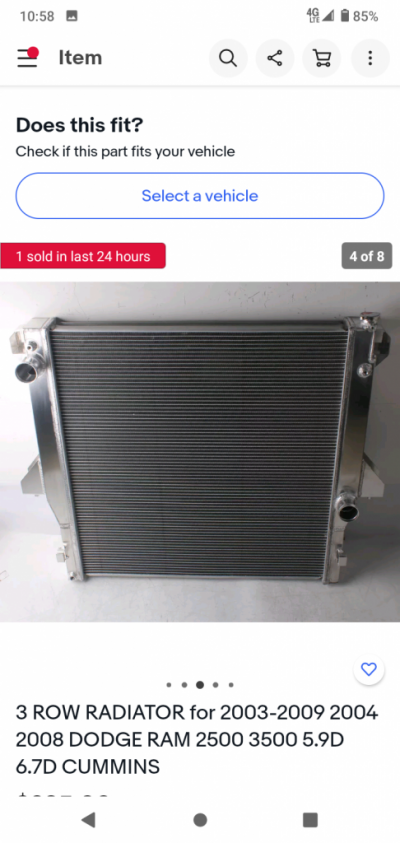

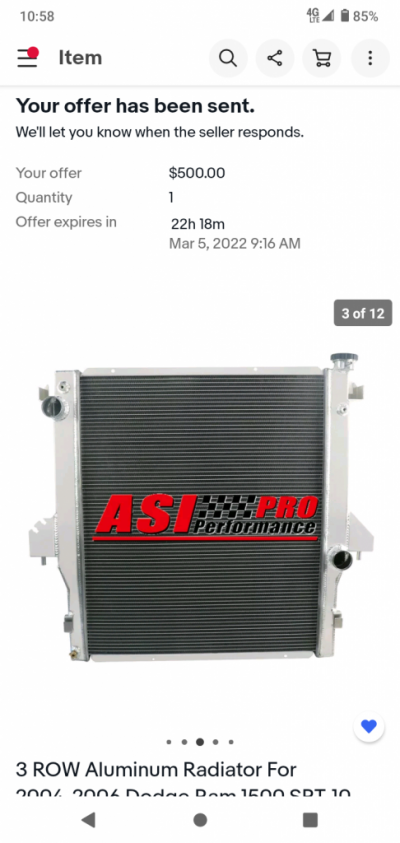

I've been looking at the pics online. does anyone know if a Cummins radiator is the same as an SRT-10 radiator. They appear the same but I can't find any dimensions. I live in a hot part of the country and cooling the mechanics is number one priority.

I posted a few pics. The last one is of my '70 Challenger that is really nice... I think


Attachments

  • Screenshot_20220304-105837.png
    419.2 KB · Views: 4
  • Screenshot_20220304-105820.png
    366.5 KB · Views: 4
  • Screenshot_20220206-192520.png
    542.4 KB · Views: 4
  • Screenshot_20220225-070634.png
    677.1 KB · Views: 4

HemiLonestar

Senior Member
Military
Joined
Jun 1, 2012
Posts
5,311
Reaction score
2,368
Location
MD
Ram Year
2003
Engine
5.7 hemi
Your Challenger is very nice, you should post more pics in the "Other vehicles' section.
I can tell you they are very different part numbers. Does look similar, though I'd
These are what the SRT-10 guys generally go with (there's three links there, the forum does weird stuff sometimes):
Sent you a pm.

OP
OP
A

Alphazulu3

Junior Member
Military
Joined
Mar 4, 2022
Posts
4
Reaction score
4
Location
New Mexico
Ram Year
2003. 2006
Engine
5.7 and 8.3
I did put in a 160 thermostat and I also have a degree in air conditioning and refrigeration. Through my troubleshooting I realize the stock radiator cannot handle the heat output under power or a heavy load. thank you for the links.
I have checked those out sites in the past. the $1,600 radiator is nothing special but the roar Radiator is a little more reasonable. The stock radiator is way under engineered for the thermal output of that engine.


ur_mom

Junior Member
Joined
Jul 9, 2021
Posts
1
Reaction score
0
Location
us
Ram Year
2018
Engine
cummins 6.7
If you power steering pump is going out the fan wont run on the high speed. My truck would start to get hot in traffic.


BadAzp

Junior Member
Joined
May 7, 2022
Posts
15
Reaction score
7
Location
Las Vegas
Ram Year
2005
Engine
505
Stock srt10 radiator is fine, even towing.
Fan system is hydraulic off the ps system, if its low on fluid or if the electrical connector on pass side of fan is loose then the fan wont go to high when ac is onnor temp goes up.
A 160 tstat does no good if the fansvarent tuned to come on earlier (stock is 190+, coolant will flash to 205-210, this is NOT overheating)
If you have the fan come on too early it will delay the computer required minimum temp of 180-184 causing a cel
