2012 ram backup camera

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

mbrady

Junior Member
Joined
Jun 16, 2024
Posts
3
Reaction score
0
Location
canada
Ram Year
2012
Engine
5.7 Hemi
Hello I need the pin out for the video input to the factory video screen with no nav option
I have a 2012 ram 1500 with a 430 RBZ stereo/display

Last edited:

GTyankee

Senior Member
Supporting Member
Military
Joined
Nov 2, 2020
Posts
10,514
Reaction score
13,699
Location
El Cajon Calif. 92021
Ram Year
2016
Engine
3.0 ecodiesel
just curious, does the radio screen change images, as you press some of the buttons ?

I have forgotten things about the Chrysler MYGIG radios

I remember that my 2009 Dodge Ram RER radio, could play movies on CD, but only in Park

the 430 and 430N are not the same units. The 430 (non-nav) is made by Mitsubishi where as the 430N and 730N are made by Harmon.

Last edited:

GTyankee

Senior Member
Supporting Member
Military
Joined
Nov 2, 2020
Posts
10,514
Reaction score
13,699
Location
El Cajon Calif. 92021
Ram Year
2016
Engine
3.0 ecodiesel
This may help some what
I believe that in the photo, you should notice the empty white connector & the yellow male connector.
IF i am not mistaken, that is for the tailgate camera


You will have to verify it yourself

OP
OP
M

mbrady

Junior Member
Joined
Jun 16, 2024
Posts
3
Reaction score
0
Location
canada
Ram Year
2012
Engine
5.7 Hemi
just curious, does the radio screen change images, as you press some of the buttons ?

I have forgotten things about the Chrysler MYGIG radios

I remember that my 2009 Dodge Ram RER radio, could play movies on CD, but only in Park

the 430 and 430N are not the same units. The 430 (non-nav) is made by Mitsubishi where as the 430N and 730N are made by Harmon.

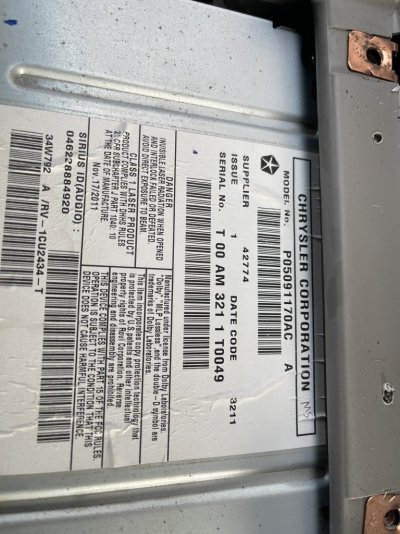

I do not think the image on the screen changes. I put up some photo's to help identify the unit, thank you for your reply


Attachments

  • IMG_1574.jpeg
    99 KB · Views: 4
  • IMG_1484.jpeg
    174.8 KB · Views: 4
