4th Gen Crew Cab Seats in a 3rd Gen Quad Cab

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

xtremewlr

Senior Member
Joined
Feb 12, 2015
Posts
809
Reaction score
354
Location
Tucson, AZ
Ram Year
2004
Engine
Hemi

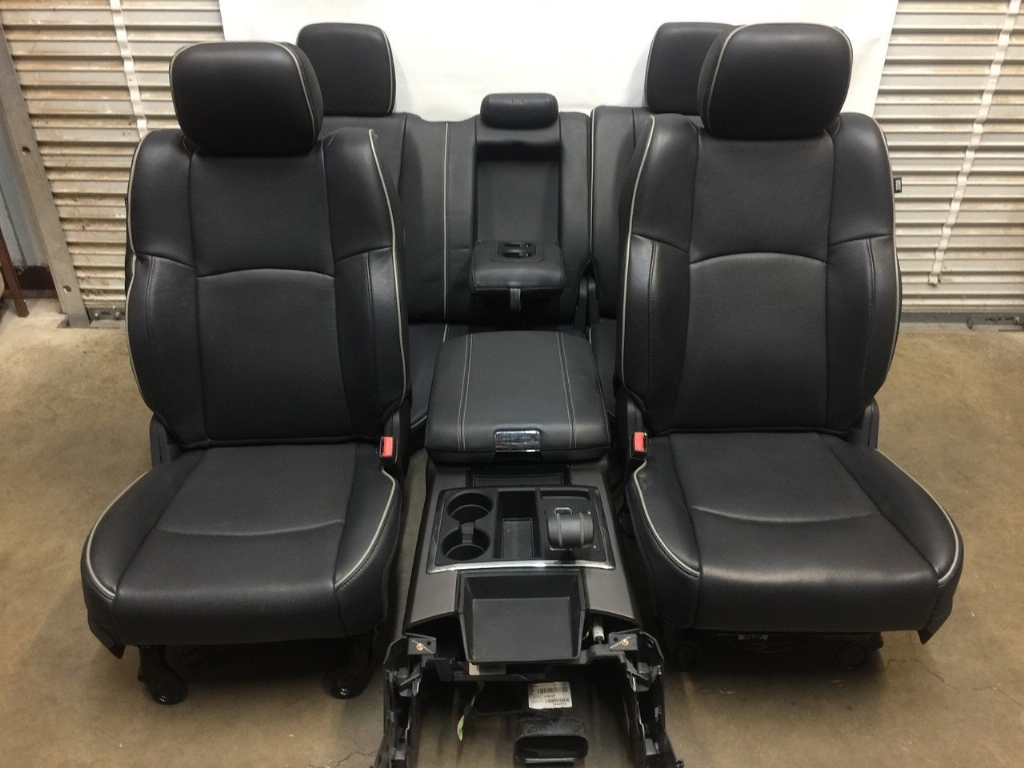

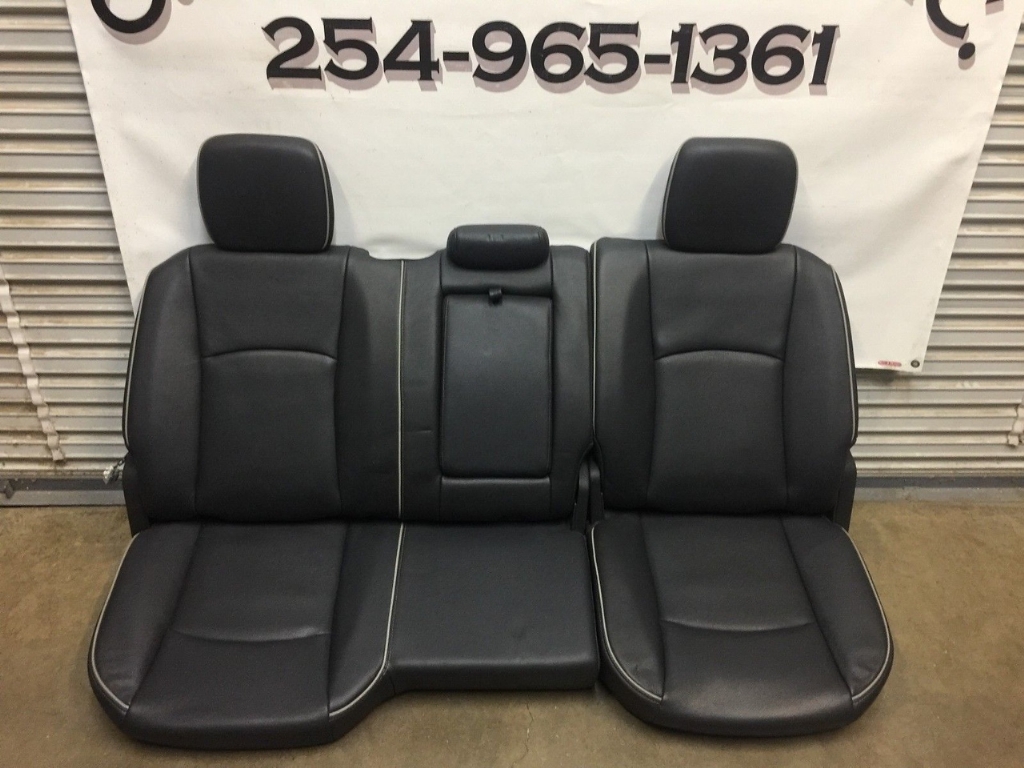

I bought some 2012 Limited Edition, full leather, full power (driver and passenger), heated and cooled, crew cab seats to replace the stock cloth seats in my 2004 QC. This thread will detail my installation and hopefully help anyone out looking to do something similar.

The front seats are a direct bolt in with some work on the wiring to get the power, seat heater and the cooling to work.

Rear seats require some addition modifications to work since the seats I bought were from a Crew Cab.

I didn't get the console show in the pic here, I don't want to try and install that in my truck, I want to retain a jump seat. I found a new jump seat with cup holders on ebay from a 2014.

All seats, including the jump seat if you go that route, are the same from 2009 to 2017 from what I have found. There might be some wiring differences between the years but they otherwise are interchangable. 4th gen front seats are a direct swap into the 3rd Gen (except wiring).




OP
OP
xtremewlr

xtremewlr

Senior Member
Joined
Feb 12, 2015
Posts
809
Reaction score
354
Location
Tucson, AZ
Ram Year
2004
Engine
Hemi
Rear Seat Installation

As I said before, the seats I got were from a crew cab. The CC rear seat brackets, where they mount to the floor, don't fit in a QC. Some people have cut about 2" off the back part of the mounting brackets and then drill new mounting holes for the rear bolt. If you have a QC and want to try and resell your old clotch seats, this might be the better option as it leaves your original rear seats fully intact. I wanted to keep the QC brackets because the fit was guaranteed, I didn't run the chance of cutting off too much and it also looks like at least one of the CC brackets was bent, probably from shipping. Here's a comparison shot of the CC and QC rear seat brackets, showing the longer floor mount on the CC ones.

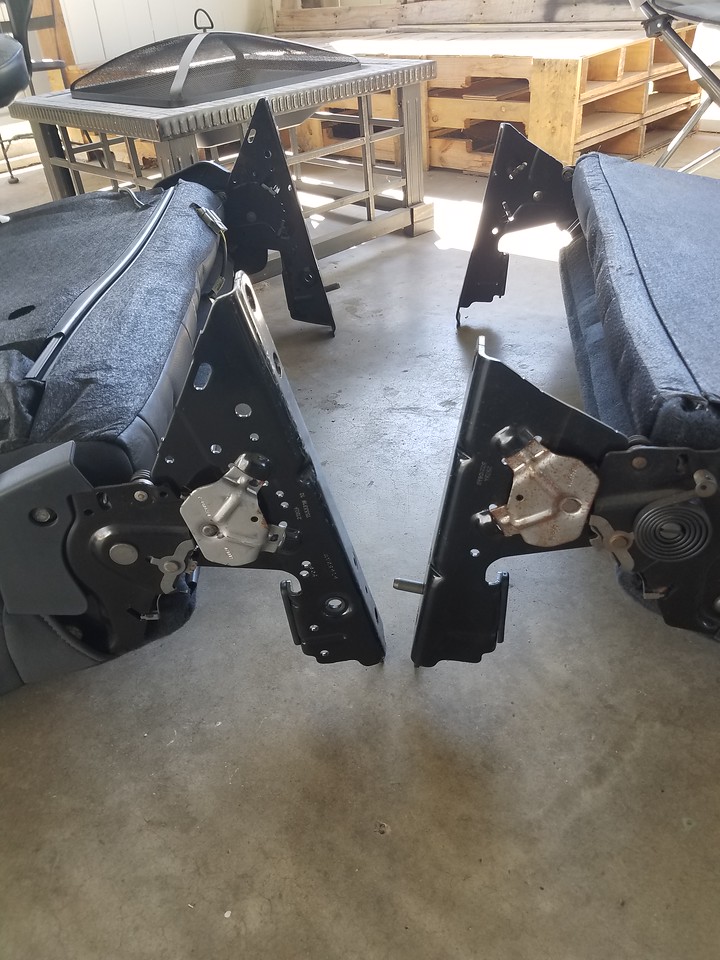

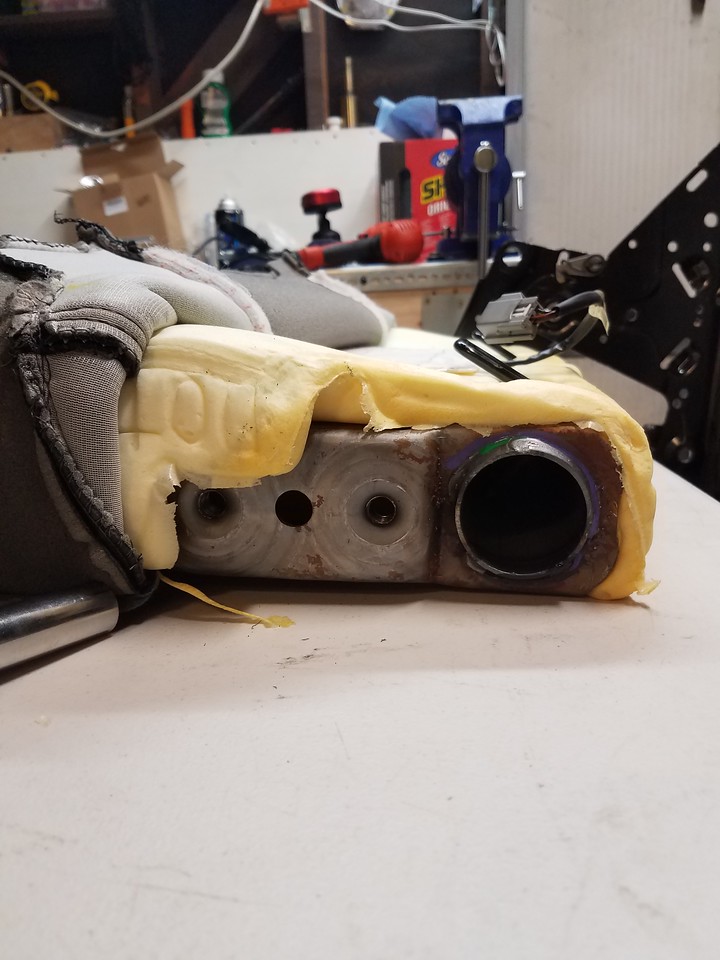

I took the rear seats apart to swap the brackets. I started by taking off the seat back from each seat. Keep all the bolts from the new seat, the bolts from the original cloth seat are smaller and won't work. To remove the seat cushion (bottom), you have to peel the seat cover back to expose a hidden bolt on each side holding the mounting bracket in place.





The 3rd gen brackets still require a little modification to work. You need to enlarge the mounting holes for the seat cushion to 1/2" and elongate one of them. That's for each bracket. Once you do that, there is also a plastic sleeve/spacer that needs to be swapped over from the CC brackets to the QC brackets to mount the seat back. Easily done with a small screwdriver.

This is the spacer off the 4G seat for the seat back.

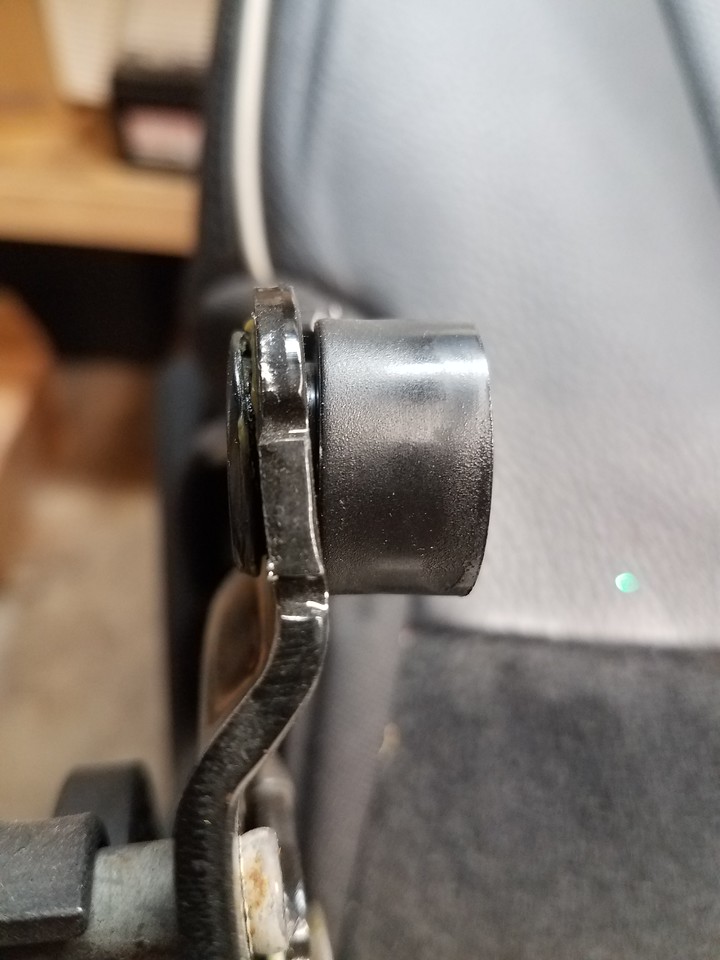

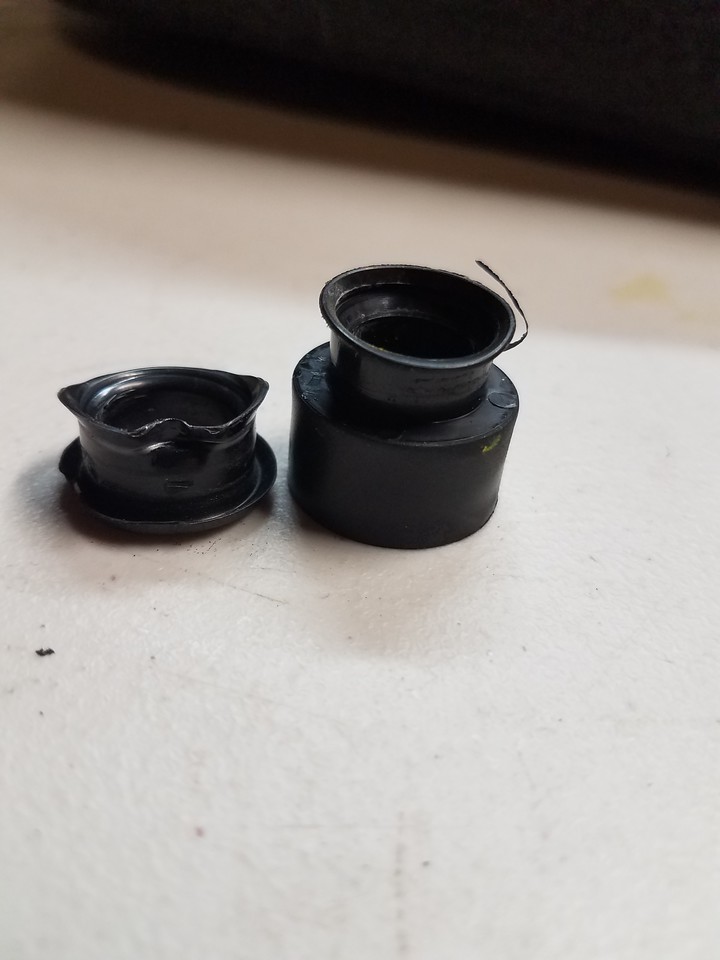

This is the plastic bushing for the seat back on the 3G seats. Remove this and replace with the 4G spacer.



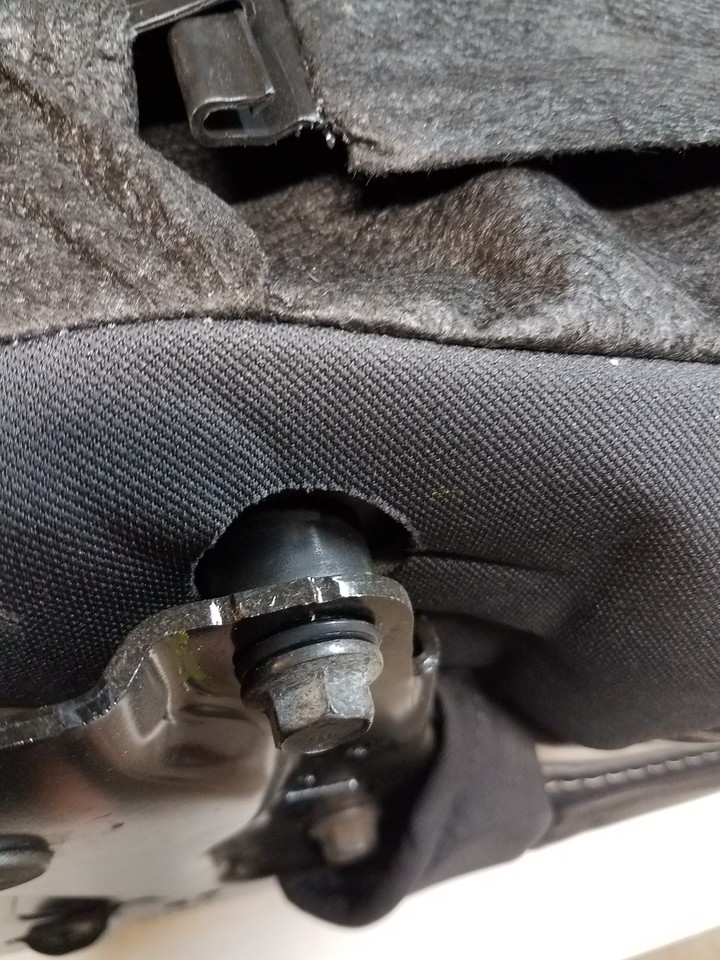

4G spacer installed in the 3G QC bracket for the seat back.

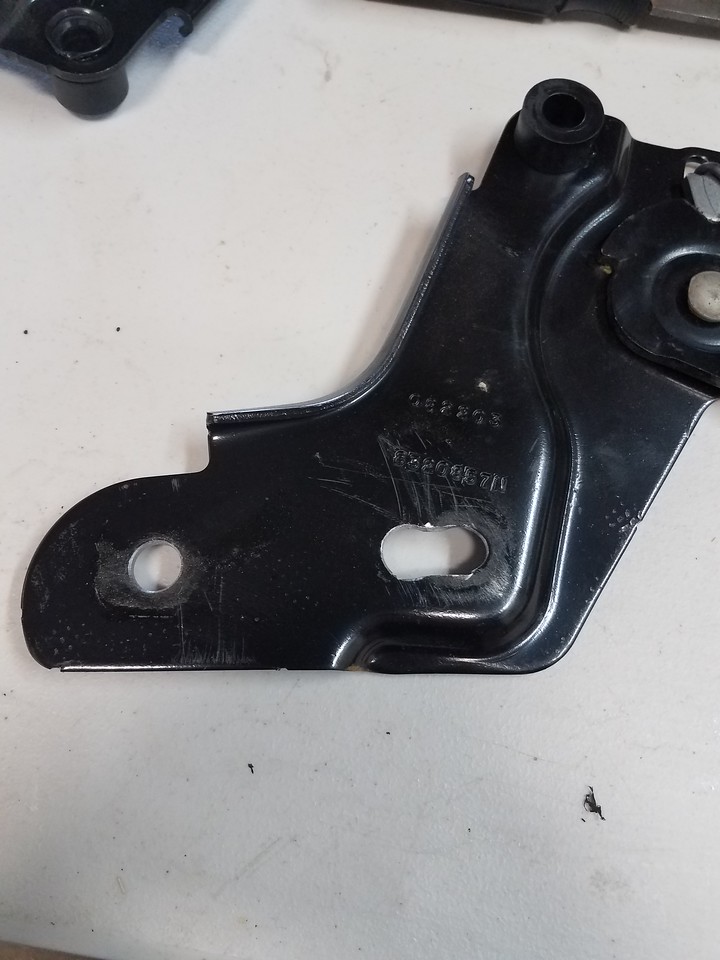

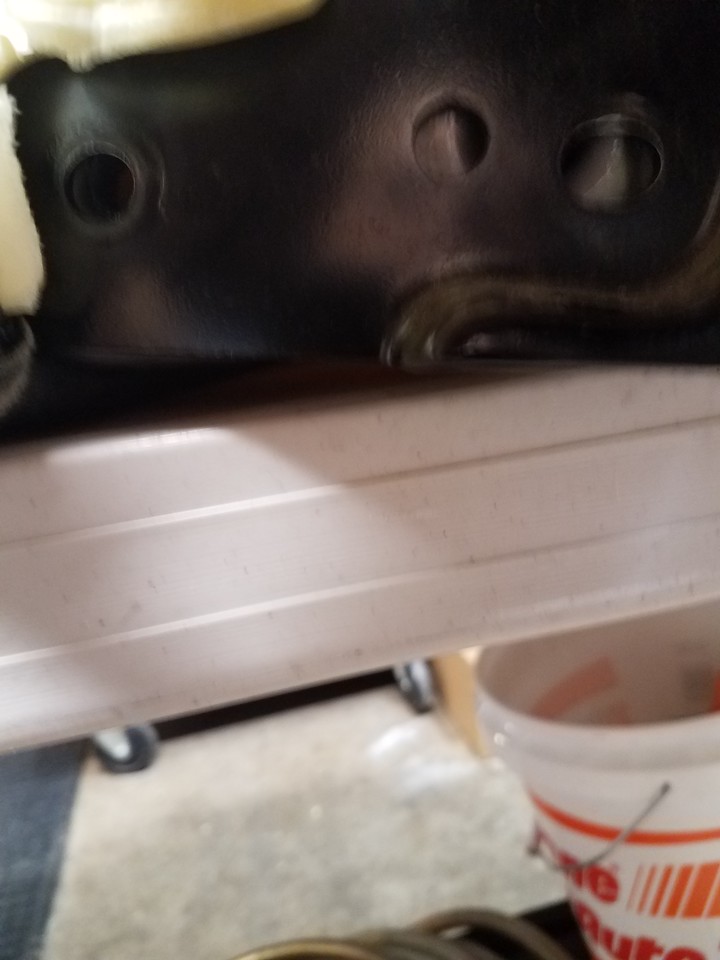

Picture is a little blury but these are the 2 holes that need to be enlarged to 1/2". I used a stepped bit for this. The forward most hole (farthest left in pic) gets enlarged and the oval shaped hole (farthest right) needs enlarged and elongated to the left. You can see the mounting hole that you need to be able to get a bolt into.


That's all I have for right now. It's still a work in progress, so more to come.
