Added Led bedlights

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Jpage978

Senior Member
Joined
Mar 6, 2022
Posts
154
Reaction score
77
Location
North Shore Ma.
Ram Year
2019
Engine
5.7 Hemi

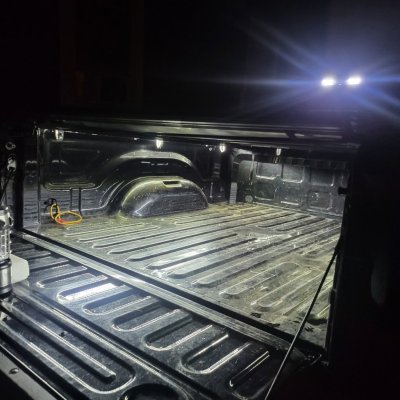

Wired them to come on with cargo lights on 3rd brakelight, with help from Boosted Motorsports youtube video. Finally converted all my halogen lights to led with a lot of trial and error, waiting on 3rd brakelight to change the one I have that has water in it


Attachments

  • 20240623_010658.jpg
    171.5 KB · Views: 12
  • 20240623_010457.jpg
    178.1 KB · Views: 12

Badger 13

Senior Member
Joined
Jul 30, 2018
Posts
1,197
Reaction score
1,172
Location
North Idaho
Ram Year
2013 Dodge Ram 1500
Engine
5.7 Hemi
Looks nice. Also just a suggestion, if you add a LED behind the red lens of the CHMSL, the LED color should be red as well.


Badger 13

Senior Member
Joined
Jul 30, 2018
Posts
1,197
Reaction score
1,172
Location
North Idaho
Ram Year
2013 Dodge Ram 1500
Engine
5.7 Hemi
Sorry about that, I thought you were just going to replace a bulb in the stock unit. You will have to let us know how the new one works out for you since many have had water leaks with the stock ones.



diymirage

Senior Member
Joined
Jan 24, 2024
Posts
427
Reaction score
479
Location
Michigan
Ram Year
2017
Engine
5.7
love the bed lights

i wired mine to a hot from the trailer plug, and installed a N/O switch in the tailgate
when i drop the tail gate, the lights come on

why this is not a basic feature is beyond me
good luck finding a hatchback with no trunk light

OP
OP
Jpage978

Jpage978

Senior Member
Joined
Mar 6, 2022
Posts
154
Reaction score
77
Location
North Shore Ma.
Ram Year
2019
Engine
5.7 Hemi
The after market cab light did leak, I've since replaced it with another, it's been in 2rain storms and so far hasn't leaked

OP
OP
Jpage978

Jpage978

Senior Member
Joined
Mar 6, 2022
Posts
154
Reaction score
77
Location
North Shore Ma.
Ram Year
2019
Engine
5.7 Hemi
This the one I have


Attachments

  • Screenshot_20240705_133739_Amazon Shopping.jpg
    Screenshot_20240705_133739_Amazon Shopping.jpg
    93.2 KB · Views: 2

miketx

Senior Member
Joined
Oct 10, 2018
Posts
239
Reaction score
191
Location
Allen, Texas
Ram Year
2024
Engine
6.7
I just got a Rebel 2500, and in addition to the cargo light that comes on, a LED light comes on in the rear tailgate handle. I wonder if anyone has wired their aftermarket bedlights to the hot wire of the tailgate light? Seems like it would work. Then anytime my cargo/tailgate light comes on, so do the bedlights. Two led bedlights shouldn't cause that much additional load to the circuit. Anyone know where to find wiring diagrams for a 2024?
