Aftermarket third brake light issues

Discussion in 'Audio & Electronics' started by JPG3, Apr 29, 2019.

  1. JPG3

    JPG3 Junior Member

    Age:
    51
    Posts:
    13
    Likes Received:
    10
    Joined:
    Apr 29, 2019
    Location:
    Ohio
    Ram Year:
    1997
    Engine:
    5.9
    I know there are other threads out there with this issue but I’ve yet to be able to solve mine.

    Original owner 1997 Ram 1500 Laramie 5.9 4WD...

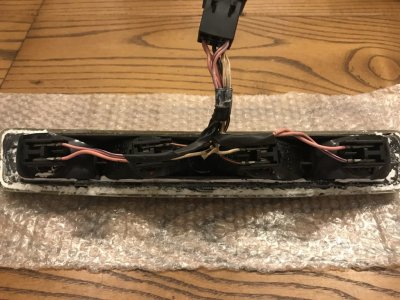

    Purchased a plug and play LED third brake light replacement for the original. Upon installment cargo lights do not shut off, they are not dim as others have stated with theirs, they are full on. Attempted a resistor but nothing changed, obviously connected to the wrong wires - white and black/white on the new assembly. Photos attached as the wires between the two assemblies are different colors but I assume they are connected in the same orientation. I have searched for solutions but it is obviously above my ability - auto electrical is surely not my thing. Any help would be appreciated, hope it all makes sense.

    OEM wires - white/tan & black/orange to center brake lights
    pink/blue & pink to cargo lights

    New LED harness configuration -
    Black/white wire in place of pink/blue of OEM
    White in place of pink
    Red/yellow place of black/orange
    Orange in place of white/tan

  2. corneileous

    corneileous Senior Member

    Posts:
    3,821
    Likes Received:
    2,066
    Joined:
    Sep 6, 2016
    Location:
    Podunkyville, OK
    Ram Year:
    2018 Ram 1500 Limited 4X4
    Engine:
    Hemi 5.7
    Do you have that resistor wired between the two wires, or spliced into the same wire? I had that problem on my 2008 but it sounds like your problem was exact to mine. I made a thread concerning it, I’ll go have to go look for it.


    Sent from my iPhone using Tapatalk Pro

  3. corneileous

    corneileous Senior Member

    Posts:
    3,821
    Likes Received:
    2,066
    Joined:
    Sep 6, 2016
    Location:
    Podunkyville, OK
    Ram Year:
    2018 Ram 1500 Limited 4X4
    Engine:
    Hemi 5.7
  4. JPG3

    JPG3 Junior Member

    Age:
    51
    Posts:
    13
    Likes Received:
    10
    Joined:
    Apr 29, 2019
    Location:
    Ohio
    Ram Year:
    1997
    Engine:
    5.9
    I connected one end to the white and the other to the black/white. Auto store individual told me to connect one to positive and other to negative, said it was a simple fix. Obviously one of us is confused.

  5. corneileous

    corneileous Senior Member

    Posts:
    3,821
    Likes Received:
    2,066
    Joined:
    Sep 6, 2016
    Location:
    Podunkyville, OK
    Ram Year:
    2018 Ram 1500 Limited 4X4
    Engine:
    Hemi 5.7
    I think that’s how it’s sposed to be wired. One wire from the resistor spliced to the positive, and the other end spliced tobthe negative. You sure you got the right wires? Also what size resistor you get?


    Sent from my iPhone using Tapatalk Pro

  6. JPG3

    JPG3 Junior Member

    Age:
    51
    Posts:
    13
    Likes Received:
    10
    Joined:
    Apr 29, 2019
    Location:
    Ohio
    Ram Year:
    1997
    Engine:
    5.9
    That was one of the first threads I read. Maybe his resistor suggestion isn’t the right fit for the issue - 12V 6ohm.

  7. corneileous

    corneileous Senior Member

    Posts:
    3,821
    Likes Received:
    2,066
    Joined:
    Sep 6, 2016
    Location:
    Podunkyville, OK
    Ram Year:
    2018 Ram 1500 Limited 4X4
    Engine:
    Hemi 5.7
    I can’t remember which resistor I ended up using. I just went to that website at the start of the discussion and emailed the guy that runs it. He was the one that told me which one to buy and, it fixed my problem. If your light’s still on, and you got the right wires tapped into, your resistor probably isn’t strong enough.


    Sent from my iPhone using Tapatalk Pro

  8. JPG3

    JPG3 Junior Member

    Age:
    51
    Posts:
    13
    Likes Received:
    10
    Joined:
    Apr 29, 2019
    Location:
    Ohio
    Ram Year:
    1997
    Engine:
    5.9
    I did my crude attempt at tracing the wires to the cargo/dome light switch as well as brake light switch and the answer could have been staring right at me but as I said, auto wiring is certainly not my thing.

  9. JPG3

    JPG3 Junior Member

    Age:
    51
    Posts:
    13
    Likes Received:
    10
    Joined:
    Apr 29, 2019
    Location:
    Ohio
    Ram Year:
    1997
    Engine:
    5.9
    Thanks for the info, looks like an email is my next step.

    corneileous likes this.
  10. corneileous

    corneileous Senior Member

    Posts:
    3,821
    Likes Received:
    2,066
    Joined:
    Sep 6, 2016
    Location:
    Podunkyville, OK
    Ram Year:
    2018 Ram 1500 Limited 4X4
    Engine:
    Hemi 5.7
    I think the one I ended up using was this one. [​IMG]
