Caliper mounting bracket measurements

[Ian_Olivas]

So I was looking into getting a big brake kit for our trucks seeing what I find, I messaged wilwood and they sent me over to TCE Performance. They one time made a kit front a rear for a 2008 1500 with 6piston wilwood calipers and 16" two piece rotors. The only reason he never continued to make a permanent kit with a add to cart and buy option was because he needed more info on the brake specs. Now 6 piston calipers in the rear might be overkill but I'm sure he can make a kit for 4piston in the rear.

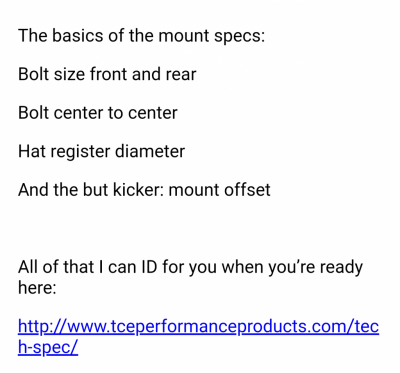

Well he wanted me to get these measurements for the brake set up and I thought I'd share what info he wants with you guys. And I can compile the information and send to him and hopefully in the future see a full kit for sale.

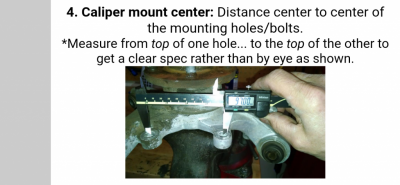

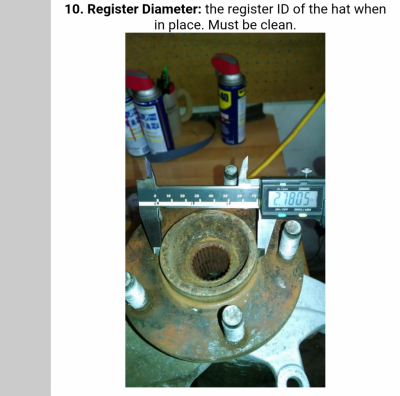

He wants these measurements front and rear.



[Ian_Olivas]

If you post any info. Please put the year and if youre 4x4, or any other info you think would differentiate from model to model.



[Karlsweg]

Interesting



[HemiLonestar]

02-08, 2wd or 4wd, the spindles and hubs (with the exception of whether 2 or 4 wheel ABS, though the actual body is the same) are identical. The only deviation from this are the 04-06 SRT spindles and even they they still use the same hubs.
Also after helping someone out with their 09 it would appear the spindles are the same through 2013 at least (03 spindles are identical to 09's).



[Ian_Olivas]

02-08, 2wd or 2wd, the spindles and hubs (with the exception of whether 2 or 4 wheel ABS, though the actual body is the same) are identical. The only deviation from this are the 04-06 SRT spindles and even they they still use the same hubs.
Also after helping someone out with their 09 it would appear the spindles are the same through 2013 at least (03 spindles are identical to 09's).

As most of us ram guys know this, he does not. He told me over the years he's come across different measurements across dodge. So I thought I'd see if I can help him out and get the measurements on various years to clarify for him. Also I figured that 06-09 have the same spindle as 02-05 but they use a different part number caliper so I was a little unsure.



[HemiLonestar]

As most of us ram guys know this, he does not. He told me over the years he's come across different measurements across dodge. So I thought I'd see if I can help him out and get the measurements on various years to clarify for him. Also I figured that 06-09 have the same spindle as 02-05 but they use a different part number caliper so I was a little unsure.

Somewhere out there is an 09 running around with my original 03 spindles [emoji23][emoji23]

Sent from my HTC U11 using Tapatalk
