Comprehensive 5th-Gen 1500 Fuse / Relay / Circuit Breaker Documentation

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

liedoctor

Junior Member
Joined
Sep 8, 2023
Posts
15
Reaction score
13
Location
Camden, SC
Ram Year
2023
Engine
3.6 V6
Is there a ground post in the vicinity of the interior fuse box? I'll need it for the ground side of a dash cam I'll be installing. Thanks...


Puckstopper55

Member
Supporting Member
Joined
Dec 18, 2023
Posts
44
Reaction score
29
Location
Long Island, NY
Ram Year
2024 1500 Rebel
Engine
5.7
This is my first post I make, so forgive me if this is the wrong thread to ask this question in, but I'm trying to install LED strips in my 2021 Ram 1500 Bighorn and after looking over HAL9001's amazing diagram, I was going to choose F54B to use a fuse tap on because it only works when the truck is ACC/RUN. My question is, do I have to make sure I insert the fuse tap in the right direction? Is there power only through the middle slot, or is it just the outside slots? Sorry if my question is confusing, any clarification is helpful.
Did you ever get the LED light strip to work? If so, which fuse did you use? I’m looking to install a LED light strip between the hood and grill but can’t find a fuse that comes on with ACC. All the install videos show an outdated fuse box


HabeQuiddam

Junior Member
Joined
Feb 25, 2024
Posts
1
Reaction score
1
Location
California
Ram Year
2021
Engine
Promaster 1500
I registered an account on this forum just so I could access the OP document - it was supremely helpful! Thank you so much for the detailed effort you’ve put into this, Dodge should have hired you to put this into the owner’s manual!


blackbetty14

Senior Member
Joined
Oct 23, 2014
Posts
2,712
Reaction score
1,442
Location
CT
Ram Year
2024
Engine
Hemi 5.7 VVT/Etorque
Very nice! I was bummed to see no fuse for the led headlights. I want to add driving lights that turn on automatically with the low beams and I’d rather not tie into the headlight wiring to activate the relay. Good stuff tho!


Jim S

Senior Member
Joined
Aug 28, 2018
Posts
111
Reaction score
109
Location
Louisiana
Ram Year
2021
Engine
5.7 eTorque
I know this is kind of an old channel, but can anyone tell me which fuse protects the 12vdc outlet on the dash of the 21 Ram 1500?


brian42

Senior Member
Military
Joined
Apr 1, 2019
Posts
710
Reaction score
750
Location
San Diego, CA

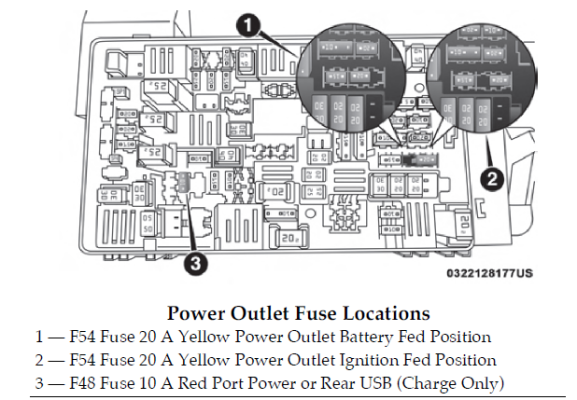

For my 2019 it was F54. There are two positions for that fuse to be installed for either hot (always on) or switched (only on with the ignition) power to the 12V outlet:



turkeybird56

Military Vet 1976-1996 Retired US Army
Military
Joined
Aug 2, 2018
Posts
19,887
Reaction score
45,353
Location
Central Texas
Ram Year
2019 Bighorn, 4 X 4, 3.21 rear, Bright Flame Red Pearl Coat, Mopar tonneau cover,Westin Bed rug
Engine
Hemi 5.7
I know this is kind of an old channel, but can anyone tell me which fuse protects the 12vdc outlet on the dash of the 21 Ram 1500?
See post #27, and FYI, that is on the Interior Panel, not under the hood.


MxChris

Junior Member
Joined
Mar 29, 2024
Posts
12
Reaction score
1
Location
FL
Ram Year
2020
Engine
5.7
Great post, thanks so much!


Yoke

Junior Member
Joined
Mar 21, 2021
Posts
1
Reaction score
0
Location
OH
Ram Year
2021
Engine
Hemi 5.7
Does anyone know if this has changed for the 2025?
