DashCam with 2 additional Cameras, Camera Hub and Internal Monitor Install Questions

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

simplyal

Junior Member
Joined
May 15, 2023
Posts
15
Reaction score
12
Location
85086
Ram Year
2016
Engine
5.7
I'm looking to wire a dashcam system that be a total of 3 cameras, Internal on windshield and two side mounted cameras on the exterior, video feed hub and an in cab monitor to view the video streams.

I will be running both constant and ground from the vehicle battery, into the cab and under the center console to an accessory panel switch.

The constant will have an inline fuse at the battery, my questions are,
- do I need a relay? When researching for light bars, etc, the recommendation is to have a relay.
- do I install a relay before the accessory switch or after the switch to the hub/cameras?

Does this look correct?

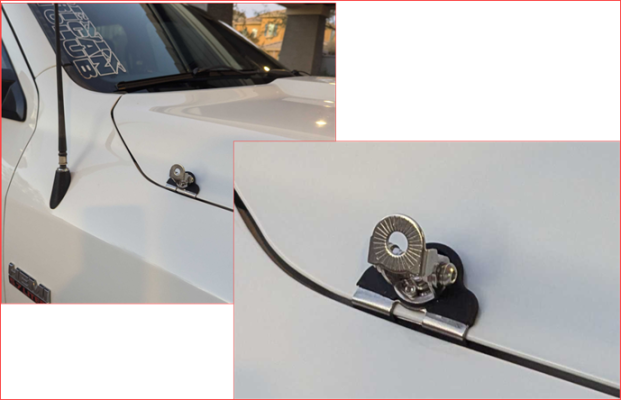

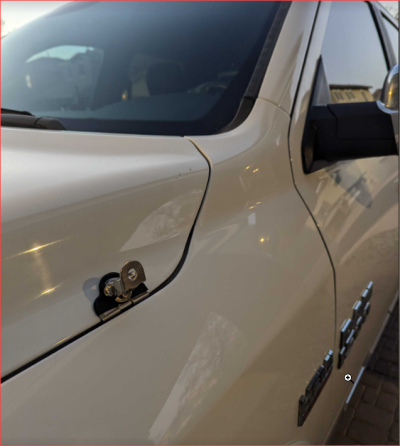

Lastly... if anyone know of a drop mount or bracket of some sort to mount external cameras to the underside of the mirrors, that would be awesomeness (last 2 photo ideas). Currently using clamp mounts.













SitKneelBend

Senior Member
Military
Joined
Jan 8, 2015
Posts
9,724
Reaction score
5,541
Location
St. Louis
Ram Year
2014
Engine
3.6 Pentastar
I'm looking to wire a dashcam system that be a total of 3 cameras, Internal on windshield and two side mounted cameras on the exterior, video feed hub and an in cab monitor to view the video streams.

I will be running both constant and ground from the vehicle battery, into the cab and under the center console to an accessory panel switch.

The constant will have an inline fuse at the battery, my questions are,
- do I need a relay? When researching for light bars, etc, the recommendation is to have a relay.
- do I install a relay before the accessory switch or after the switch to the hub/cameras?

Does this look correct?

View attachment 554559

Lastly... if anyone know of a drop mount or bracket of some sort to mount external cameras to the underside of the mirrors, that would be awesomeness (last 2 photo ideas). Currently using clamp mounts.

View attachment 554554

View attachment 554555

View attachment 554556





View attachment 554558



View attachment 554557
What is the accessory switch going to be used for?

OP
OP
S

simplyal

Junior Member
Joined
May 15, 2023
Posts
15
Reaction score
12
Location
85086
Ram Year
2016
Engine
5.7
Using the switch panel as a battery kill to the camera/hub. The other two switches right now go to nothing and are there for when I do add LED Lights.


SitKneelBend

Senior Member
Military
Joined
Jan 8, 2015
Posts
9,724
Reaction score
5,541
Location
St. Louis
Ram Year
2014
Engine
3.6 Pentastar
Using the switch panel as a battery kill to the camera/hub. The other two switches right now go to nothing and are there for when I do add LED Lights.
So typically, the relay would be used to provide power when a certain trigger is met. In your case, that would likely be with accessory power (not always powered). Is that what you want to happen (switch goes dead when the vehicle isn't running) or do you want the switch to be the trigger for the relay?

Last edited:
OP
OP
S

simplyal

Junior Member
Joined
May 15, 2023
Posts
15
Reaction score
12
Location
85086
Ram Year
2016
Engine
5.7
So typically, the relay would be used to provide power when a certain trigger is met. In your case, that would likely be with accessory power (not always powered). Is that what you want to happen (switch goes dead when the vehicle isn't running)?


Correct, to power the accessory when the switch is on.

I do understand that if I keep the switch on with the vehicle off, there would still be a draw from the accessory. The camera setup is supposed to be wired constant and has it's own 'sleep mode'. I am wanting to be safe, where I can control the constant power (as switched power)

Right now, the first two switches are tied to switch power from inside the cab and connected to a GPS tracking device where the switches emulate being connected to triggers like PTO or Lights (no actual accessories installed). I'm looking to isolate the 3rd switch to have constant where I can choose when to power just the camera setup.

I only want the camera setup to be on when I am the sole person in the vehicle.

I hope this makes sense?

OP
OP
S

simplyal

Junior Member
Joined
May 15, 2023
Posts
15
Reaction score
12
Location
85086
Ram Year
2016
Engine
5.7

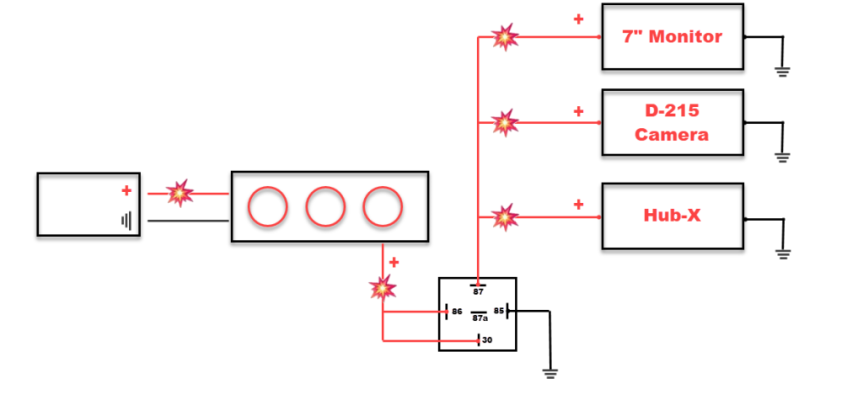

I think I got it... [updated] there will be a 7.5A inline fuse from battery to switch, 15A inline fuse from switch to relay and then each device has its own inline fuse.

Totally appreciate you responding.





Attachments

  • 1731360679437.png
    46.2 KB · Views: 4
Last edited:

SitKneelBend

Senior Member
Military
Joined
Jan 8, 2015
Posts
9,724
Reaction score
5,541
Location
St. Louis
Ram Year
2014
Engine
3.6 Pentastar
I think I got it... [updated] there will be a 7.5A inline fuse from battery to switch, 15A inline fuse from switch to relay and then each device has its own inline fuse.

Totally appreciate you responding.



View attachment 554578
Yep, this will get you what you are wanting. What cameras/hub are you using? I ask because I have wired a hub and cameras directly to the cargo camera input of my 8.4" factory radio and if you have an 8.4 you might be able to go without the separate monitor.

OP
OP
S

simplyal

Junior Member
Joined
May 15, 2023
Posts
15
Reaction score
12
Location
85086
Ram Year
2016
Engine
5.7
Yep, this will get you what you are wanting. What cameras/hub are you using? I ask because I have wired a hub and cameras directly to the cargo camera input of my 8.4" factory radio and if you have an 8.4 you might be able to go without the separate monitor.

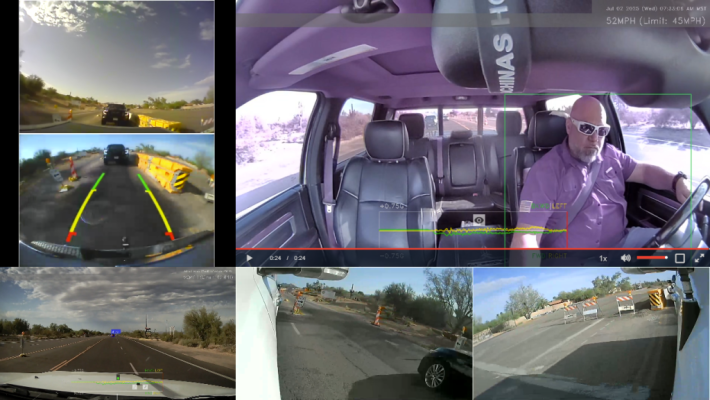

I'm testing a commercial fleet system, Driveri (Netradyne) Camera system. D-215 dashcam with forward and back facing cameras, 2 blind spot cameras and a 3rd party split screen monitor (y cabled from blind spot cameras).

Next steps would be to see I could split my OEM tailgate camera RCA to an RCA and 4pin where I could add a connection to the hub.



SitKneelBend

Senior Member
Military
Joined
Jan 8, 2015
Posts
9,724
Reaction score
5,541
Location
St. Louis
Ram Year
2014
Engine
3.6 Pentastar
I'm testing a commercial fleet system, Driveri (Netradyne) Camera system. D-215 dashcam with forward and back facing cameras, 2 blind spot cameras and a 3rd party split screen monitor (y cabled from blind spot cameras).

Next steps would be to see I could split my OEM tailgate camera RCA to an RCA and 4pin where I could add a connection to the hub.

View attachment 554579
Interesting! I know that the aftermarket systems direct the camera into an RCA connection on Android head units so I don't see why it couldn't be split. Keep in mind the rear camera has logic in the BCM on when it cane be on and off.
