PSA for everyone considering the 8.4 upgrade based on requests I have had lately...


DO NOT SWAP COMPLETE DASH HARNESSES BETWEEN TRUCKS FOR AN 8.4/HVAC or AUDIO CONVERSION !!!

Just because the plugs match up, you will find that signals are often moved to different pins of the connectors between different years, models (1500 vs 2500) and trims. It's an exercise in futility to try and trace every signal at every connector/terminal between the different trucks schematics to untangle what needs to happen.


If you have done this and have issues (most likely will), my suggestion, put the truck back to stock (you can swap over the dash cover) and start over with correct "conversion/add-on" harnesses etc.

(I'm not saying it can't be done, but the amount of work to do it correctly is extensive to say the least & not something I can spend the time to untangle)


Houndy95

Junior Member
Joined
Nov 25, 2020
Posts
2
Reaction score
1
Location
Central Florida
Ram Year
2018
Engine
6.7L Cummins
Mpgrimm2 hooked me up with a like new UAS 8.4 and a very good condition Dual Zone bezel. As well as the harnesses and modules for the 4 to 7 speed conversion. With everything being plug and play, it was a super easy and painless install. Really straightforward and came out perfect. Great communication and helped with all my questions. Thanks again for everything!

OP
OP
Mpgrimm2

Mpgrimm2

Senior Member
Preferred Vendor
Military
Joined
Mar 30, 2014
Posts
6,089
Reaction score
4,171
Location
SC
Ram Year
2022 Ram 1500 (5th Gen)
Engine
5.7L
Last edited:

mattram83

Junior Member
Joined
Dec 15, 2023
Posts
11
Reaction score
4
Location
Ontario Canada
Ram Year
2014
Engine
3.6L
Ok so i want to make sure that i will have everything i need.

I currently have a 2014 Ram SLT 3.6 with the tiny 5inch screen and single zone manual climate controls.

I have purchase a 8.4" bezel with single zone climate controls from a scrapper here for only 30$ (yes a steal of a price)

I'm planning to add a 68331635AH UAS 8.4" radio.

Other than that i think this is all i will need:

68283703AA 2017 Chrysler 200 - dual USB with AUX inputs
MEDIA HUB CONVERSION HARNESS from @[B][B]Mpgrimm2[/B][/B]


I don't think i will need to make any changes to the HVAC as i already have a 7 speed fan model (pretty sure) but please correct me if im wrong

I also read a comment that states that i would loose my uconnect? is that correct ? if so why would i loose uconnect ?

Last edited:
OP
OP
Mpgrimm2

Mpgrimm2

Senior Member
Preferred Vendor
Military
Joined
Mar 30, 2014
Posts
6,089
Reaction score
4,171
Location
SC
Ram Year
2022 Ram 1500 (5th Gen)
Engine
5.7L
You will need the 8.4 conversion harness, correct HVAC module, hub adapter harness and a few other things. Message me for details/get things started before I close up for the holidays.


Hemi395

Senior Member
Joined
Mar 18, 2013
Posts
8,971
Reaction score
15,607
Location
Cape Cod MA
Ram Year
2013
Engine
5.7 Hemi
OP
OP
Mpgrimm2

Mpgrimm2

Senior Member
Preferred Vendor
Military
Joined
Mar 30, 2014
Posts
6,089
Reaction score
4,171
Location
SC
Ram Year
2022 Ram 1500 (5th Gen)
Engine
5.7L
I thought the 13&14 units couldn't support more than 1 camera, am I wrong about that?
All the 2013-17 Harmon 8.4 radios have the hardware/pinouts for 3 video inputs and aux/CdPlayer Audio inputs. See my notes here.

Stellantis/Ram decided to allow only one input on the 13-15 Ram 8.4s when SW update 17.x came out. Which messed up some folks with BuCam and Cargo Cam on the 13-15 trucks/radios.

I had the Original Customtronix Jailbreaker working on a 14 Ra4 several years ago ... See here and video in action. I liked it a lot. You can also do the same thing with their Enzo/Enigma modules on the newer 4c radios. (I'd rather see a SW solution if the inputs are actually there vs have an extra camera interface module added switching video in on the 1 BuCam input ... But it just comes down to preference)

Last edited:

Hemi395

Senior Member
Joined
Mar 18, 2013
Posts
8,971
Reaction score
15,607
Location
Cape Cod MA
Ram Year
2013
Engine
5.7 Hemi
All the 2013-17 Harmon 8.4 radios have the hardware/pinouts for 3 video inputs and aux/CdPlayer Audio inputs. See my notes here.

Stellantis/Ram decided to allow only one input on the 13-15 Ram 8.4s when SW update 17.x came out. Which messed up some folks with BuCam and Cargo Cam on the 13-15 trucks/radios.

I had the Original Customtronix Jailbreaker working on a 14 Ra4 several years ago ... See here and video in action. I liked it a lot. You can also do the same thing with their Enzo/Enigma modules on the newer 4c radios. (I'd rather see a SW solution if the inputs are actually there vs have an extra camera interface module added switching video in on the 1 BuCam input ... But it just comes down to preference)
Ok cool, thank you!!


rideorange

Junior Member
Joined
Dec 3, 2023
Posts
4
Reaction score
3
Location
San Clemente
Ram Year
2015
Engine
6.7
I ordered my ATC Conversion harness kit complete with Bezel from Mpgrimm2 at M2 Mods, (Mike G) and couldn't be happier with the quality of the workmanship and the detailed instructions provided. Even the shipping was prompt and the packaging was professional and neat.

The 5" to 8.4" Radio upgrade was pretty simple to install and the parts and wiring was intuitive once I thoroughly reviewed the instructions.

Where you really get the value from Mike is with the customer service. If you run into any issues related to the parts or the installation procedure, he will be relentless in helping you to resolve. The TIMING and ORDER matter when it comes to the single zone MTC to ATC conversion. You have to pay attention when using the alpha obd tool.

While completing my upgrade I had a particularly annoying issue with the UAQ not recognizing my 2015 Ram (I will be installing radio #3 soon) but Mike has been available and ready to help me, and that's impressive. I also owe a big thanks to other contributions by members of this forum.

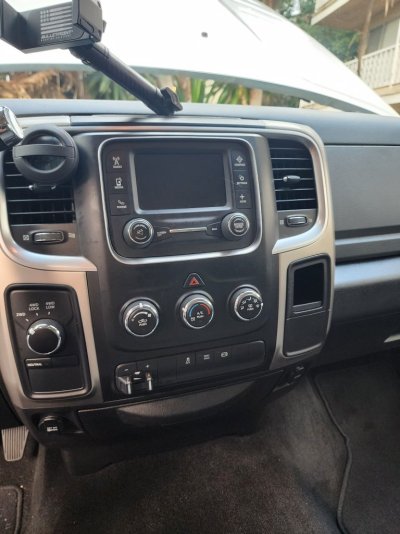

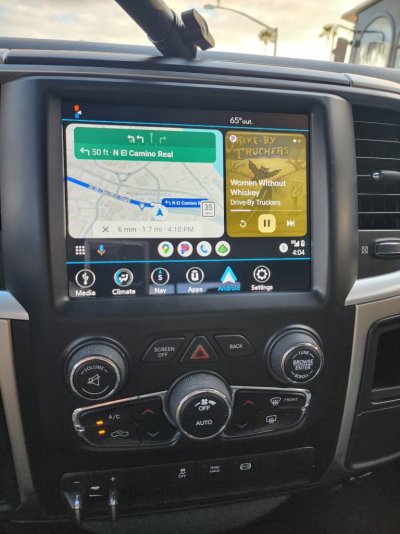

Here are some photos of my before and after, and I expect all my issues to be resolved once I swap out the current Jeep Gladiator UAQ for the correct current MY18 Ram 683 part number.
