How to Bypass (Trick) Seat Belt Switch

JMod45

Senior Member
Joined
May 16, 2019
Posts
210
Reaction score
126
Location
TX
Ram Year
2014
Engine
6.7 Diesel
I've tried finding information about how to bypass the seatbelt switch in our trucks. The only information I have found is to get an extender, and leave it plugged in all of the time.
You can disable the beeping with a manual process, or by using AlfaOBD. I have the beeping turned off, but the EVIC constantly flashing on and off when I'm idling across a field at 4-5 mph is really annoying.

I found a wiring diagram online, which shows the two wires going to the seatbelt switch. One is a signal, other is a ground, so do not try to bypass the wires like the older days, it will just throw codes.
I tried measuring resistance across the switch between buckled and unbuckled, but did not have any luck, so I'm guessing it is something on the CANBUS system, which I do not yet understand.

That left me with another choice, trick the sensor.

** DISCLAIMER: This bypasses a safety on your vehicle. If done correctly, this will not make any changes to the physical operation of the seatbelt, but only do this at your own risk. **

For starters, remove the seat belt buckle. This requires a T50 Driver, and possibly removing parts to get to the bolt. In my case, I unbolted the seat.

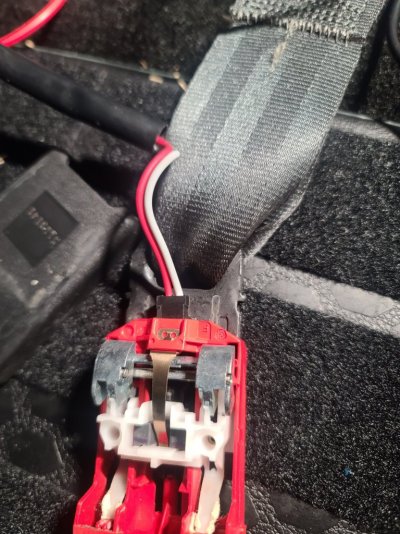

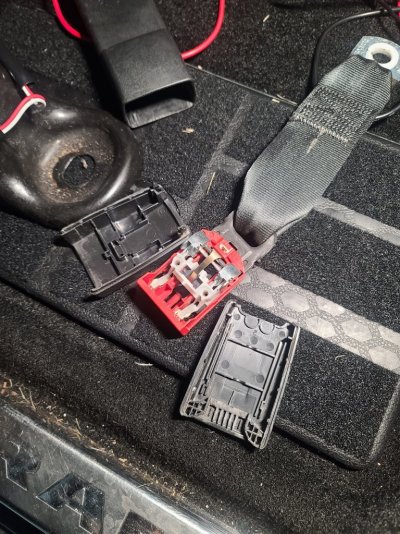

Next, slide the plastic sheath down, and pop the plastic cover off of the buckle. The plastic cover looked to be glued in a couple of spots. I ended up taping it back together with electrical tape, which is hidden under the plastic sheath.
You must be registered for see images attach


You must be registered for see images attach
* This picture was taken after the sensor was removed

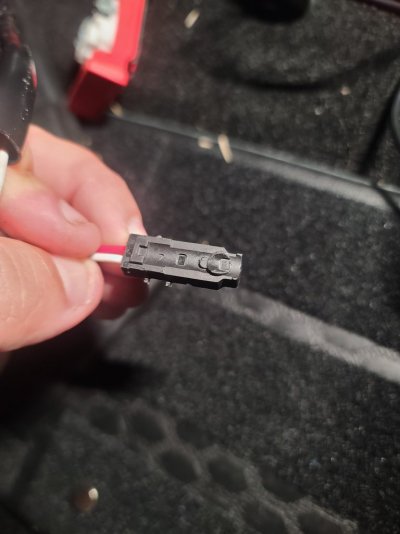

You will then have to remove the switch from the buckle. The switch appears to be put in before the buckle is riveted together, so unless you are lucky/skilled, you may have to break off the tabs.
I also unwrapped the wire, so I could leave it under the seat.

You must be registered for see images attach

You must be registered for see images attach


This sensor is controlled by a tiny magnet on the side of the buckle release spring mechanism (thingy)
I had some small magnets my wife had used for some art project in the past.

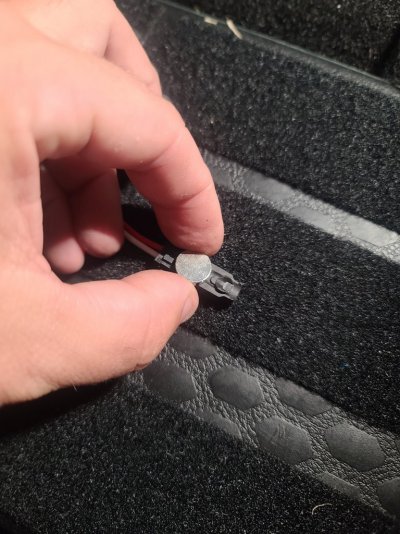

If you take a magnet, and touch it to the inner side of the sensor, it thinks the belt is buckled.

You must be registered for see images attach
You must be registered for see images attach


An interesting note: It only appeared to work one direction. If I turned the magnet over, the light came back on.

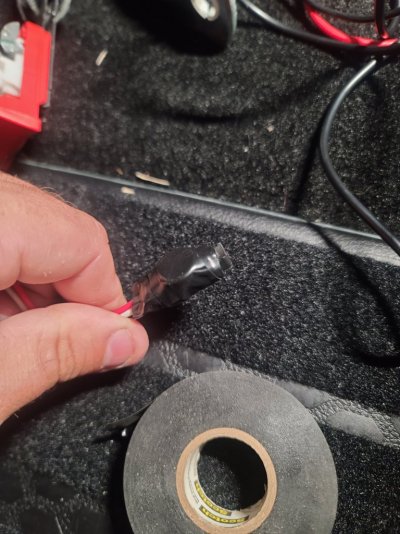

Next, I wrapped the assembly in electrical tape, then re-bolted the belt buckle to the seat, and seat to the truck.
You must be registered for see images attach

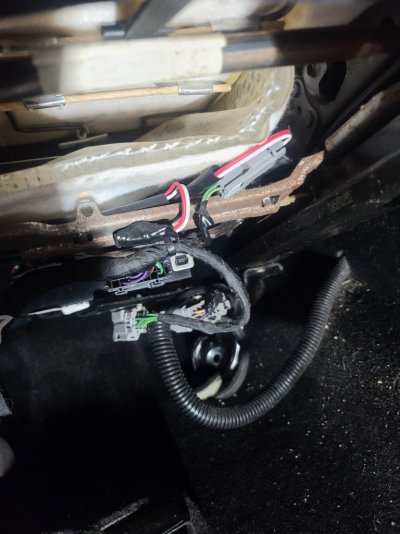

Since I pulled the wire completely out of the buckle assembly, I was able to place the wired directly under the seat, and since it is now magnetized, It sticks to the bracket.
You must be registered for see images attach


I ended up putting it on top of the bracket, so the magnet isn't fighting gravity. Leaving it here also makes it easier to reach if I ever have a problem and have to further modify.

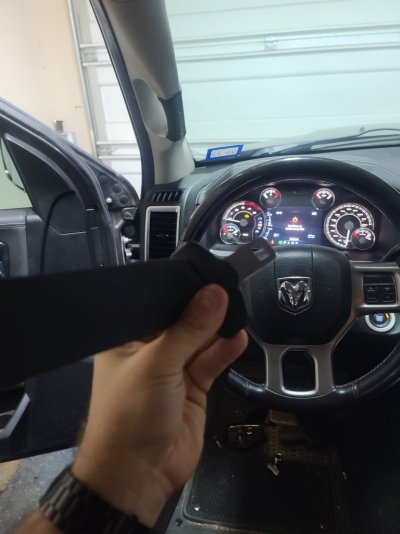

No more light:
