I made this post on other forums so i copied and pasted it here for anyone who is wanting to add "plug in" style LED bulbs in their tail lights, so if you have any questions ill be happy to help...


"Ok, for anyone who wants to add LED replacement bulbs to our rams, and they have a 02-06 ram with the circut boards on the tails, most charts will tell you to use a 3057 bulb, more commonly known as a 3157, well what most wont know is that there are whats called a 3157 SRCK bulb, so what that means that the 2 bulb types share plug sockets but the wiring in the sockets are different, now why is this little bit of information important, because the use of a regular 3157 LED bulb can cause a few different things to happen, some as simple as the bulb just not working, but also a bulb i tested actually caused a short in the system, which had it been hooked up to the truck, it would have shorted out the FCM, and we all know the FCM is not something to mess with on our truck, and its not a cheap part to mess up on a regular basis, so in short if you are going to replace the bulbs in your tails with LED bulbs BE VERY CAREFULL, if you get the wrong one it can be a costly mistake.

now this only applies to the TAIL LIGHT CIRCUT BOARDS, of an 02-06 ram, no where else is this a concern to our trucks, if you have an 07-up, you dont even need to be reading this

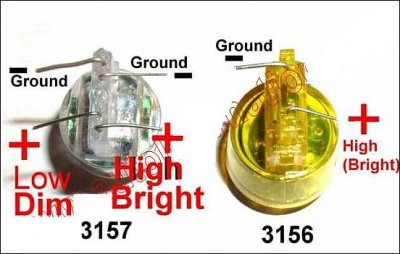

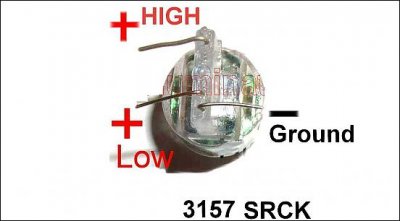

Below is a few PIX that show the difference in the wiring between the 2 bulb types"


Attachments

  • 11111.JPG
    21.7 KB · Views: 315
  • 11112.JPG
    34.5 KB · Views: 312

wedge775

Senior Member
Joined
Aug 28, 2012
Posts
193
Reaction score
55
Location
Phenix City, AL
Ram Year
2010
Engine
5.7L Hemi
How do you know what bulb to get? Just compare the bulbs in the rail to the one in the pics? The ones in my rail all look like the 3157 with the four leads

OP
OP
Demon-HeMi

Demon-HeMi

Senior Member
Joined
Dec 30, 2010
Posts
4,346
Reaction score
3,297
Location
Houston
Ram Year
2003, 2003, 2008, & 2013
Engine
(2) 5.7 HEMI, 3.7, & 3.6
its a matter of SRCK and regular bulbs, if the LEDs do not say SRCK when you are buying them, then they arent compatable with the tail lights boards of the 02-06 rams


TexasCornBread

Senior Member
Joined
Oct 26, 2012
Posts
205
Reaction score
5
Location
Old River,Texas
Ram Year
1999
Engine
5.9 magnum
Demon-hemi is very knowledgeable about lights he is a light god . I have several sets of lights from him . He is a personal fried of mine but he backs any work of his and helps people out suck as this post .


If you can't dodge it RAM it !


03MopaRamman

RAM SPORT / 18 SRT
Joined
Jul 3, 2010
Posts
3,580
Reaction score
185
Location
Southern Alberta
Ram Year
2019 (2003 Forgottens SOLD and 2014 SOLD)
Engine
Hemi 5.7 (392 Hemi) 86 Ford .308 HO Roller
Thanks, good info, years back I tried an Led and it didn't work, maybe I will start with a 3157 SRCK if I can find one around here.


jdram

Junior Member
Joined
Jan 27, 2013
Posts
2
Reaction score
0
Ram Year
2006
Engine
hemi
even for the reverse lights?


Hemiram

Member
Joined
Jul 12, 2012
Posts
75
Reaction score
9
Location
PA
Ram Year
2003
Engine
5.7
Do I have to worry about this if I am buying a regular incandescent?

OP
OP
Demon-HeMi

Demon-HeMi

Senior Member
Joined
Dec 30, 2010
Posts
4,346
Reaction score
3,297
Location
Houston
Ram Year
2003, 2003, 2008, & 2013
Engine
(2) 5.7 HEMI, 3.7, & 3.6
Do I have to worry about this if I am buying a regular incandescent?

no with halogen bulbs there is no problem with any of them


Stangshcky12

Senior Member
Joined
Oct 26, 2011
Posts
9,047
Reaction score
941
Location
Oshkosh, WI
Ram Year
2007
Engine
5.9 Cummins
So I ordered a set of LED bulbs before I saw this
You can apparently use regular 3157 LED for the reverse. They only have two prongs in the socket while the others have 4 prongs

I tried the LED bulbs that I got, blew the left side taillight fuse as soon as I turned the lights on.
Dan will the 3157 bulb work for my dads 4th gen brake lights?

OP
OP
Demon-HeMi

Demon-HeMi

Senior Member
Joined
Dec 30, 2010
Posts
4,346
Reaction score
3,297
Location
Houston
Ram Year
2003, 2003, 2008, & 2013
Engine
(2) 5.7 HEMI, 3.7, & 3.6
So I ordered a set of LED bulbs before I saw this
You can apparently use regular 3157 LED for the reverse. They only have two prongs in the socket while the others have 4 prongs

I tried the LED bulbs that I got, blew the left side taillight fuse as soon as I turned the lights on.
Dan will the 3157 bulb work for my dads 4th gen brake lights?

they should work on a 4th gen, they work on an 07-08 so i have no reason to suspect them to not work on an 09 and up

OP
OP
Demon-HeMi

Demon-HeMi

Senior Member
Joined
Dec 30, 2010
Posts
4,346
Reaction score
3,297
Location
Houston
Ram Year
2003, 2003, 2008, & 2013
Engine
(2) 5.7 HEMI, 3.7, & 3.6
yes


EWC88

Senior Member
Joined
Apr 2, 2013
Posts
1,354
Reaction score
206
Location
Southern NJ
Ram Year
2002
Engine
4.7
I know this isn't the tail lights, but is there anything I should look out for when doing LEDs for license plate and interior?

OP
OP
Demon-HeMi

Demon-HeMi

Senior Member
Joined
Dec 30, 2010
Posts
4,346
Reaction score
3,297
Location
Houston
Ram Year
2003, 2003, 2008, & 2013
Engine
(2) 5.7 HEMI, 3.7, & 3.6
License plate lights on a 3rd gen, ive never had any issues with anything, just plug and go, the interior lights you may or may not need a small resistor in them to keep them from having a slight glow to them at all times, it all varies on the LED and how its made as to if you will need one


JAMMAN

Senior Member
Joined
Nov 17, 2014
Posts
349
Reaction score
75
Ram Year
2002
Engine
4.7
I put a LED middle stop light on mine, it included whites for the bed light. It does glow faintly all the time (the white ones), so far I just live with it. Anyone know what the highest ohm resistor I could put in there to stop the glow? Seems like too low would heat up or cause other problems.

I wish there was a way to reprogram the thing that alerts you when a light is out to simply feel for less of a draw, putting resistors on LED's seems like it is defeating one of the purposes of a LED in the first place.... lower amperage draw. I tried LED turn signals in my clear lenses in the front, hyperflash and a message. I kinda expected it though.

Joined
May 13, 2014
Posts
30
Reaction score
0
Location
Bushwood,Md
Ram Year
2005
Engine
hemi 5.7
What about aftermarket led brake light assembly's will that fry the circuitry they plug into the light harness.


Rebelemtp

Junior Member
Joined
Jul 16, 2021
Posts
3
Reaction score
0
Location
Athens
Ram Year
2003
Engine
Diesel
Thanks for the information! would have saved money if i had found this post. but now at least i have bright backup lights. now to get the right ones for the break and turn signals.
