Leaky Brake Light Fixed

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Burla

Senior Member
Military
Joined
Apr 28, 2012
Posts
23,120
Reaction score
44,462
Ram Year
2010 Hemi Reg Cab 4x4
Engine
Hemi


Well you see the gasket they put on versus the thick water proof one they should have put on. Super easy fix, and if Ram had the right one on in the first place my cab wouldn't smell like mold and I wouldn't be out the 300 dollars worth of stuff the water damaged.


perk7089

Member
Joined
Sep 18, 2016
Posts
69
Reaction score
8
Ram Year
2010
Engine
Cummins 6.7
Aw man I'd be pissed off!!

Sent from my XT1080 using Tapatalk


Hemi395

Senior Member
Joined
Mar 18, 2013
Posts
8,965
Reaction score
15,598
Location
Cape Cod MA
Ram Year
2013
Engine
5.7 Hemi
Damn man that sucks! Where did you get the new gasket?

Sent from my SM-G930P using Tapatalk

OP
OP
Burla

Burla

Senior Member
Military
Joined
Apr 28, 2012
Posts
23,120
Reaction score
44,462
Ram Year
2010 Hemi Reg Cab 4x4
Engine
Hemi
It isn't a gasket, it is a roll. You can buy that MD anywhere, I do believe I got mine on Amazon or Ebay, I forget which one.

All of the stuff didn't bother me, but I had a Barry Bonds poster I got when I went to a playoff game, can't be replaced. I'm a big Giants fan, oh well.

Water tested, that totally fixes it. Super easy to remove the old gasket, even though it is glued it comes right off with a gentle touch. MD stuff self adhesive glues itself right over old spot, no cleaning even required. When you screw the light back in, go slow, it really grabs the seal well. The MD seals the void so much better then the thin gasket. Kinda stupid Dodge could have that fixed long ago. I used maybe 3 dollars worth of MD, so cheap fix.


smurfs_of_war

Senior Member
Joined
Oct 29, 2013
Posts
2,116
Reaction score
1,263
Location
Swift Current, Saskatchewan
Ram Year
2020
Engine
Hemi 6.4
I think I will try this instead of using butyl like the last 3 trucks. You think they'd catch on eventually?

Sent from my SM-G925W8 using Tapatalk


07MegaCabRam

Senior Member
Joined
Jun 16, 2014
Posts
1,080
Reaction score
578
Location
Chandler, Arizona
Ram Year
2014
Engine
6.7L CTD
Good thought. But here in Arizona, I bet that would dry and crack and leak worse than the foam however..


Hemi395

Senior Member
Joined
Mar 18, 2013
Posts
8,965
Reaction score
15,598
Location
Cape Cod MA
Ram Year
2013
Engine
5.7 Hemi

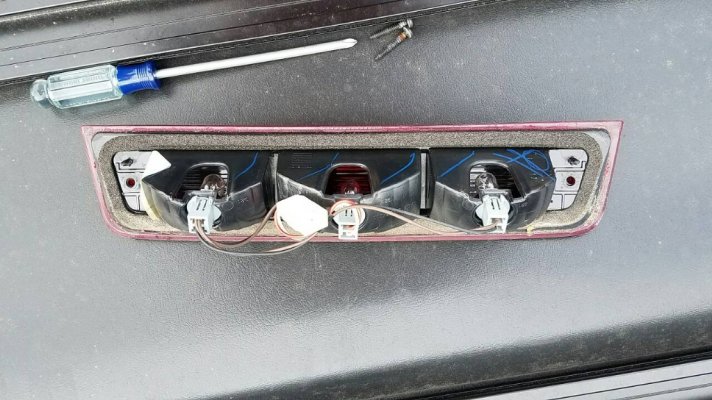

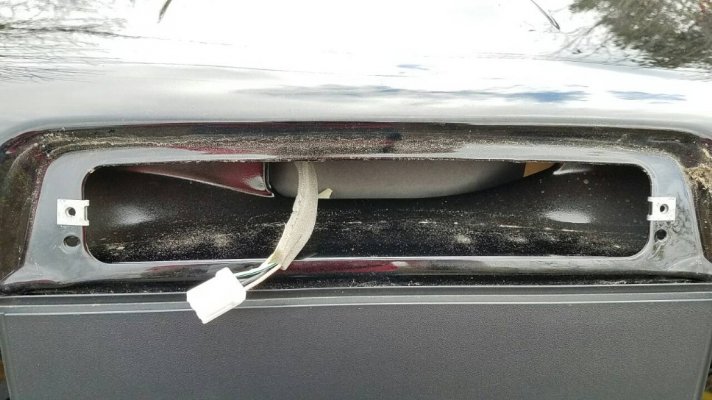

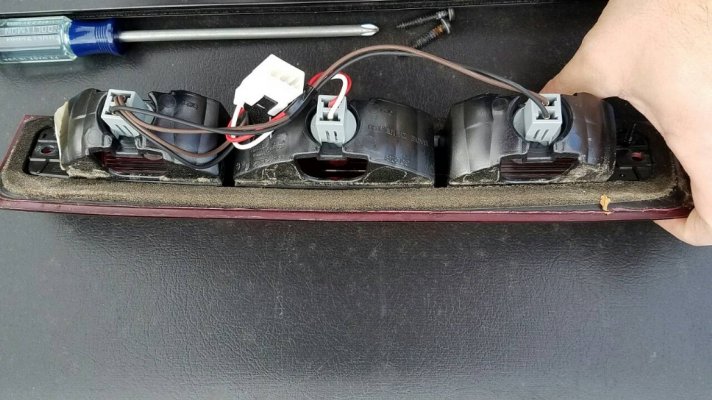

Just did this to my truck this morning. The old gasket was basically disintegrating and had just started to leak.110effe918c8caa010ad415db5def96f.jpg9b6feb65cb8e89bcbf07ad3dcf3dd42b.jpgc70252735defba2aca985e64a7353006.jpg

Put the MD weatherstripping on and man what a difference!

When I went to put it back on it was a little tight because the new weatherstripping is thicker. I would recommend checking the screws after a few weeks because I'm sure it will compress and form to the body of the truck and it might need to be tightened.

Thanks @Burla!


BrianandChrissy

Senior Member
Military
Joined
Jul 11, 2016
Posts
826
Reaction score
477
Location
Buffalo NY
Ram Year
2016 big horn crew cab
Engine
5.7 hemi, vararam CAI
Good thought. But here in Arizona, I bet that would dry and crack and leak worse than the foam however..
No, it will not crack. It isnt exposed to direct sunlight. The foam however, acts like a sponge... getting wet, drying, over and over again. It will break down and fail.

sent from galaxy S7 edge using tapatalk

OP
OP
Burla

Burla

Senior Member
Military
Joined
Apr 28, 2012
Posts
23,120
Reaction score
44,462
Ram Year
2010 Hemi Reg Cab 4x4
Engine
Hemi
Good write up H395, it has been a great and easy fix I also found here. ****** me off the dealer knows about this **** for years and such an easy fix, and they are still using that crap gasket. I lost two items that were important to me from water damage. I am also mad at myself for not doing it earlier. When you see those pics from 395, you know every Ram owner should do this. If you stuff aint leaking with the old gasket, it is just a matter of time.


Hemi395

Senior Member
Joined
Mar 18, 2013
Posts
8,965
Reaction score
15,598
Location
Cape Cod MA
Ram Year
2013
Engine
5.7 Hemi
The funny thing is the dealer "fix" for this is RTV. Makes changing those bulbs a real joy...

OP
OP
Burla

Burla

Senior Member
Military
Joined
Apr 28, 2012
Posts
23,120
Reaction score
44,462
Ram Year
2010 Hemi Reg Cab 4x4
Engine
Hemi
That is ugly funny, that must take near an entire tube, lol. What a bunch of damn fools.


smiley

Senior Member
Supporting Member
Joined
Apr 18, 2011
Posts
6,622
Reaction score
2,955
Location
Minot, ND
Ram Year
2014 Ram 2500 Crew
Engine
6.7L Cummins
I'll have to do this


Quint

Senior Member
Joined
Mar 25, 2015
Posts
298
Reaction score
157
Location
Minnesota
Ram Year
2021 Big Horn 1500
Engine
5.7L v8 eTorque
Can anyone speak to the width and thickness of the weather seal that works? They sell many different sizes.


thrashie

Senior Member
Joined
May 22, 2013
Posts
213
Reaction score
76
Location
All Over
Ram Year
2013 2500 Laramie
Engine
6.7l cummins turbo diesel
all my rams have all leaked from the 3rd brake light...(03,07,13,13) you would think that dodge/ram would have come up with a permanent fix for this a long time ago...

just had it warranty fixed on my 2500...they replaced the whole light and put in a new gasket...


1quick1

Senior Member
Joined
Dec 31, 2016
Posts
200
Reaction score
62
Location
Colorado
Ram Year
2017
Engine
Hemi 5.7

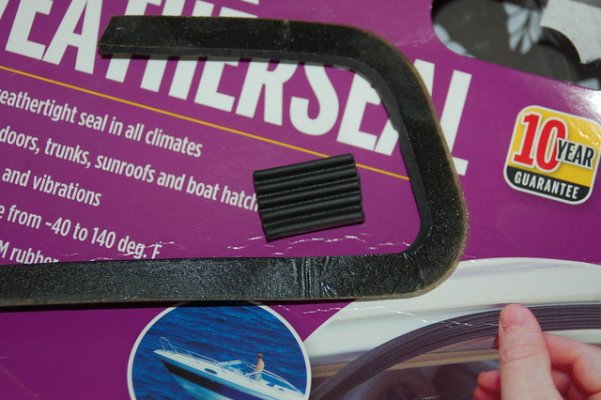

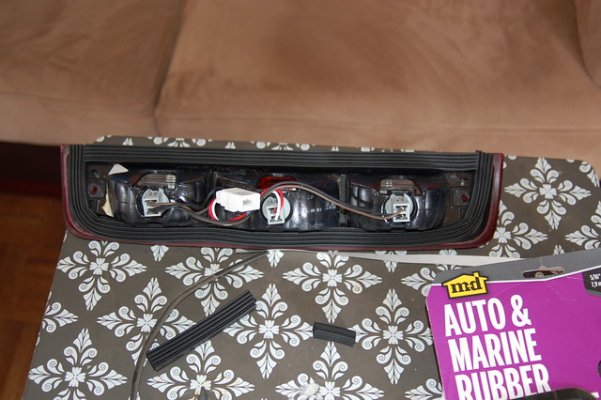

This stuff...
Black Extreme Temperature Auto & Marine EPDM Weatherstrip by MD Building 01033

5/16" thick, 19/32" wide.

This is the one I used. It is significantly thicker than the paper thin stock one.

They had it in stock at Home Depot for $8. There's enough to do it probably 3x. I know because I didn't like my first job so I redid it.


Hipps2000

Senior Member
Joined
Jan 15, 2014
Posts
897
Reaction score
406
Ram Year
2013 Ram 1500 Bighorn
Engine
Hemi 5.7l

Attachments

  • IMG_5173.JPG
    6.9 KB · Views: 359
