SO it looks like I need a new clock spring, no continuity on the four airbag wires from C8 (topside AIRBAG pigtail) to C4 bottom side... Also no continuity from C6 (topside) pin 1 should be white (ground) but is brown (weird) to ground (chassis).Im getting a LIN2 Bus error code along with none of the steering controls work. also the horn does not work.
Guessing when the airbag deploys it kills the clockspring?? a weird side effect, but I guess it could happen with the shock.
I see on this forum a lot of people customize their steering controls. I had not planned on this but this would be the time to do it. DO I need to start with a special clock spring? Example: this is a tradesman and the heated steering wheel wires are just stowed in a blank (empty socket). Dont really need the heated steering wheel, but wanted to ask you all what your favorite modifications are for the steering wheel.
Dont know why I was so hesitant to pull the steering wheel and R and R the clockspring. Here is what I learned. First although they are ingenious designs, they are low quality construction, the ribbon flex-strips are literally just friction fit with the copper strips at the mated ends. 2) there is only one way to put it back together, so dont be intimidated when you pull it apart, and find that there are 4 twisted flex lines and none are connected. 3) Take your time, all said it ws less time tht driving to the nearest junkyard and buying another (unknown pedigree) replacement. 4) the new ones are on backorder, and they are only $350, if you dont wnt to patiently wait, you need patience to fix...
Given there was a large backorder I decided to give it a try:
1) my airbag was removed already if yours is not do so now, (pull Airbag fuse first if you like)
2) unplug all your connectors too and from the clockspring,
3) Remove steering wheel (first remove 13mm bolt), then rock s.wheel side to side while pulling-use wheel puller if necessary
4) use small screw driver to pry the top half of clockspring free from the 4 tabs 9now you have the broken part ready 2 fix
5) from the inside of the white plactic circle (with gears) pry the white plastic off the 4 black tabs

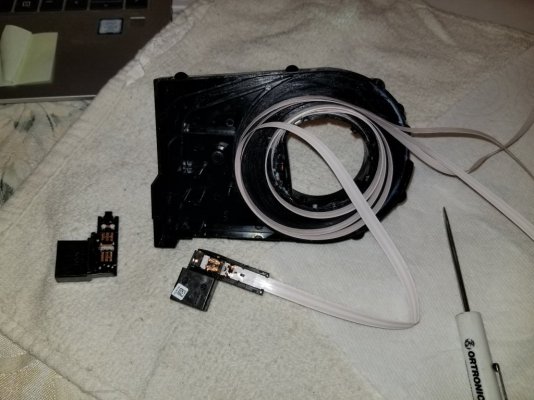

6) this is where the fun begins - you get to see how a clockspring works mine got over rotated - flex cables detached from connectors - remove the connectors - they just snap onand off
7) wrap the flex lines around the hub and then double back towards the little exit that points to the connectors
8) clean the connections, solder the flex lines to the connector copper strips
9) reverse the process to ressemble, checkfor continuity with ohmmeter first to double check your work
10) take wife out in your truck with the money saved. Have Fun
Guessing when the airbag deploys it kills the clockspring?? a weird side effect, but I guess it could happen with the shock.
I see on this forum a lot of people customize their steering controls. I had not planned on this but this would be the time to do it. DO I need to start with a special clock spring? Example: this is a tradesman and the heated steering wheel wires are just stowed in a blank (empty socket). Dont really need the heated steering wheel, but wanted to ask you all what your favorite modifications are for the steering wheel.
Dont know why I was so hesitant to pull the steering wheel and R and R the clockspring. Here is what I learned. First although they are ingenious designs, they are low quality construction, the ribbon flex-strips are literally just friction fit with the copper strips at the mated ends. 2) there is only one way to put it back together, so dont be intimidated when you pull it apart, and find that there are 4 twisted flex lines and none are connected. 3) Take your time, all said it ws less time tht driving to the nearest junkyard and buying another (unknown pedigree) replacement. 4) the new ones are on backorder, and they are only $350, if you dont wnt to patiently wait, you need patience to fix...
Given there was a large backorder I decided to give it a try:
1) my airbag was removed already if yours is not do so now, (pull Airbag fuse first if you like)
2) unplug all your connectors too and from the clockspring,
3) Remove steering wheel (first remove 13mm bolt), then rock s.wheel side to side while pulling-use wheel puller if necessary
4) use small screw driver to pry the top half of clockspring free from the 4 tabs 9now you have the broken part ready 2 fix
5) from the inside of the white plactic circle (with gears) pry the white plastic off the 4 black tabs
6) this is where the fun begins - you get to see how a clockspring works mine got over rotated - flex cables detached from connectors - remove the connectors - they just snap onand off
7) wrap the flex lines around the hub and then double back towards the little exit that points to the connectors
8) clean the connections, solder the flex lines to the connector copper strips
9) reverse the process to ressemble, checkfor continuity with ohmmeter first to double check your work
10) take wife out in your truck with the money saved. Have Fun
