USB-C plug in Center console armrest

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Jsimon34

Senior Member
Joined
Dec 26, 2016
Posts
212
Reaction score
35
Location
Gallatin, Tn
Ram Year
2020
Engine
Hemi 5.7

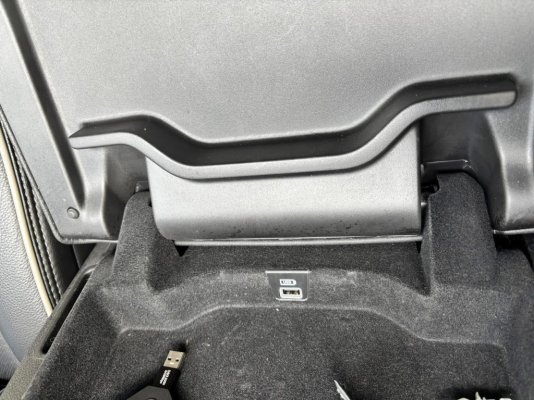

Does anyone know how to access the wires to this port? It doesn’t have power and unsure how to access it as I took rear panel off of center console and I didn’t even see a wire coming from that area. TIA!IMG_0502.jpeg


Infotainment.com

Member
Supporting Vendor
Joined
May 1, 2017
Posts
96
Reaction score
84
Location
Orlando, FL
Ram Year
2016 Ram 1500, 2019 Ram 2500
Engine
6.7
The wiring going to this USB port goes up the rear of the center console then through the driver side hinge of the console.

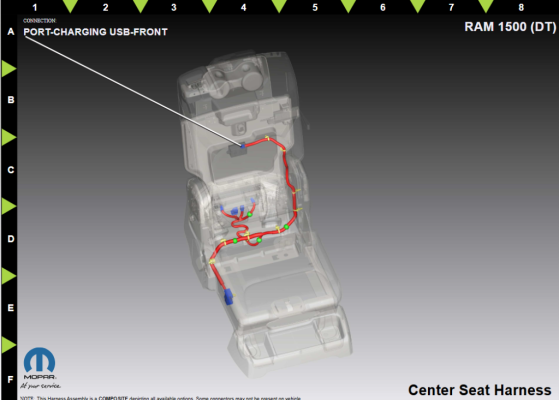

I'll attach some pictures to give you a visual. I'll do both short and long consoles.

Short
Media Port - Short Console 1.PNG
Media Port - Short Console 2.PNG

Long
Media Port - Long Console 1.PNG
Media Port - Long Console 2.PNG

Hope this helps! :)

OP
OP
Jsimon34

Jsimon34

Senior Member
Joined
Dec 26, 2016
Posts
212
Reaction score
35
Location
Gallatin, Tn
Ram Year
2020
Engine
Hemi 5.7

rolsen

Junior Member
Joined
Jul 2, 2025
Posts
1
Reaction score
0
Location
CA
Ram Year
2019
Engine
5.7
The wiring going to this USB port goes up the rear of the center console then through the driver side hinge of the console.
I'll attach some pictures to give you a visual. I'll do both short and long consoles.

Short
View attachment 559326
View attachment 559327

Long
View attachment 559328
View attachment 559329

Hope this helps! :)
I am looking for the USB plug that faces rear and serves the rear seat. Secondarily the 110 inverter that mounts in the front of the long console. does anyone have a source?


Sandevino

Senior Member
Joined
Apr 18, 2020
Posts
1,309
Reaction score
1,844
Location
North Texas
Ram Year
2023
Engine
HEMI 5.7 eTorque
Reach out to Benny at AllMoparParts for the wiring harness and rear 120v outlet.

I purchased the wiring harness for my 2023 from him for my 5th gen.

OP
OP
Jsimon34

Jsimon34

Senior Member
Joined
Dec 26, 2016
Posts
212
Reaction score
35
Location
Gallatin, Tn
Ram Year
2020
Engine
Hemi 5.7
I got the armrest off the center console now I just need to know how to take the armrest lid apart to replace the USB wiring? I don’t want to just start pulling in it and break stuff.
