Next installed the tonneau cover

Next installed the tonneau cover

  • 1
  • 0
They work!

They work!

  • 1
  • 0
I redneck shrink wrapped (electrical tape) the control box and attached to the back of the bed pillar with twomsidednautomotive tape

I redneck shrink wrapped (electrical tape) the control box and attached to the back of the bed pillar with twomsidednautomotive tape

  • 1
  • 0
The control box plugs into the LED strip and also,has an IR eye for the remote

The control box plugs into the LED strip and also,has an IR eye for the remote

  • 1
  • 0
This plugs into the 12V control box

This plugs into the 12V control box

  • 1
  • 0

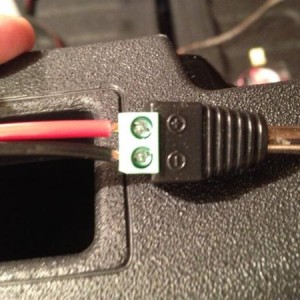

Connect hot and ground wires to a 2.1mm x 5.5mm male adapter

Connect hot and ground wires to a 2.1mm x 5.5mm male adapter

  • 1
  • 0

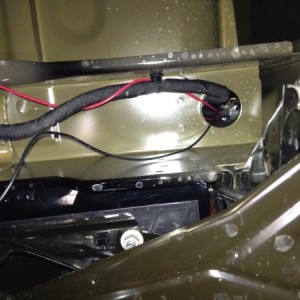

This is where the wires come out underneath the bed.

This is where the wires come out underneath the bed.

  • 1
  • 0

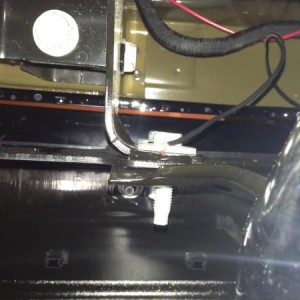

Used this bolt as a good contact point for the ground

Used this bolt as a good contact point for the ground

  • 1
  • 0
I tapped into the hot lead (red and purple wire) going to the trailer plug.

I tapped into the hot lead (red and purple wire) going to the trailer plug.

  • 1
  • 0
Looking down from the top of the rear bed pillar

Looking down from the top of the rear bed pillar

  • 1
  • 0

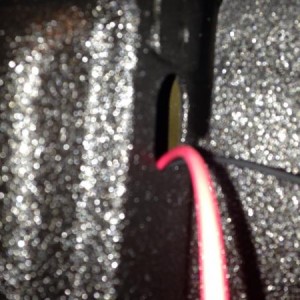

Utilized the hole in the back bed pillar to run power and ground wires under the bed

Utilized the hole in the back bed pillar to run power and ground wires under the bed

  • 1
  • 0

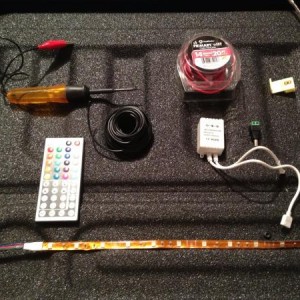

Most of the equipment I used

Most of the equipment I used

  • 2
  • 0
Recontango

Bed lighting install

A few pics of how I put in my LED bed strip lights. Not rocket science I know, but turned out pretty good.
