Replacing my 360 engine in my 2001 dodge ram with a 360 from a 98 ram. Loss of power and high voltage codes. So here it is... When replacing my 2001

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

stevieb21978

Junior Member
Joined
Oct 8, 2023
Posts
5
Reaction score
0
Location
Cedar hill, MO
Ram Year
2001
Engine
360
So I blew up my 360 engine in my 2001 dodge ram 1500 sport 4wd. I found another 360 engine from a 98 Dodge ram. When buying it I did not notice a difference but whenever I went to put it in I noticed that the injector plugs on the harness were different on the two engines The 98 engine had a fatter injector with a different plug so I switched out the fuel rail from my 2001 and put it on the 98 as I got a little further I noticed that the alternator was also just slightly different so I used the 2001 alternator on the 98 engine as well however now I'm getting codes saying that I have high voltage on bank 1 sensor one and the 02 sensor is brand new and it is also telling me that I have high voltage on My manifold absolute pressure circuit and two repair immediately what is so different between the 98 and 2001 Dodge 360 engines that would cause this issue for me the truck also has very little power taking off and will hardly back up a hill or go up a hill from a dead stop. Please somebody help me figure this out

OP
OP
S

stevieb21978

Junior Member
Joined
Oct 8, 2023
Posts
5
Reaction score
0
Location
Cedar hill, MO
Ram Year
2001
Engine
360

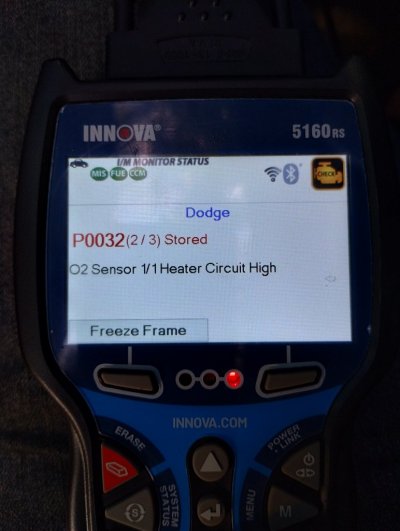

Here are the codes


Attachments

  • IMG_20230925_180233006_HDR.jpg
    93.5 KB · Views: 4
  • IMG_20230925_180233006_HDR.jpg
    93.5 KB · Views: 4
OP
OP
S

stevieb21978

Junior Member
Joined
Oct 8, 2023
Posts
5
Reaction score
0
Location
Cedar hill, MO
Ram Year
2001
Engine
360

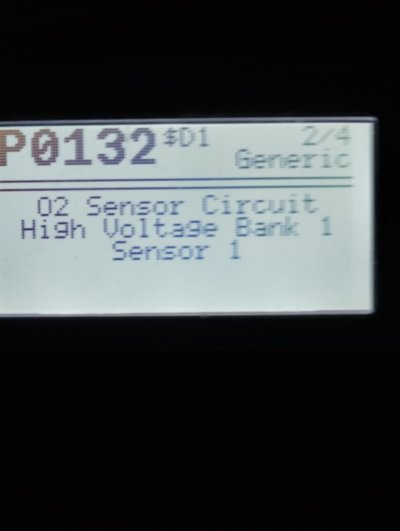

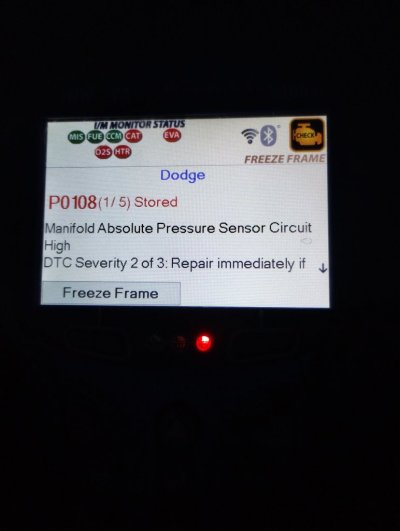

More codes


Attachments

  • IMG_20230925_191045052.jpg
    62 KB · Views: 1
  • IMG_20230927_210646631.jpg
    42.2 KB · Views: 1

GTyankee

Senior Member
Supporting Member
Military
Joined
Nov 2, 2020
Posts
10,151
Reaction score
12,797
Location
El Cajon Calif. 92021
Ram Year
2016
Engine
3.0 ecodiesel
are your 02 sensors out of an Auto Parts Store ?

What you might do ......................
Go to RockAuto & check the 1998 02 sensors, against the 2001 02 sensors


Your trucks computer will be looking for the sensors used in 2001


IN 2001, the Mopar 02 sensors were made by NTK
