How To: Bedside Utility Racks

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

OP
OP
bryce88

bryce88

Senior Member
Joined
Jun 20, 2018
Posts
330
Reaction score
326
Location
Utah
Ram Year
2015
Engine
5.7L Hemi
Any trick to tracing the profile of the wheel well? Did you do just do a little trial and error, eyeballing it, until it looked just right?
Yeah pretty much. Start with a rectangle of cardboard and then cut away more and more of the area of the wheel well until you get the fit you want. Same goes for the area around the tiedown point near the tailgate. I just held it in place, used a pencil to draw how much I thought needed to be taken away (erring on the side of not taking too much) and then cut it out. You can always tape some more cardboard and try again if you cut away too much.

Sent from my Pixel 2 XL using Tapatalk


grumpygirl

Member
Joined
Aug 2, 2016
Posts
62
Reaction score
67
Location
Las Vegas NV
Ram Year
2016
Engine
Hemi 5.7
Adding this to my DIY list. Two quick questions what size rivnuts did you use and what diameter was your nylon rod for the stand offs.


grumpygirl

Member
Joined
Aug 2, 2016
Posts
62
Reaction score
67
Location
Las Vegas NV
Ram Year
2016
Engine
Hemi 5.7

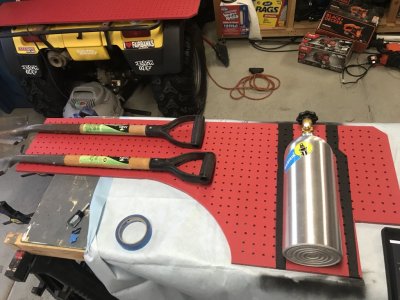

Did a little more work on my racks. Still waiting on the rivnut gun so I can mount them.





RJH104

Junior Member
Joined
Sep 9, 2021
Posts
1
Reaction score
0
Location
utah
Ram Year
2010 1500
Engine
hemi
Hi Bryce, if i may ask, where did you get the plastic from here in utah? This is a pretty cool set up. Thx for sharing


bruce219

Senior Member
Joined
Apr 28, 2016
Posts
529
Reaction score
285
Location
ca
Ram Year
2015
Engine
pentastar
Dude, thats fantastic. Very tidy and convenient


Spsully

Senior Member
Military
Joined
Jan 29, 2022
Posts
229
Reaction score
241
Location
34450
Ram Year
2004
Engine
Hemi 5.7
so all these years later, Im searching google and it gives me this link. Going to use this as motivation on mine for sure. I probably will do the peg board like you said you wouldnt do. but instead of putting nuts on the back, I just add rivnuts to each hole as I need to add stuff. Thank you for the inspiration. Its EXACTLY what I was looking for.


Jigs-n-Fixtures

Junior Member
Joined
May 23, 2024
Posts
6
Reaction score
7
Location
Salmon
Ram Year
2008
Engine
Cummins
I know this thread is pretty much dead. But just for folks who find this in the future, I'm going to anser this question:
How to scribe to an edge. To get the bottom profile matching the bed, you set the template material on the wheel well. (I use 5/16 tempered hardboard). Then set a compass so the pointy end touches the bottom of the bed, and the pencil, just touches teh bottom of teh template material. Then scribe a pencil line keeping the pencil directly above the point, on the bed. This is scribed line. Then cut along that line.
