under hood light picture.

[Wbhvacer]

Can someone take a picture of how the under hood light wiring routing , i ordered the kit but no instructions on how to route the wiring.



[R.L.K.]

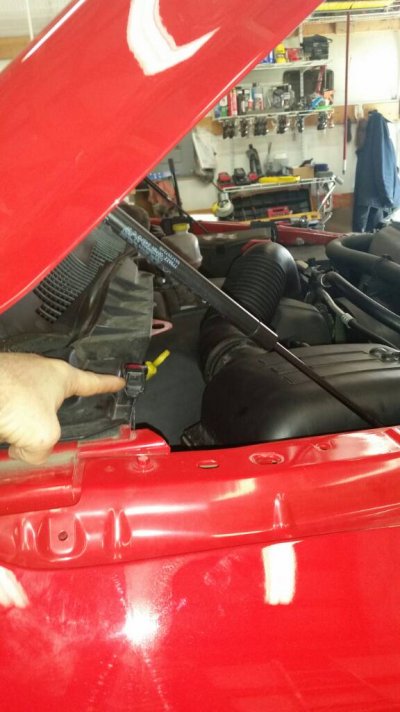

I may still have a picture , I'll have to look for that , but if your standing in front of the truck with the hood up , L/S aft engine area there is an unused connector , with a red dummy plug in it . That's the one and the routing is pretty self explanatory from what I remember .
Hope this helps !



[Wbhvacer]

I may still have a picture , I'll have to look for that , but if your standing in front of the truck with the hood up , L/S aft engine area there is an unused connector , with a red dummy plug in it . That's the one and the routing is pretty self explanatory from what I remember .
Hope this helps !

Thanks for the reply.

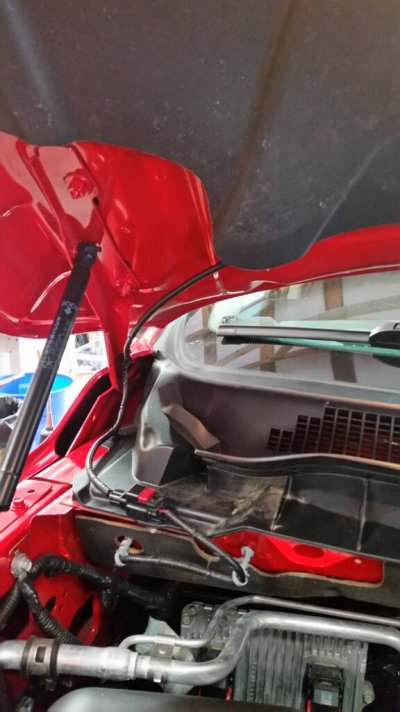

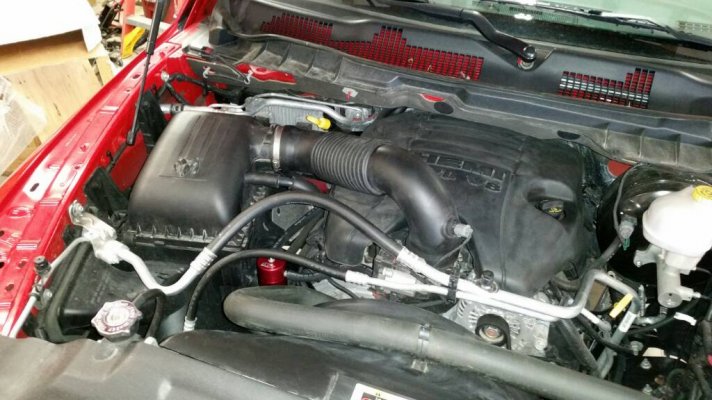

Trying to figure out where Christmas trees connect see picture for explanation.
Had extra wiring length left over so i ran this way just wanted to see the correct routing.



[Ricks Ram]

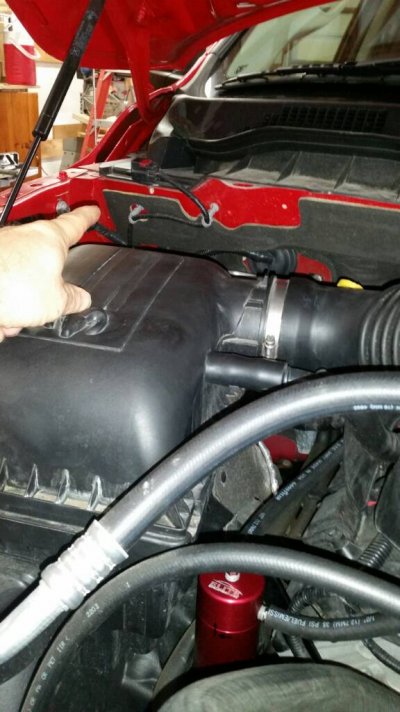

When I did mine the Christmas trees did not line up to the last holes on the bottom near the plug. I had to actualy shorten the wire for a clean install. If you are having trouble in that area it's because yours is to long like mine was. I just pulled back the cover and cut the wires and shortened it near the plug. Then I soldered then back together and covered it with shrink tubing and slid the cover back over. You cannot see where I shortened it. Unfortunately I no longer have the directions but the harness was to long no matter how I routed it. Not sure why it was too long. It was the correct part number. This is a picture of mine after I shortened it.



[R.L.K.]

Oh , I didn't realize you had a 2015 , yours is different from mine and Rickman 2014 , mine is just like ricksrams, my kit harness was perfect in length . I obtained mine from www.moparparts.com



[Wbhvacer]

Oh , I didn't realize you had a 2015 , yours is different from mine and Rickman 2014 , mine is just like ricksrams, my kit harness was perfect in length . I obtained mine from www.moparparts.com

Thanks ill have to "adjust " my length lol.
