I am currently installing an Alpine Halo9 ilx f258 in my 2013 Ram Big Horn. Has a Uconnect 5.0. I am pretty good to go with everything except two things.

1. I have never used Axxess ASWC-1 and when I type my information in on their website it does not give me wiring instructions. Does anyone know where I can find this or is there a how to?

2. The radio came with an orange with white stripe wire which I assume is the dimmer wire. Do I just hook that up to the Orange illumination wire? Thanks!



[jkendall4]

Of course right after I post I found this. Is this accurate.

http://www.metraonline.com/files/aswc/ASWC-1_INST_153.pdf

Also probably dumb question, but do I leave the wires from the Axxess ASWC-1 plugged in? I disconnect them out, right?



[1500ram12]

Does the alpine have a 3.5mm jack in the back for steering wheel controls?

Yes the orange/white is dimmer and connects to the orange wire


2018 Ram 2500 6.4L Hemi Tradesman



[jkendall4]

Does the alpine have a 3.5mm jack in the back for steering wheel controls?

Yes the orange/white is dimmer and connects to the orange wire


2018 Ram 2500 6.4L Hemi Tradesman

Looks like I have a rear aux input in the back.



[1500ram12]

Looks like I have a rear aux input in the back.

Do you have this connector?

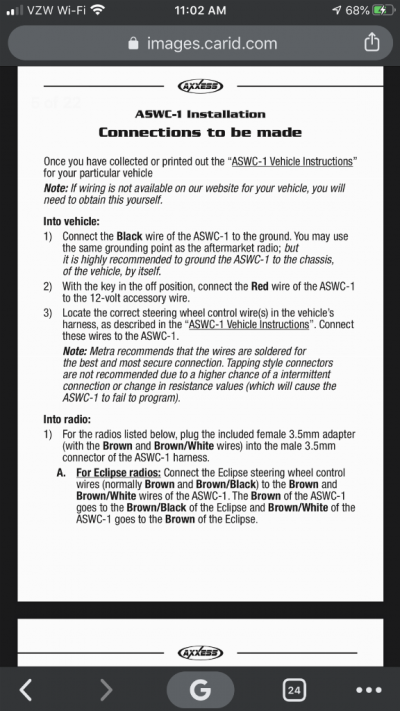

then all you need to do is follow these






2018 Ram 2500 6.4L Hemi Tradesman



[jkendall4]

No. I just have the pre out and power ones



[1500ram12]

No. I just have the pre out and power ones

Do you have this




2018 Ram 2500 6.4L Hemi Tradesman



[jkendall4]

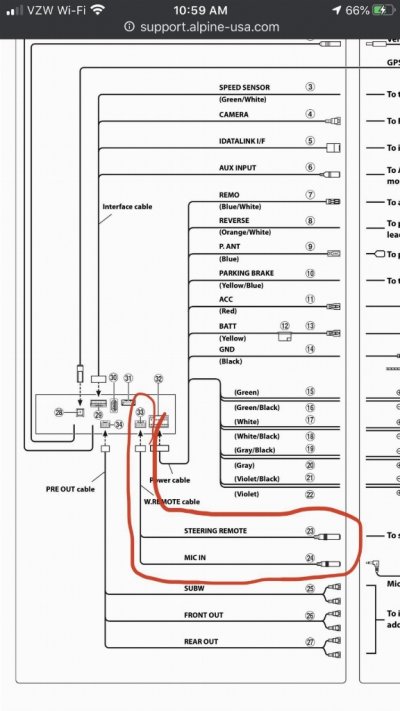

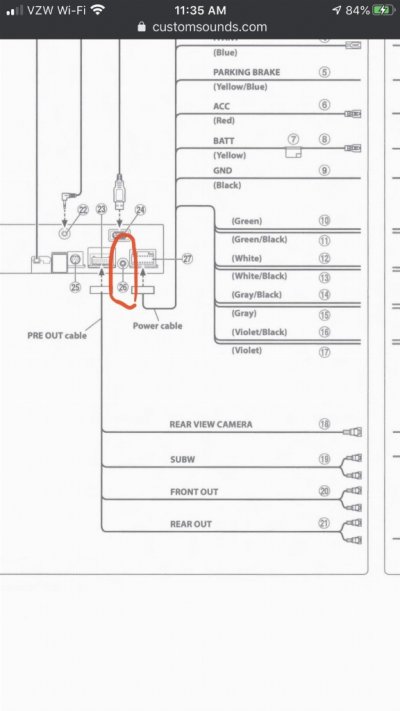

I believe so. This might help.



[1500ram12]

That should be your steering wheel control input


2018 Ram 2500 6.4L Hemi Tradesman



[jkendall4]

That should be your steering wheel control input


2018 Ram 2500 6.4L Hemi Tradesman

So itll basically be plug and play? All I will use is the red and black wire from the aswc-1?



[1500ram12]

So itll basically be plug and play? All I will use is the red and black wire from the aswc-1?

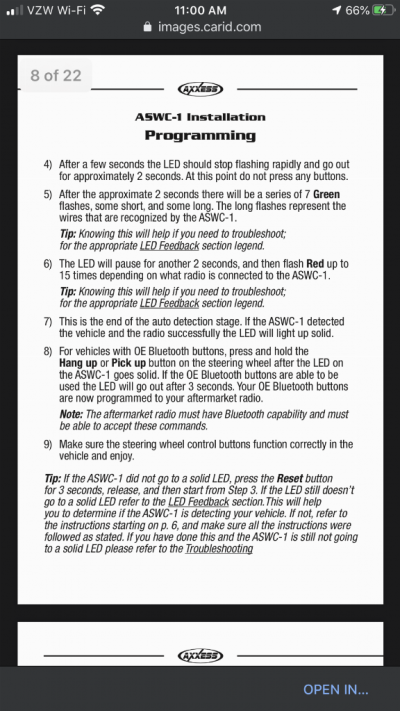

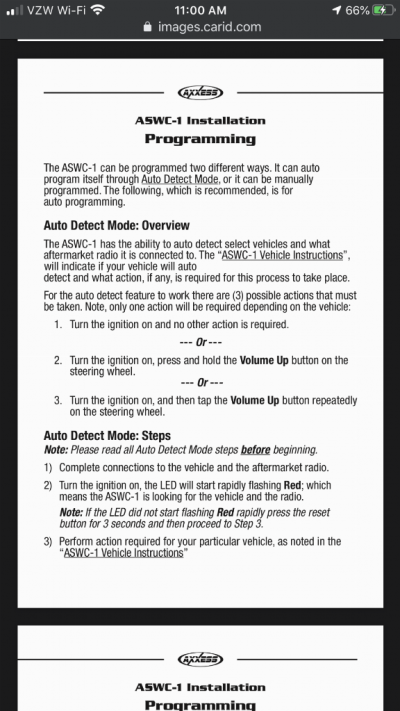

Should be. You may have to "program" it. Just follow the instructions


2018 Ram 2500 6.4L Hemi Tradesman



[jkendall4]

Alright, Thanks. I think I got it. Planning on knocking this out this week.



[jkendall4]

Started a new forum but probably should have came here first since a lot of you guys have the alpine.
Quick question I have a 2013 uconnect 5.0 no alpine and I am connecting a halo9 up. I got everything I needed from crutchfield but I’m getting no power to my head unit. Did anyone else have a similar problem?

any ideas?



[1500ram12]

What adapter did you get to go from the factory wiring to the radio?


2018 Ram 2500 6.4L Hemi Tradesman



[jkendall4]

What adapter did you get to go from the factory wiring to the radio?


2018 Ram 2500 6.4L Hemi Tradesman

axxess lc-chrc-01

Which I think there’s been problems with searching old forums
