Rear axle question. Repairable?

Discussion in 'Exterior' started by freddiepereyra1, Sep 12, 2018.

Sponsored By: BAK Factory Outlet
  1. freddiepereyra1

    freddiepereyra1 Junior Member

    Age:
    36
    Posts:
    7
    Likes Received:
    0
    Joined:
    Sep 12, 2018
    Location:
    US
    Ram Year:
    2003
    Engine:
    Hemi 5.7
    My 2003 5.7 rwd took some damage last night and I was wondering if this was repairable. It's the rear drivers side
    https://imgur.com/a/3AmQw3O
    https://imgur.com/a/r8WPrwA

    I'd like to know if the entire rear axle assembly needs to be replaced or if that shaft is removable for a new replacement.
    [​IMG][​IMG][​IMG][​IMG][​IMG]

    Sent from my SM-G950U using Tapatalk

  2. pacofortacos

    pacofortacos Member

    Posts:
    75
    Likes Received:
    45
    Joined:
    Apr 18, 2017
    Ram Year:
    2016
    Engine:
    5.7
    The axle is replaceable.
    But what happened to cause the axle to snap?

    BWL and McBroom like this.
  3. HemiLonestar

    HemiLonestar Senior Member

    Posts:
    2,405
    Likes Received:
    674
    Joined:
    Jun 1, 2012
    Location:
    MD
    Ram Year:
    2003
    Engine:
    5.7 hemi
    That's impressive, how'd you manage that lol? It looks like you tore the whole parking brake assembly off with it. Yes, you can slide that axle shaft out and replace it, but you might wanna replace that backing plate if you want your parking brake shoes to actually sit where they're supposed to (or weld up and redrill the holes).

  4. freddiepereyra1

    freddiepereyra1 Junior Member

    Age:
    36
    Posts:
    7
    Likes Received:
    0
    Joined:
    Sep 12, 2018
    Location:
    US
    Ram Year:
    2003
    Engine:
    Hemi 5.7
    I hit a pocket of water on the freeway and lost control. Not sure how it happened but I also snapped the front passenger side hub as well

    Sent from my SM-G950U using Tapatalk

  5. freddiepereyra1

    freddiepereyra1 Junior Member

    Age:
    36
    Posts:
    7
    Likes Received:
    0
    Joined:
    Sep 12, 2018
    Location:
    US
    Ram Year:
    2003
    Engine:
    Hemi 5.7
    Any chance you can point me to a write up to replace the axle shaft? Part number?

    Sent from my SM-G950U using Tapatalk

  6. HemiLonestar

    HemiLonestar Senior Member

    Posts:
    2,405
    Likes Received:
    674
    Joined:
    Jun 1, 2012
    Location:
    MD
    Ram Year:
    2003
    Engine:
    5.7 hemi
    Download the factory parts and service manuals (they're in a sticky on this site). These will have everything you need. Basically you'll have to drain it, pop the cover, unbolt the and remove the pin, pop the c clip out then you can remove what's left of the axle shaft. You can use the driver's side axle and backing plate from any 02-08 1500. You should get a seal while you're at it, that one looks dicked in the pic.

  7. freddiepereyra1

    freddiepereyra1 Junior Member

    Age:
    36
    Posts:
    7
    Likes Received:
    0
    Joined:
    Sep 12, 2018
    Location:
    US
    Ram Year:
    2003
    Engine:
    Hemi 5.7
    Is there a axle shaft on the Summit Racing website that will fit?

    Sent from my SM-G950U using Tapatalk

  8. pacofortacos

    pacofortacos Member

    Posts:
    75
    Likes Received:
    45
    Joined:
    Apr 18, 2017
    Ram Year:
    2016
    Engine:
    5.7
    Here is the biggest thing I would worry about.
    Did it possibly bend the rear housing? If so (and it may be hard to tell without really doing a bunch of measurements) you may be much further ahead to just get a complete rear axle assembly from an auto wreckers.

    To replace the whole assembly isn't too bad. This is route I would go.

    To replace the axle, you need to
    remove the rear diff cover and drain the gear oil,
    On older trucks (I think this is similar but not certain), you pushed in the axle, removed the C clip and pulled the axle out.
    Will need to replace the end housing bearing and seal,
    Replace the backing plate and brake parts.
    However if the housing is bent at all, you will have all types of issues.

    freddiepereyra1 likes this.
  9. pacofortacos

    pacofortacos Member

    Posts:
    75
    Likes Received:
    45
    Joined:
    Apr 18, 2017
    Ram Year:
    2016
    Engine:
    5.7

    That is a lot of force required to snap those 2 pieces, I would worry about bent parts.

    freddiepereyra1 likes this.
  10. freddiepereyra1

    freddiepereyra1 Junior Member

    Age:
    36
    Posts:
    7
    Likes Received:
    0
    Joined:
    Sep 12, 2018
    Location:
    US
    Ram Year:
    2003
    Engine:
    Hemi 5.7
    So I was able to get a hold of a steering knuckle to replace the broken on and I pretty much finished the front passenger side.

    So I moved on to the rear axle shaft. I decided to replace both since I was going to have the differential open anyway. I removed both axles easily and decided to replace the seals and bearings. Bearings and seals went in without a problem.

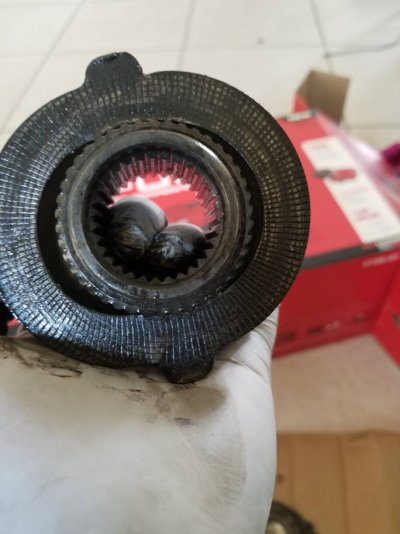

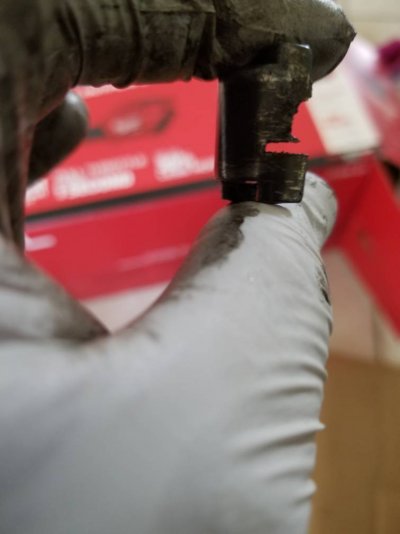

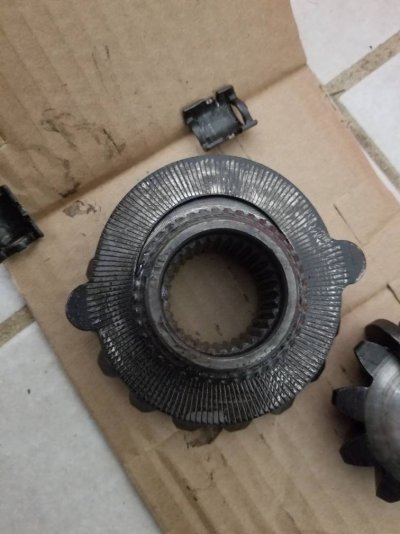

    So here is where my problem starts. As I am sliding in the driver side axle I hear a noise like something fell into my oil bucket. Go under to check what it was and I see one or the spider gears in the bucket. It didn't seem like a big deal so I try to put it back in. I then notice the side gear and all the little plates also came out of position.

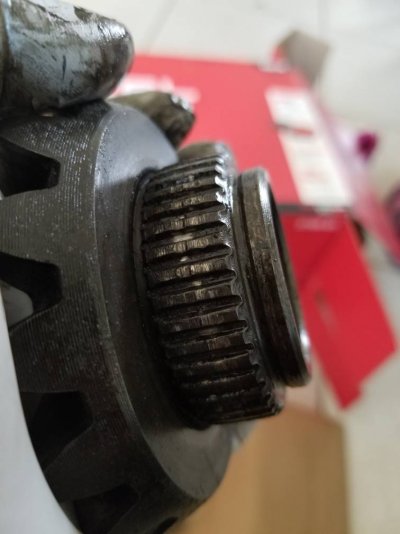

    After about 30 minutes I finally get the side gear back in place with all the plates in the correct position. So I push the axle shaft through the side gear while holding it with my hand. It slips right in so I install the c clip back in place on both axles.

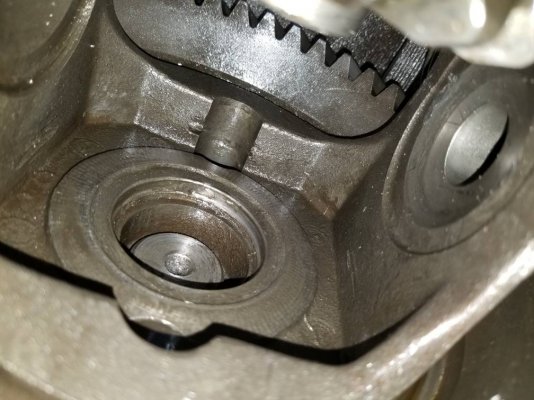

    I put one spider gear in with the thrust washer while turning the axle shaft. The problem is I can't get it to slip in to place. It jams up against the (carrier?). So I try it without the thrust washer and still it doesn't go in.

    After several hours of trying to get the spider gears back in the differential I still couldn't get them in. Has anyone done this successfully? Pointers/tricks? Sorry for the long post

    Sent from my SM-G950U using Tapatalk
