Information on premium cluster upgrade

[stimpy433]

Can anyone help?

It still shows the same truck.



[circuitguy]

It still shows the same truck.

No word on this yet. Mine still shows a quad cab.



[kad]

No word on this yet. Mine still shows a quad cab.

Logic would dictate that it pick up the body style from the Body Style option in the BCM, not that all things on our trucks are logical...

Vehicle Configuration set in the Body Computer:
Vehicle Config 1:
    Body Style: 4-Door Pickup

-K



[kad]

should a 2016 7" evic cluster work in a 2014 express fully? maybe that's the issue i'm having with the turn-by-turn not displaying correctly. i also have a 2014 8.4an vp4.

Hmm.. I have a similar setup. My 2014 came with the 3.5" EVIC and an RA2 Radio. I replaced the EVIC with a 7" out of another '14 (not sure what, just a '14 RAm of some sort) a few months ago and I just replaced the RA2 with an RA4 out of a 2016 two days ago. After reading your posts I turned the turn-by-turn setting on and took it for a run, it seemed to work well, I got the turn images on the EVIC. So, that at least indicates that it's not an issue with '14 trucks.

-K



[circuitguy]

Logic would dictate that it pick up the body style from the Body Style option in the BCM, not that all things on our trucks are logical...

Vehicle Configuration set in the Body Computer:
Vehicle Config 1:
    Body Style: 4-Door Pickup

-K

Mine never did. I am sure there is a way to make it correct.



[Wolfpup]

Anybody know how to take the lens and mask off, put on a new lens and mask on the 13+ premium IPC?

I can’t seem to find a write-up... or, I’m looking for the wrong thing.



[R.L.K.]

Anybody know how to take the lens and mask off, put on a new lens and mask on the 13+ premium IPC?

I can’t seem to find a write-up... or, I’m looking for the wrong thing.

Yep it's really simple in my opinion .

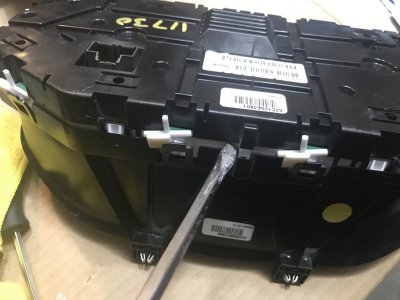

Place a small wedge such as a flat tip screwdriver between the white cluster and the black mask mounting tangs like this .

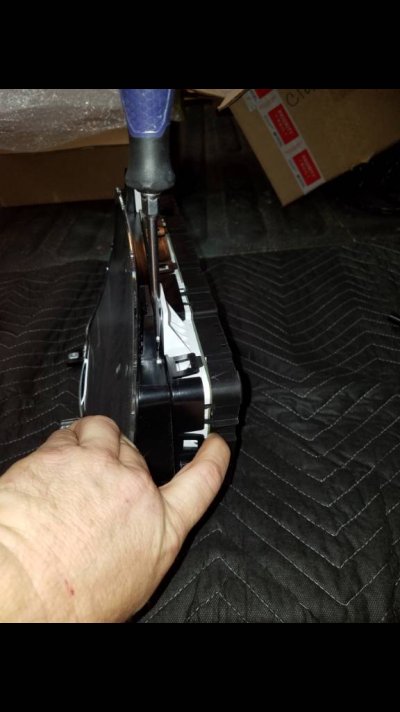

Then release the 10 ea plastic tabs with your fingers like this .

Sent from my SM-G930V using Tapatalk



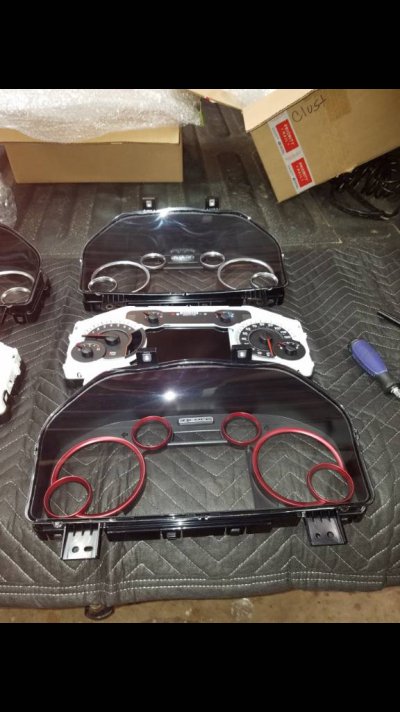

Then simply separate the face mask from the cluster assy like this .

Then take your new mask position it over your cluster being careful to line up the tabs and simply snap it down in place ensuring all tabs are completely locked.

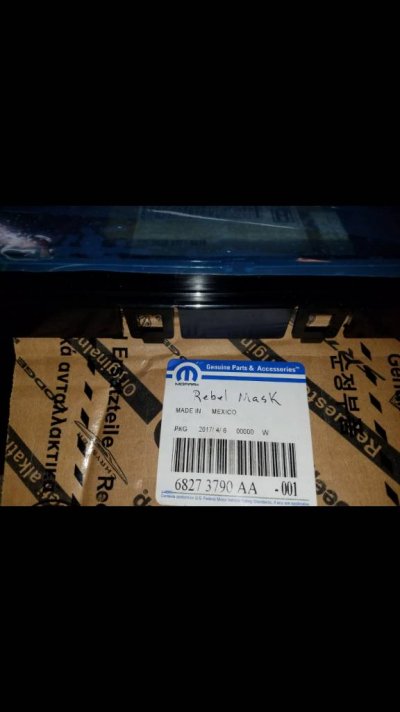

This is the P/N of the mask I used ...it's one from the Rebel interior .




Hope this helps you Sir [emoji1303][emoji1303]



[R.L.K.]

should a 2016 7" evic cluster work in a 2014 express fully? maybe that's the issue i'm having with the turn-by-turn not displaying correctly. i also have a 2014 8.4an vp4.

Did you ever get the turn by turn figured out Sir ?

I have a 14 Ram , a 16 cluster and an upgraded 15 RA4NA ..my truck was an original RA1 & and a 3.5" cluster .
Before I upgraded my Cluster my Nav Showed up in my smaller cluster with a directional turn arrow , street name and distance ..now like yours only street name and distance ?? No arrow indicating which way to turn ? Not a big deal as it shows up in the RA4 radio .
Just wondering if you were able to get the settings right or not .

Sent from my SM-G930V using Tapatalk



[kad]

Did you ever get the turn by turn figured out Sir ?

I have a 14 Ram , a 16 cluster and an upgraded 15 RA4NA ..my truck was an original RA1 & and a 3.5" cluster .
Before I upgraded my Cluster my Nav Showed up in my smaller cluster with a directional turn arrow , street name and distance ..now like yours only street name and distance ?? No arrow indicating which way to turn ? Not a big deal as it shows up in the RA4 radio .
Just wondering if you were able to get the settings right or not .

Sent from my SM-G930V using Tapatalk

Hmm.. I have a '14 truck, a '14 cluster and a '16 RA4 running the 17.11.07 firmware. The truck originally had an RA2 and a 3.5" cluster. The cluster was upgraded several months before the radio. The turn info including graphics is showing in my cluster. The only thing I can think of that I did was set the "Nav turn by turn customer settings menu:" setting in the BCM a couple of days before installing the radio.

-K



[Wolfpup]

never figured it out. i also lost the "big horn" splash screen after the instrument cluster mileage was corrected. I can re-add it though through the alfaobd "special packages" settings. basically, the cluster lost that graphic display option, but the BCM tells it to display anyway.

maybe a related question, my sirius XM stations just show up as the station name, and a music note on the EVIC. is that normal, or is the station art supposed to display?



[kad]

maybe a related question, my sirius XM stations just show up as the station name, and a music note on the EVIC. is that normal, or is the station art supposed to display?

That's all I get as well. When I first put the cluster in I was assuming that it would display the track info for XM, USB and HD Radio, but if I'm reading the UConnect manual correctly, that whole "Audio" page on the cluster is pretty pointless. Just displays the source, that's it.

-K



[Wolfpup]

That's all I get as well. When I first put the cluster in I was assuming that it would display the track info for XM, USB and HD Radio, but if I'm reading the UConnect manual correctly, that whole "Audio" page on the cluster is pretty pointless. Just displays the source, that's it.

-K

does the "P" (park) flash on your cluster while in park?



[kad]

does the "P" (park) flash on your cluster while in park?

I don't recall it doing so, but I'll check this evening on the way home and let you know. I thought I recalled that meaning something specific though...

-K

Edit: I found this reference on the flashing P: https://www.ramforum.com/threads/p-in-gear-select-window-blinking-on-off-green.92445/



[stimpy433]

Hmm.. I have a similar setup. My 2014 came with the 3.5" EVIC and an RA2 Radio. I replaced the EVIC with a 7" out of another '14 (not sure what, just a '14 RAm of some sort) a few months ago and I just replaced the RA2 with an RA4 out of a 2016 two days ago. After reading your posts I turned the turn-by-turn setting on and took it for a run, it seemed to work well, I got the turn images on the EVIC. So, that at least indicates that it's not an issue with '14 trucks.

-K

I need to get everything so I can try turning on the "turn-by-turn" and see if that fixes my problem.



[Wolfpup]

I don't recall it doing so, but I'll check this evening on the way home and let you know. I thought I recalled that meaning something specific though...

-K

Edit: I found this reference on the flashing P: https://www.ramforum.com/threads/p-in-gear-select-window-blinking-on-off-green.92445/

Thanks, I read it. It could be a software flash, then. I tried another 7" cluster recently, and it doesn't blink like that. So, it's not the truck, it's the cluster. i hope a software flash fixes that, or even if the dealer will flash it. maybe i'm lucky and it'll be a recall fix or something.



[Tim7139]

Yep it's really simple in my opinion .

Place a small wedge such as a flat tip screwdriver between the white cluster and the black mask mounting tangs like this ...

Letting it warn up to room temperature helps.



[R.L.K.]

Letting it warn up to room temperature helps.

Yes sir , I certainly would not try this in a shop / Garage when it's cold out . The plastic clips would likely break [emoji1303]

Sent from my SM-G930V using Tapatalk



[R.L.K.]

Bump [emoji16]

Sent from my SM-G930V using Tapatalk



[Ramit2016]

Yes sir , I certainly would not try this in a shop / Garage when it's cold out . The plastic clips would likely break [emoji1303]

Sent from my SM-G930V using Tapatalk

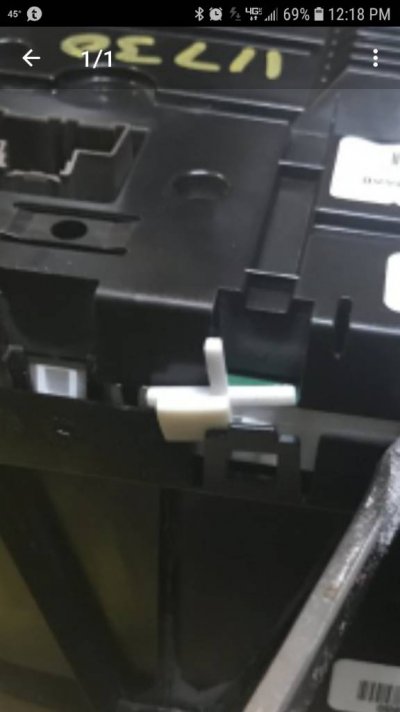

I used tile wedge shaped tile spacers when i took mine apart ($3 at home depot). Then just went around the edges with a flathead.



[R.L.K.]

View attachment 147771
I used tile wedge shaped tile spacers when i took mine apart ($3 at home depot). Then just went around the edges with a flathead.

That's a great idea !

Sent from my SM-G930V using Tapatalk
