Need some 2004 ram hemi info

[jotin]

I actually need some under hood pictures of the wiring harness at the PCM for a 2004 ram 1500 with a 5.7 hemi. I’m trying to figure out how many connectors are at the PCM and where the connectors come from. I was recently give it a 2004 harness to convert to a 2005 for the 05 Swap. But it looks like the 04 harness is much different than the 03 harness. You can either post on here or you can inbox me pictures. Please please help LOL


Sent from my iPhone using Tapatalk



[Snake15eyes1998]

If you go to the garage section of 3rd gen rams. They have manuals and wiring diagrams for our trucks. I think that would be better and more detailed.



[ramman95]

This is a 2004 1500 Quad Cab 5.7L 4X4, that was manufactured in 02/04.



[jotin]

This is a 2004 1500 Quad Cab 5.7L 4X4, that was manufactured in 02/04.

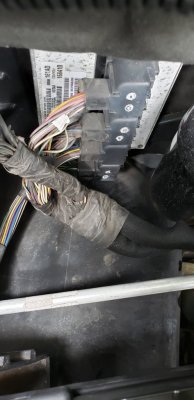

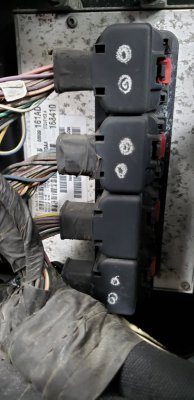

View attachment 217632

View attachment 217633

View attachment 217634

So it looks like the c3 connector to the PCM is not on the main engine harness on an 04. Interesting.
