please identify this plug...

[rambob]

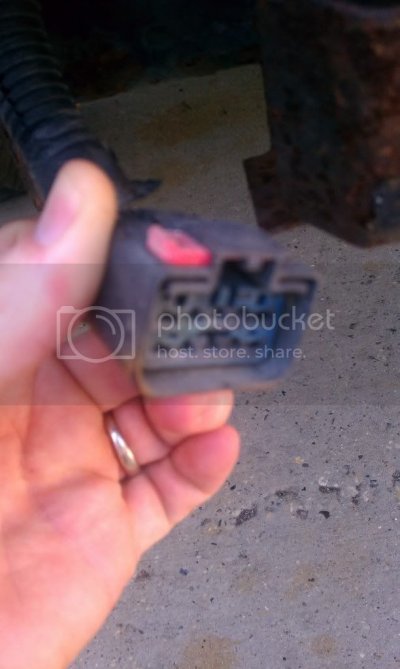

its under the hitch where a trailer plug would be. maybe it's for brakes, but I have no regular 4 pin flat plug.
it has 10 holes, but only 8 are wired. it seams to split and go to the driver taillight and up towards the front.

I need to find an adapter to 4 plug or tap into this if its lights for a 4 plug flat for trailers.



[rambob]

just stumbled on this....

Product Image

$30 plus.
psft, I'm just cutting it off and splice mine in.



[ramhunter9]

LOL you found your issue



[rambob]

lol. thanks. I have been goggling that pos for weeks now. I think I added dodge in the search terms that time.



[ramhunter9]

LMAO ... that helps



[The Assassin]

Google FTW. Glad you were able to find it!



[rambob]

anyone have a diagram of this plug stating which wire is which?



[ramhunter9]

give him a min or two ... he will find it ..LOL

Let me do some digin



[rambob]

give him a min or two ... he will find it ..LOL

Let me do some digin

DING....



TRAILER TOW CONNECTOR - 10 WAY
CAV CIRCUIT FUNCTION
1 - -
2 L62 16BR/RD RIGHT TURN SIGNAL
3 L1 18VT/BK BACK-UP LAMP FEED
4 A6 14RD/OR FUSED B(+)
5 L76 14BK/OR TRAILER TOW RELAY OUTPUT
6 - -
7 B40 14LB TRAILER TOW BRAKE B(+)
8 Z13 14BK GROUND
9 Z13 14BK GROUND
10 L63 16DG/RD LEFT TURN


(4 way)



[rambob]

can we edit the title and turn this into a sticky or INFO thread now that I found the answers?

-I will do a write up with pictures and all the diagrams needed to do this simple swap and save $30.



[ramhunter9]

Ya sounds good , We will leave this thread as is , but feel free to start another one in the 2nd gen DIY section with the same pic ...

Awesome work man
