Stereo wiring diagram

[Petter]

Hi!

Im looking for the whole wiring diagram for the stereo with navigation on my Ram truck from 2012.
I search the internet but can find nothing which is really weird.

Im specially looking for the wires for reverse and (if there is any) for parking brake.

Thanks.



[1500ram12]

Here's what I can find

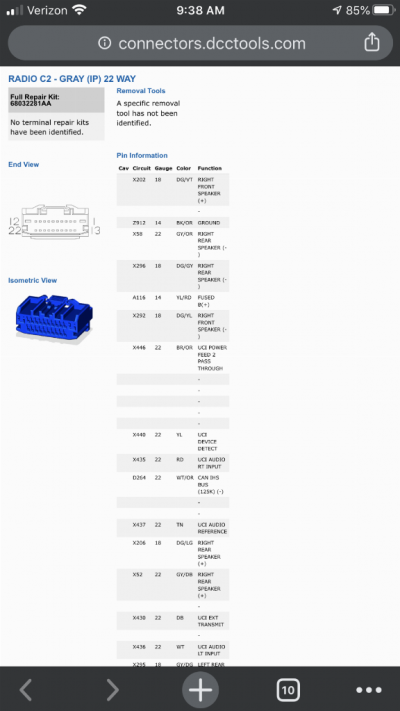

If you are installing a aftermarket radio the adapter harness will have a reverse trigger (pink I think)wire already so all you need to do is tie that to the reverse wire coming off of the new radio. If you need a parking brake feed you'd have to tie into the parking brake wiring


2018 Ram 2500 6.4L Hemi Tradesman



[Petter]

Thanks!
