Aux backup lights installed today

0212353 · Jul 28, 2013

Finally had a moment to put some backup lights on the truck. Kept saying.....when its not blistering hot, and I have some time. The moons aligned today - 75 degrees out, I took advantage! :roflsquared:

Anyway, these are the same LED pods that I have hooked up as DRLs on the truck. We stock them on the site here, if anyone is interested in a very cheap and easy hookup for backup lights (or any aux lighting for that matter) - Morimoto x.DRLs / Backup lights

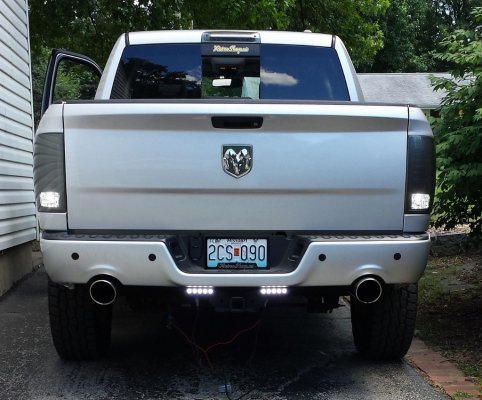

Mounted them to the bottom of the bumper. Thought about between the tailgate and bumper......but - just didn't like the idea. There was also a spot behind the back wheels I thought about, but too much light would be lost from that. I wanted the MOST light output - and this will do that!

Connections were very simple. I pulled the 7 pin connector off, tapped the middle wire (WT/RD) for the positive (thats the reverse wire on the 7 pin) and then grounded on the BK/GY wire. Got the wires out of the way, all done. Took about......25 minutes start to finish. :favorites13:

Pics!

bigbadram1500 · Jul 28, 2013

those look sweet

quietpeen · Jul 28, 2013

awesome

argray90 · Jul 28, 2013

The WT/RD on the 7 pin connector is the reverse light? So much easier then pulling the tail lights. Need to wire mine up for reverse now.

0212353 · Jul 28, 2013

yeah, the one right in the middle. White / Red.

I was getting ready to wire it up, dropped the tailgate, grabbed the tools ........ and went....... "drrrr, 7pin has it!" - saved some time there.

HemiRoar · Jul 28, 2013

woahh! i want!

0212353 · Jul 28, 2013

I have a handful in stock, putting in my stock order now for 10 more!

TRCM · Jul 28, 2013

Same thing I did to my Cherokee, but I used some white driving lights I had bought many years ago for this same thing on my dually. Anyway, they work great, especially when coming out of the woods at night after a day of hunting. Really makes it easy to see what's behind you.

I hard wired mine in with a relay though at the passenger side tail-light.

Vancouver604 · Jul 28, 2013

is it possible to use these on the hood of my sport hood? / \

0212353 · Jul 28, 2013

I'm not sure they'd fit. Here are the overall dimensions:

Height: 28mm
Length: 160mm
Depth (front of LED to back of bracket): 37mm
Depth (front of LED to back of heat sink): 26mm
Depth (Just the heat sink): 14mm

Trupiano · Jul 28, 2013

Very nice! Night shots later?

El phono

0212353 · Jul 28, 2013

yup. still..........not dark. lol

ATXHEMI · Jul 28, 2013

Very nice. Damn your truck barely fits in there.

0212353 · Jul 28, 2013

yeah, she's close! tight fit.

Boosted · Jul 28, 2013

Deadly

LB3711 · Jul 28, 2013

sweet. between the cree reverse lights and now those its gotta be daylight back there

0212353 · Jul 28, 2013

we'll see soon! its starting to darken up around here.

TRXHemi · Jul 28, 2013

I love mine. I ended up running a wire and have a switch to kick them on whenever necessary. I used to pull a trailer so it was handy at night.

0212353 · Jul 28, 2013

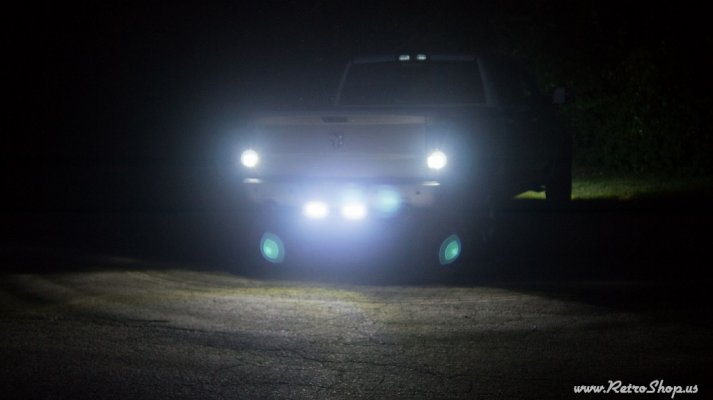

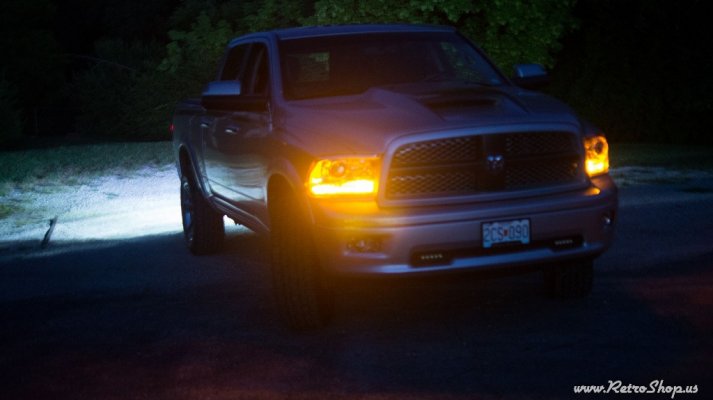

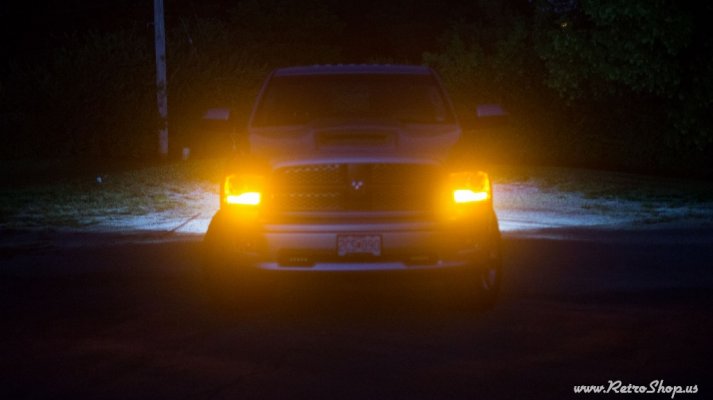

Pic time!!

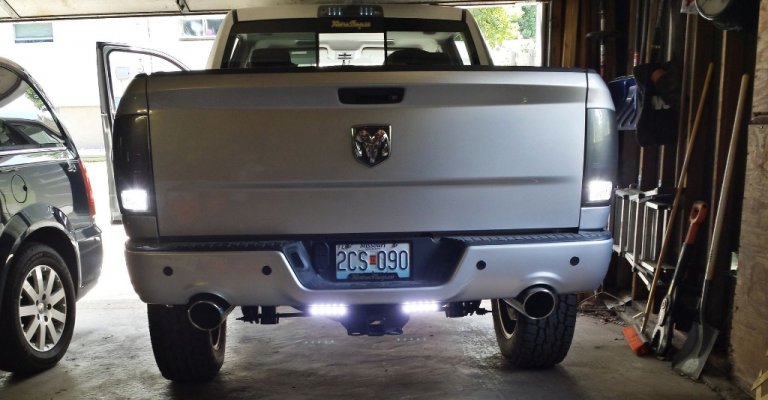

Went up to the warehouse, the first couple shots are about 40 ft away from the wall. Grabbed the wrong lens.....using my 35MM prime lens - so, a lot of stuff looks "closer" than it really is. Second grouping of them is where the trucks go to turn around and stuff, and there's a LOT of room back there.

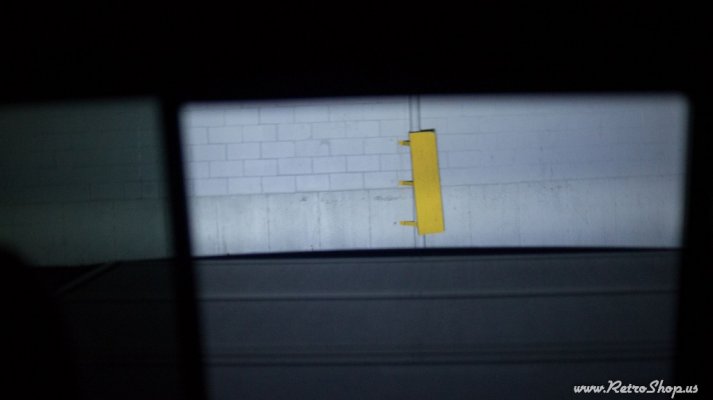

through the closed window, 20% tint.

back window, open. So, the dark spots are 2 "windows" deep

LOFSFIRE · Jul 28, 2013

Looks good! Now think about this, instead of running them off the trailer reverse light wire, run them off a powered relay and set it up to be activated by the trailer wire or a switch mounted in your bed (or spot of your choice). If you go camping or ever need to work around you truck a night just flip the switch and you have work lights too. Those LED can burn a long time without the truck on.
