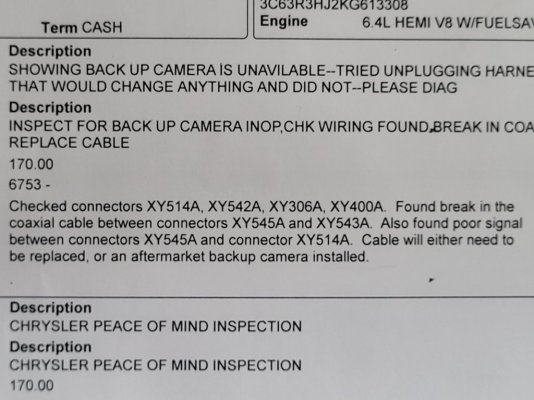

I have an inop backup cam with a break between connectors XY545A and XY543A. Diagnosed by ram dealer.
This is a base model with the small screen, not the 9".
Problem for me is I can't locate that myself by tracing the line, and the only diagram I've found so far doesn't have the XY545A connector listed. Seems to be for the big radio.
Anyone know where these connectors are on the physical truck? Or have a diagram for the wiring on these small radios?
I want to try and crimp repair the coax because they quoted me 1100 to run a new cable from stereo to tailgate, and I can't even track down that cable anywhere.
I have an inop backup cam with a break between connectors XY545A and XY543A. Diagnosed by ram dealer.
This is a base model with the small screen, not the 9".
Problem for me is I can't locate that myself by tracing the line, and the only diagram I've found so far doesn't have the XY545A connector listed. Seems to be for the big radio.
Anyone know where these connectors are on the physical truck? Or have a diagram for the wiring on these small radios?
I want to try and crimp repair the coax because they quoted me 1100 to run a new cable from stereo to tailgate, and I can't even track down that cable anywhere.
