Brake Controller Install Help 2005 Ram 1500 SLT with Factory 4-Pin

[James Vellenga]

I just picked up a 2005 Ram 1500 SLT that came with a factory 4-pin. In the years following one of the previous owners had installed a 7-Pin connector which at this point looks like it just patched into the 4-pin. I have been busy with bodywork to get it safety certified, but now that I am finished with that, I need to get my brake controller moved over from my other truck. I am hoping to get time to look more carefully to see if maybe someone had installed a brake controller in the past. My question is, did the trucks with a factory 4-pin have any of the wiring for the brake controller? If so, what?

Any other help would be appreciated.



[Fast69Mopar]

I just picked up a 2005 Ram 1500 SLT that came with a factory 4-pin. In the years following one of the previous owners had installed a 7-Pin connector which at this point looks like it just patched into the 4-pin. I have been busy with bodywork to get it safety certified, but now that I am finished with that, I need to get my brake controller moved over from my other truck. I am hoping to get time to look more carefully to see if maybe someone had installed a brake controller in the past. My question is, did the trucks with a factory 4-pin have any of the wiring for the brake controller? If so, what?

Any other help would be appreciated.

To see if your truck is equipped with the factory brake controller wiring harness look under the instrument panel to the left of the brake pedal. You will see a large white, rectangle plug with a 10mm bolt in the middle of it. If you have the factory brake controller wiring you should see a blue connector taped up on to the harness near that large rectangle plug.

Now, for trucks that are equipped with a 4-pin connector for the trailer, most of these trucks do not have the wiring all the way to the rear of the truck for trailer brakes.

If you have the blue connector under the instrument panel then the truck is already wired to the rear for trailer brakes. If you don't find the blue plug then the truck is not wired from the factory for trailer brakes.

If you are going to install the wiring harness for trailer brakes I highly recommend a full plug-n-play setup instead of splicing wires.

This is the kit I would buy...

Amazon.com: Dodge 2002-2009 RAM Trailer Towing Tow Wiring Harness 7 Way Mopar Factory OEM New: Garden & Outdoor

Amazon.com: Dodge 2002-2009 RAM Trailer Towing Tow Wiring Harness 7 Way Mopar Factory OEM New: Garden & Outdoor

www.amazon.com

It is a factory Mopar 7-way harness for our trucks.



[James Vellenga]

Thanks. There is a blue plug, so I am at least partly on the way. Time to get the pigtail and do the wiring.



[Fast69Mopar]

Thanks. There is a blue plug, so I am at least partly on the way. Time to get the pigtail and do the wiring.

Now that we know you have the blue pigtail under the instrument panel, take a look at the rear wiring near the 4-way connector and see if you see a large, rectangle connector. If so, you can purchase just the 7-way jumper connector and then purchase a 7-way connector to mount in the bumper. That way it will all be plug-n-play.



[James Vellenga]

Thanks. I will check that out once I figure out the weird noise I had when I was backing up.



[thenols]

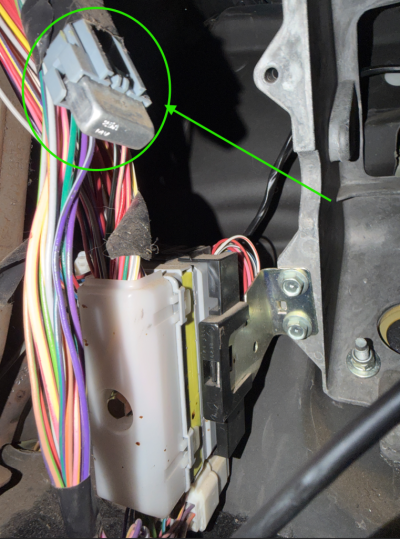

I don't know if this thread is monitored anymore, but if it is, I'm trying to add a trailer brake controller. It looks like the 7 pin connector was factory installed. So I looked under the dash, and this is what i found, and I wanted to confirm it is the blue plug i'm looking for.
Thank you!
