LED pods in rear bumper (pic heavy)

[big_red06]

thanks wasnt sure so what i was thinking was to tap the power of both lights into the reverse wire of the 7 pin and ground them to the frame will that be an ok way to do this



[Rzrman328]

That will work fine.



[big_red06]

thanks



[w6pea]

i have a question i want to mount two of these to come on only for reverse lights can i use the reverse power and ground from my 7 pin trailer connection for two 18 watt lights or is the power draw to much i'm still figuring this diy stuff out so sorry if this has been asked before

On my Old Truck a 95 Ford F-250 I put two work lights on the back of my truck mainly for back up lights. I just taped into the wiring for the reverse lights. When I put the truck in reverse the lights come on. I want to do the same thing with my new 2500 Laramie CC/LB but I would also like to figure out how to wire them so I can turn them on when I need lights to do things behind the truck.



[SETEX 6.4]

On my Old Truck a 95 Ford F-250 I put two work lights on the back of my truck mainly for back up lights. I just taped into the wiring for the reverse lights. When I put the truck in reverse the lights come on. I want to do the same thing with my new 2500 Laramie CC/LB but I would also like to figure out how to wire them so I can turn them on when I need lights to do things behind the truck.

This is what you need to do.
This way when the three way switch is in one position the lights are automatic with the reverse lights.
Having the switch in the middle will turn the lights off completely and flipping the switch to the third position will turn them on whenever you want them to be on manually.

Sent from my SAMSUNG-SM-G900A using Tapatalk



[SETEX 6.4]

Sorry
Maybe this is a little more clear

Sent from my SAMSUNG-SM-G900A using Tapatalk



[Steel Curtain]

Those are some seriously bright lights....Awesome Job, I might have to think about doing this mod



[Kid's HEMI! !!]

Cont'd
Pics:
6) Finished with cuts and mounting holes, and used an oil paint pen to trace all cuts and holes as a rust inhibitor
7) Since the bumper face isn't 100% flat I used foam/rubber as a gasketing material to seal up light bezel to bumper face
8&9) Foam rubber cut and slid onto light

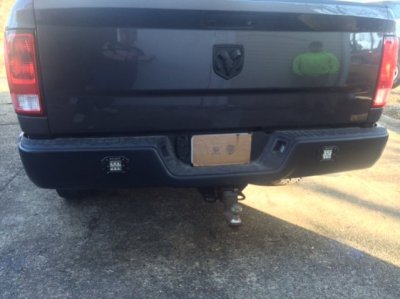

10) LEDs complete;y mounted

I didnt post any of the wiring install bc that will differ depending on how you want them to operate. I have the AUX switches in my dash so all i had to do was run a single 12VDC+ wire to the connection point in the engine compartment. Grounded the other to frame in rear of truck.
