Remote fuse box

[bellaireroad]

Has anyone installed a small remote fuse box for accessories? Where did you put it and what materials did you use? Thanks


Sent from my iPhone using Tapatalk Pro



[Kalill Nieto]

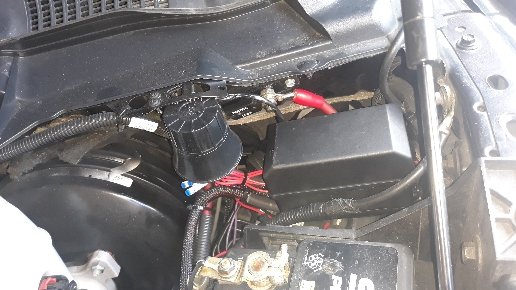

I install this fuse box with relays and a panel switch for a friend.



[Kalill Nieto]

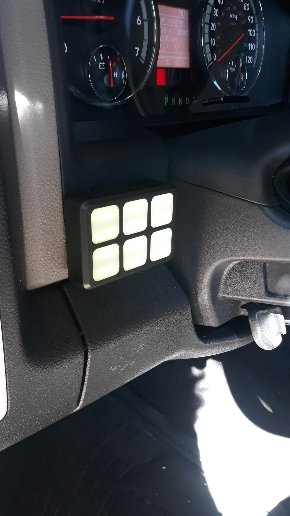

He toll me that some of the Leds in the panel switch are flickering.

https://www.ebay.com/itm/233513546410



[Ramm5.7]

Has anyone installed a small remote fuse box for accessories? Where did you put it and what materials did you use? Thanks


Sent from my iPhone using Tapatalk Pro

Mine is from 4thGenRamElectronics from facebook. Looks like the one Kalill put in, I mounted mine in the same location and its controlled by a oem aux switch setup.
Video is from my WhytRam days but have it in my 19 classic now



[bellaireroad]

Thanks guys, That’s a great looking relay box, I was looking more for a fuse box


Sent from my iPad using Tapatalk Pro



[smoothee]

https://www.painlessperformance.com/wc/70207

I'm using this setup to power accessories. Mounted it to the frame in front of the fuse box. Seems to be a well made kit, they have various different sizes.



[bellaireroad]

thanks, that is exactly what I was looking for



[shadowhawk]

I copied what @JB1 did when he put accessories in. It's an Littelfuse HWB60. You have to wire up what you want/need but it has plenty of room for lots of fuses and relays.

https://www.amazon.com/HWB60-TPAs-BULK-1-EA/dp/B07BYH6LXD



[ToxicFire]

I was just looking at fuse boxes last night. I wanted a 12 blade box. Wanting to install a few led bars,will never need 12 blade spots but thought its only a couple bucks more usually then 6.
Never done this before though so didnt buy nothing and wanting to do more research so now ill watch here lol.

Post up what you used and how it looks



[Roman217]

Check out Blue Sea Systems. They make a lot of marine electrical products. They have quite a few waterproof fuse boxes available in various sizes.

Something like this may be a good option depending on how many circuits you are trying to feed.
https://www.bluesea.com/products/5056/ST-Blade_Water-Resistant_Fuse_Block

If you need higher amperage circuits then the "Safety Hub" may be a good option.



[bellaireroad]

Check out Blue Sea Systems. They make a lot of marine electrical products. They have quite a few waterproof fuse boxes available in various sizes.

Something like this may be a good option depending on how many circuits you are trying to feed.
https://www.bluesea.com/products/5056/ST-Blade_Water-Resistant_Fuse_Block

If you need higher amperage circuits then the "Safety Hub" may be a good option.

Thanks, will give them a look.


Sent from my iPhone using Tapatalk Pro



[Moparfanatic21]

I bought a 48 blade fuse box and used 24 for relays. Just so I can continue to expand. I plan on using 24 as switched power and 24 as constant.

Eaton makes the box. Now I'm trying to find a company that makes wires with tracers



[farmallboy]

I bought a 48 blade fuse box and used 24 for relays. Just so I can continue to expand. I plan on using 24 as switched power and 24 as constant.

Eaton makes the box. Now I'm trying to find a company that makes wires with tracers

Sounds like quite the setup. That on a pickup? What types of accessories you run? And plan to run?!


Sent from my iPhone using Tapatalk Pro



[Moparfanatic21]

Sounds like quite the setup. That on a pickup? What types of accessories you run? And plan to run?!


Sent from my iPhone using Tapatalk Pro

Yep. Have them on all my Ram from 01-18 (most are PWs). I run train horns, two winches (front and back), power inverters for the cab, bed, and outside the truck, on board air run off of the motor, lights, led lights in the bed and cab, air helper springs in the rear, air lockers, lights, amp for the speakers, amp for the subs, did I mention lights?, And gives me some room to add things. I have MAJOR OCD when it comes to wiring. I like it too look factory and be easily removed (so I use automotive connectors like Delphi) and want everything protected.
