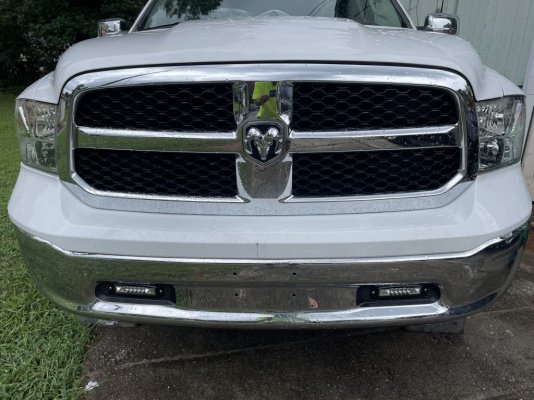

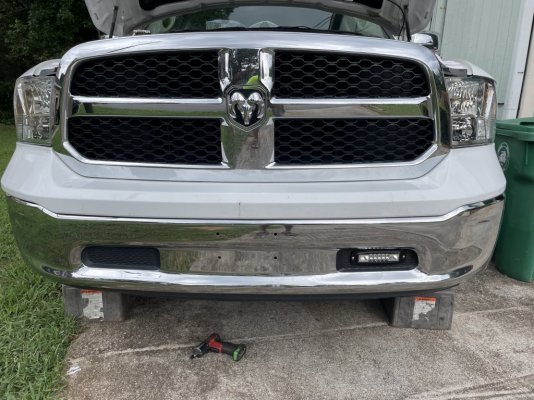

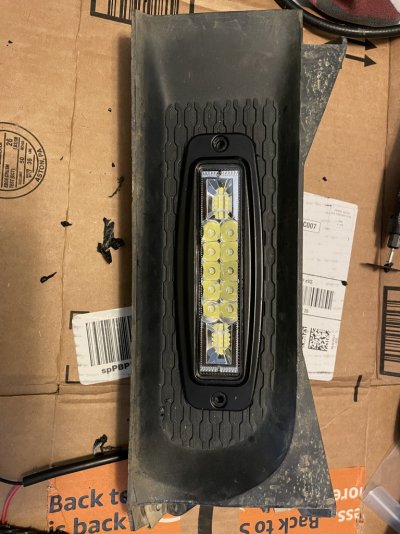

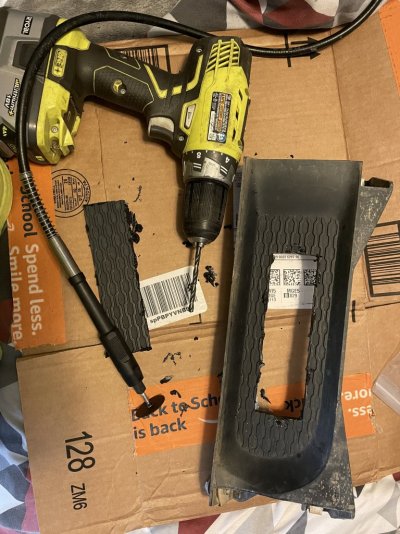

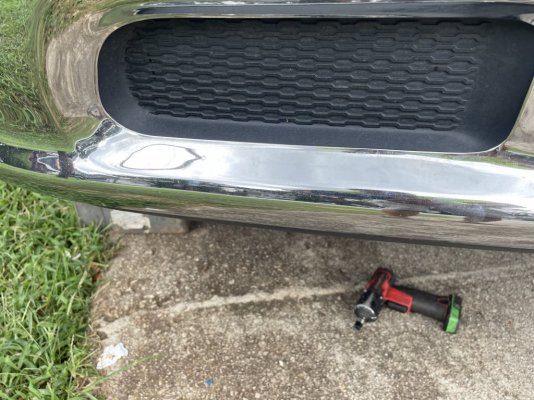

I did something similar to Swine's LED Pod Install, but I don't have the means to make/weld the brackets. See Pictures that follow.
- Swine's: LED light bars in bumper (tow hook Location)
-------------------- Parts List --------------------------
- 7" LED Cree "Spot" Lights ($26 at eBay)
. . or 9" LED Cree Lights similar to Swine's ($32 at eBay)
- (2) 9005/9006 compatible "Male" connectors ($8 5pk at eBay)
- Black RTV sealant (approx $4 at local WalMart)
- (1) Can of Flat Black Acrylic Enamel Spray Paint/Primer
- 4" x 36" 14ga Slotted Steel Strap/plate (approx. $12 at local ACE Hardware)
- (2 to 4 sets) M8 x 16mm Hex Bolts, Flat washers, & "****" Lock nuts (a few $ at local ACE Hw)
----------------------- THE INSTALL --------------------------
01. Crimp & solder Male 9005/9006 connector pins on LED Light wires (install seals first!), then insert into correct pin cavities to match foglight harness.
ie Positive/Red wire = ORG/Wht wire (or YEL/Wht) on Mopar harness and Negative/Blk wire = Blk wire on Mopar Harness.
02. Seal up backside of connector cavities with RTV, even with back of connector shell. Set aside to cure/dry.
03. Cut the 4" strap to approximately 13-5/8" long & file rough edges
I have 17 3500 that didn't come with factory fog lights but there was the 8 pin harness with a plug by the front driver wheel well. I got a used ranch hand with the sensors and fog lights and harness. I installed the bumper and plugged the harness in. I also got the factory fog light headlamp switch. After enabling the fog lights in Alfa OBD, I am now able to get the indicator on the dash to work but nothing coming out of the fog lights. Now, the 8 pin harness I plugged in that was already there has no missing terminals so I assumed I didn't need a jumper harness. Is there something different about mine or would this connector work? ThanksOld thread, I know, but the only one I've found that shows the "extension" harness I need. Are you still building these to fit a 17 3500 Ram? If so, I'm looking for one....View attachment 138702
That’s the park sensor not the fog light plugI have 17 3500 that didn't come with factory fog lights but there was the 8 pin harness with a plug by the front driver wheel well. I got a used ranch hand with the sensors and fog lights and harness. I installed the bumper and plugged the harness in. I also got the factory fog light headlamp switch. After enabling the fog lights in Alfa OBD, I am now able to get the indicator on the dash to work but nothing coming out of the fog lights. Now, the 8 pin harness I plugged in that was already there has no missing terminals so I assumed I didn't need a jumper harness. Is there something different about mine or would this connector work? Thanks
Hey how do I get a female connectorDISCLAIMER: I am not a coder, developer, software guru, electrical engineer, etc. but I did sleep at a Holiday Inn Express once!
With that said, all vehicle/electrical mods are at your own risk. Now have fun!
First I want to thank @1500ram12 and many others for their initial work:
- 1500Ram12's: Adding foglights to 2013+ tradesman/slt (2500 bumper parts listed here)
. . . . . and 2013-15 fog lights
- Swine's: LED light bars in bumper (tow hook Location)
I've gotten more than a few requests for a harness to work with the OEM Mopar Foglight Jumper harness in the bumper for 2013-2017 trucks so after a few test installs and 20+ hours of picture and instruction edits here it is:
--------------------- Required Parts (2013-18/Classic) --------------------------
** 19+ Classic Warlock owners see POST 147 for Warlock specific parts, (H11 bulb harness) & AlfaOBD programming steps

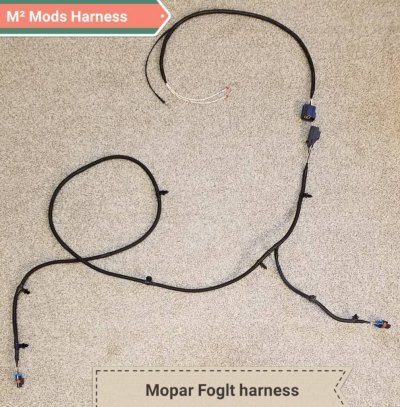

01. Foglight Extension Harness (Year and Model specific)
Contact M2 Mods
02. Mopar Foglight Jumper Harness (Year and Model specific)
Contact Preferred Vendor Benny at AllMoparParts.com (or similar online parts store).
- 68154309AA : 13-18/Classic Ram 1500’s with 1pc bumper
(“Vertical” 9006 Foglight bulbs with Sgl Keyed/1 groove connector)
. . . or
- 68197065AA : 13-18/Classic Ram 1500’s with 2pc bumper
(“Vertical” 9006 Foglight bulbs with Sgl Keyed/1 groove connector)
. . . or
- 68046303AC : 10-18 Ram 2500/3500's with 2pc bumper (ALL)
(“Horizontal” 9145/9005 Foglight bulbs with Dbl Keyed/2 groove connector)
03. Mopar Headlight/Foglight Switch
Contact Preferred Vendor Benny at AllMoparParts.com (or similar online parts store).
- 68269912AA : 13-18/Classic Ram 1500/2500/3500
(Replaces: 68189154AA, 68146507AA)
04. Extra “Fir Tree” style zip ties (Recommended - 2 included with M2 MODS harness)
- eBay Link
------------------------- THREAD LINKS ----------------------------------
- Post 2-6: 13-17 Ram 2500/3500 & 14-17 Ram 1500 Foglight Wiring Install
- Post 7-11: 2013 Ram 1500 (ONLY) Foglight Wiring Install
- Post 14-15: AlfaOBD & AE Tool Programming notes (vs Dealer Activation)
** DeereGuy (M2 MODS/KaodTech): In case anyone with a 2018+ RAM would like to make changes to their truck, we have a security bypass harness that will let alfaOBD and other tools work with the 2018s & up. SEE HERE.
- Post 18-21: Mpgrimm2's aftermarket LED Foglight Pod tow hook location install
- Post 23: Troubleshooting Notes
- POST 90-95: 2009-2012 Foglight TIPM/Install Notes from others!
View attachment 89451
View attachment 89453
View attachment 89813
View attachment 89814
So desperate to find one of these - UGH - someone please helpOld thread, I know, but the only one I've found that shows the "extension" harness I need. Are you still building these to fit a 17 3500 Ram? If so, I'm looking for one....View attachment 138702
Replied to your messageSo desperate to find one of these - UGH - someone please help
