Lost it !

[Daw14]

Had a code pop up the other day so I went to connect my Trinity T 1000 to read it , however I could not locate the OBD to tuner cable . Wanting to know if anyone might have one they would be willing to part with ? Thanks , Vern.



[Jeepwalker]

In case you don't find one (fairly recent posts):

LOOKING FOR TRINITY T1000 OBD2 CABLE - Diablosport Forums



[Daw14]

In case you don't find one (fairly recent posts):

LOOKING FOR TRINITY T1000 OBD2 CABLE - Diablosport Forums

Unfortunately there are none to be found ,I have been searching the webs for one . Nothing that I could find .i contacted Holley who now owns Diablo and was told it has been well over a year since they have had any. And I’m pretty much sol.



[RamDiver]

Unfortunately there are none to be found ,I have been searching the webs for one . Nothing that I could find .i contacted Holley who now owns Diablo and was told it has been well over a year since they have had any. And I’m pretty much sol.

Do you by chance have information on the requirements for the cable, pin outs and the connector requirements?

.



[crackerjack1957]

Unfortunately there are none to be found ,I have been searching the webs for one . Nothing that I could find .i contacted Holley who now owns Diablo and was told it has been well over a year since they have had any. And I’m pretty much sol.

Maybe???

https://ampperformance.com/i-14673526-diablosport-t1027-t1000-molex-style-obd-ii-connector.html​

https://markenperformance.com/i-140...ector-diablosport-t1027-upc-718122445752.html



[RamDiver]

Maybe???

https://ampperformance.com/i-14673526-diablosport-t1027-t1000-molex-style-obd-ii-connector.html​

https://markenperformance.com/i-140...ector-diablosport-t1027-upc-718122445752.html

That's great. One supplier in the US and one in Canadastan.

.



[04fxdwgi]

https://www.4wheelparts.com/p/diablosport-t1000-molex-style-obd-ii-connector/5316

T1000 Molex Style OBD-II Connector

This cable provides a straight OBD-II end for connection under your vehicles dash. Please check the location of your OBD-II port prior to purchasing this cable as it might interfere with your driving. Service Replacement Cable For Trinity Models w/Molex Style Cable OBD-II Style Connector On One...

berryperformanceacc.com



[Daw14]

Maybe???

https://ampperformance.com/i-14673526-diablosport-t1027-t1000-molex-style-obd-ii-connector.html​

https://markenperformance.com/i-140...ector-diablosport-t1027-upc-718122445752.html

Contacted both and none to be had , unavailable. Thanks for the try.



[Daw14]

https://www.4wheelparts.com/p/diablosport-t1000-molex-style-obd-ii-connector/5316

T1000 Molex Style OBD-II Connector

This cable provides a straight OBD-II end for connection under your vehicles dash. Please check the location of your OBD-II port prior to purchasing this cable as it might interfere with your driving. Service Replacement Cable For Trinity Models w/Molex Style Cable OBD-II Style Connector On One...

berryperformanceacc.com

unavailable,thanks for the suggestion.



[RamDiver]

It might be time to make one yourself or commission someone to assemble a cable.

Interface cables are pretty easy to construct if you have the pinout details.

.



[Daw14]

Inquired at Diablo about pin outs and they do not have a clue . They did offer me a 25% discount on a new tuner , I don’t think so.



[RamDiver]

Inquired at Diablo about pin outs and they do not have a clue . They did offer me a 25% discount on a new tuner , I don’t think so.

The details must be out there somewhere, it's not that complex. LOL

It's called a Diablo T-1000?

.



[Daw14]

The details must be out there somewhere, it's not that complex. LOL

It's called a Diablo T-1000?

.

Yes that’s the one ,Trinity T 1000 Cable part #1027 it plugs into the rear of the tuner , was told earlier versions plugged in the bottom of the tuner. If I can get the pin outs , i will have it made or make it myself ,just need that information. Thanks.



[RamDiver]

I searched "Trinity T 1000 Cable part #1027" and found more hits.
Most indicate out of stock but the link below allowed me to add to cart, for whatever that's worth.

I believe I may have seen offers for pre-enjoyed cables too, that might be another thing to search.

https://4wdparts.com/product/diablo...e-obd-ii-connector-date-codes-01-12-and-later

.



[JW2 Innovations]

@Daw14 Have you taken the tuner apart to see if it has any markings on it for where power goes into it?



[Wild one]

Yes that’s the one ,Trinity T 1000 Cable part #1027 it plugs into the rear of the tuner , was told earlier versions plugged in the bottom of the tuner. If I can get the pin outs , i will have it made or make it myself ,just need that information. Thanks.

Sometimes you'll find used ones for sale on the Hi-Po Ram pages on facebook,if you're on facebook



[Daw14]



[Daw14]

I don’t see anything that jumps out at me , maybe someone knows ?

@Daw14 Have you taken the tuner apart to see if it has any markings on it for where power goes into it?



[RamDiver]

I don’t see anything that jumps out at me , maybe someone knows ?

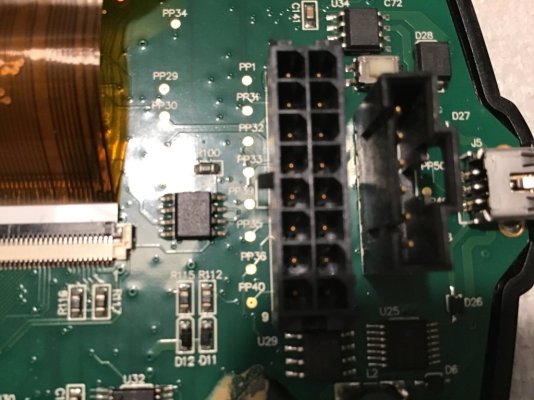

Would it be possible to see a closeup of the underside of the PCB, at the area the connectors are soldered in?

.



[Daw14]

Sometimes you'll find used ones for sale on the Hi-Po Ram pages on facebook,if you're on facebook

New or used does not matter , hopefully I will find mine . Going through all my stuff , I have a feeling my better half relocated it for me . The search continues.
