End of the line under the PDC. If you want a more factory look, add about 10 inches of wire between your supplied leads.

End of the line under the PDC. If you want a more factory look, add about 10 inches of wire between your supplied leads.

  • 1
  • 0
Routing in front of the radiator with the factory Front Module harness

Routing in front of the radiator with the factory Front Module harness

  • 1
  • 0

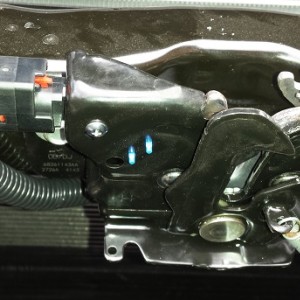

New hood latch. Only difference is the addition of the switch.

New hood latch. Only difference is the addition of the switch.

  • 1
  • 0

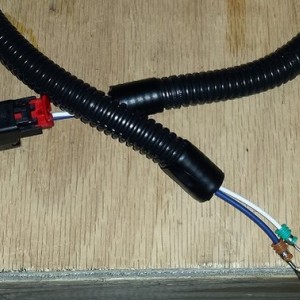

Completed harness wrapped with conduit.

Completed harness wrapped with conduit.

  • 1
  • 0

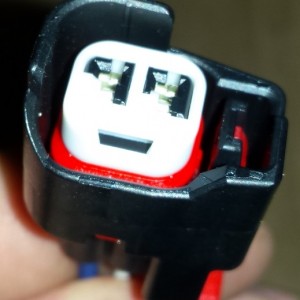

Completed hood switch connector.

Completed hood switch connector.

  • 1
  • 0

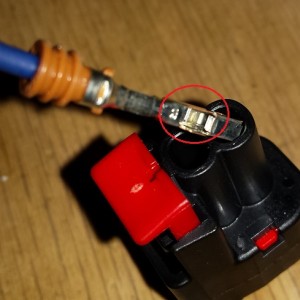

Take note of the notch in the terminal, it will line up with the tab in the connector.

Take note of the notch in the terminal, it will line up with the tab in the connector.

  • 1
  • 0

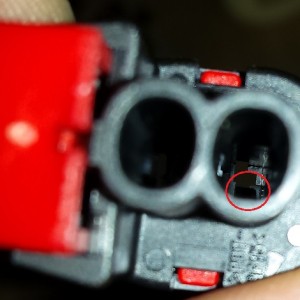

The back of the connector for the hood switch, notice the notch for aligning/locking the terminal.

The back of the connector for the hood switch, notice the notch for aligning/locking the terminal.

  • 1
  • 1
You get two of each of these crimp connectors.

You get two of each of these crimp connectors.

  • 1
  • 0
Everything in the kit. There are two leads that are 16 gauge, and two that are 20 gauge. Wires come fitted with terminals and seals.

Everything in the kit. There are two leads that are 16 gauge, and two that are 20 gauge. Wires come fitted with terminals and seals.

  • 1
  • 0

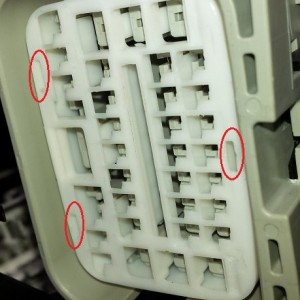

Front end side of the connector. Carefully pry up on the lock ring at the circled tabs and remove.

Front end side of the connector. Carefully pry up on the lock ring at the circled tabs and remove.

  • 1
