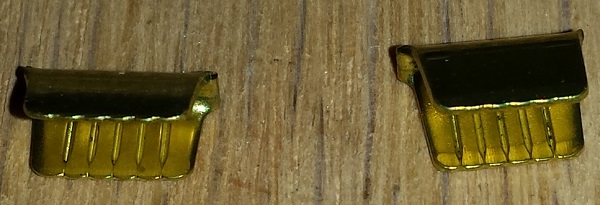

You get two of each of these crimp connectors.
Completed hood switch connector.
Take note of the notch in the terminal, it will line up with the tab in the connector.
The back of the connector for the hood switch, notice the notch for aligning/locking the terminal.
You get two of each of these crimp connectors.
Everything in the kit. There are two leads that are 16 gauge, and two that are 20 gauge. Wires come fitted with terminals and seals.
Front end side of the connector. Carefully pry up on the lock ring at the circled tabs and remove.
Moab_Rockstar

You get two of each of these crimp connectors.
