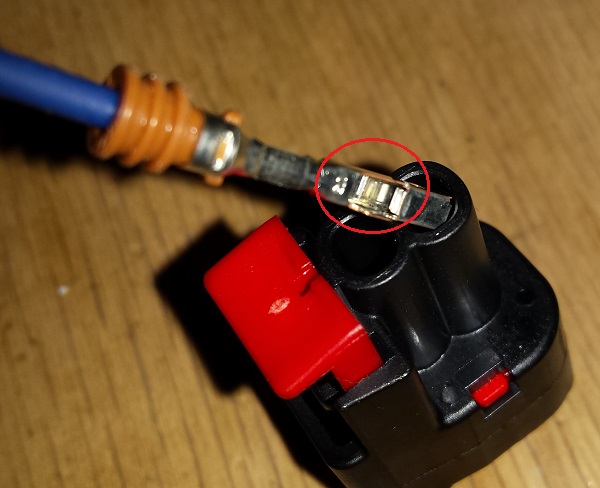

Take note of the notch in the terminal, it will line up with the tab in the connector.
New hood latch. Only difference is the addition of the switch.
Completed harness wrapped with conduit.
Completed hood switch connector.
Take note of the notch in the terminal, it will line up with the tab in the connector.
The back of the connector for the hood switch, notice the notch for aligning/locking the terminal.
You get two of each of these crimp connectors.
Everything in the kit. There are two leads that are 16 gauge, and two that are 20 gauge. Wires come fitted with terminals and seals.
Moab_Rockstar

Take note of the notch in the terminal, it will line up with the tab in the connector.
