Figured I would throw together a brief list of info for swapping in the 8hp70 in early 4th gens… I couldn’t find a lot of this out there so some was trial by fire and then leaning on others (thanks to Alex LaBrash), as they were the biggest help. The process would be similar in earlier models but part numbers and custom work may have to change up.

8 Speed Parts List:

8hp70 Transmission -
Used - $500-$900

Torque Converter -
Comes with JY Trans - $0

Torque Converter Bolts x6 - $1.10 (6509361AA)

Flex Plate (Flywheel) - $43 (4752574AB)
Flex Plate Bolt Spacer -$5 (4736613AA)
Crankshaft Pilot Sleeve - $14 (4736283AA)
Trans Mount Bracket - $72 (68147349AB)

Trans Mount Bracket Bolts x4 - $2 (6102400AA) - (M10x1.5x30)

Trans Mount - $70 (68147348AB)

Trans Mount Nuts x3 - $5 (6502979) - (M10x1.5)

Drive Shaft - Size Depends on Cab - $75-150 Used

Drive Shaft Bolts Trans Side and Diff $5 Each (6506497AA) (8 in total, can reuse old diff bolts)

Drive Shaft Carrier Crossmember - $300 (68055090AB)

Drive Shaft Carrier Bracket to Xmember - $6 (52105587AD)

Drive Shaft Carrier Bolts x 4 - $5 (6101060)
Driveshaft Carrier Nuts x 6 - $3 (6504728)

Transmission Vent Hose - $16 (4627854AB)

Dial Shifter or Console Shifter - Dial (Part# Varies on 2wd/4wd) - $300 New ($50 Used)

Engine to Trans Bolts (Pass Thru Block and Thread into Trans)x2 - $2.55 (6101985) (M10x1.5x45)

Engine/Converter dust Shield (Bottom 2 bolts, thread into Trans) x2 - $2.55 (6101985) (M10x1.5x45)

Sound German Automotive wiring/tcm and Recalibration - $1250

Fluid - Walmart.com Best Cost Option for Mopar Fluid - 6qts deal x2 ($110 Each - 12qts total)

Lines:
3/4-16 Tap - (8an)
2 - 8an ORB to 6an Fittings
2 - 90 Degree 6an to Hose Barb Fittings
5 Ft - 3/8 ID Transmission Hose
4 - Hose Clamps
Cut Factory lines near block and flared the end with flare tool for a raised lip

Misc:
Wire to Run Brake Feed to SGA Harness.

File to File Down tab on Can Bus Line on SGA Harness (purple connector) to Fit Can BUS C Star Connector (under steering wheel area, star connector with yellow wires)

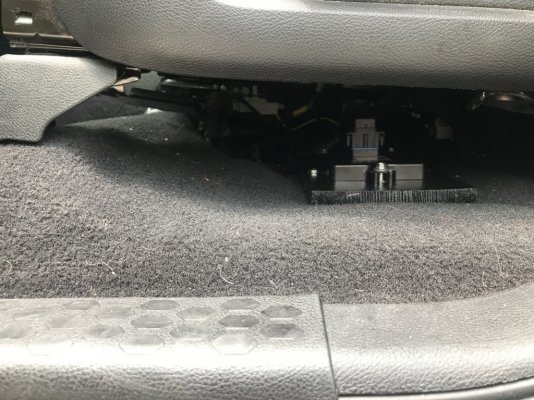

Bolts/Screws to Mount SGA Computer and OBD Port Connector (I went under drivers seat)

Zip Ties - To Clean up Wiring

Grommet if you pass Harness Thru Cab (I Used 1.5" ID (1 3/4 Inch Cut Out) From Amazon, This same grommet can plug the shifter cable hole in firewall as well, if you opt for no neutral cable. (will need 1 3/4 hole saw for this grommet)

Solder / Crimpers For SGA Harness Install
Add a fuse (micro fuse) I tapped into fuse 99 (climate control) - make sure power remains constant in accessory, run, AND crank - goes to yellow wire in sga harness)


Reused 6 Speed:
Transmission Crossmember - No Modifying was needed
Engine to Trans bolts (Bolts that pass thru trans and go into block (top 4 bolts)

Flex Plate Bolts
Trans Mount Nuts
Starter and Bolts
Trans lines and Cooler (after modifying)
Cable Brackets (frame)

Optional Items:
PPE Trans Pan
Performance Converter
Transmission Tune
Trans Heater
Trans Oem Lines

Trans Oem Coolant Lines (won’t be able to use valve)

Rear Main Seal (add RTV to List if Doing Seal)
Neutral Cable - $51 (68211076AG)
Neutral Cable Bracket on Trans - $8 (68149025AB)
Neutral Cable Bracket on Trans Bolts x2 - $6 (6510721AA) - (M8x1.5x18)
Neutral Cable Bracket on Frame (Reuse 6 speed Bracket - 68080743AA)
Neutral Cable Bracket to Starter Bolt and Plastic Clip (Reuse 6 Speed)
Steering Column Shroud - $36 (1GE44DX9AC)

Tips:

1.) sga harness only needs brake input, power, ground, accessory power, can bus(purple connector, and shifter wires …. Using the can bus reduces the need to use a lot of the wires (kit can be used in non can bus vehicles, these would need the other wires)

2.) the driveshaft carrier crossmember I used is the oem one and I welded it in…. You could use a piece of square tubing (1x4) just measure your frame rails for length. If you can’t weld you could riv nut some angle iron into the side of the frame to bolt the angle iron to frame then the angle Iron to your crossmember.

the recalibration sga does made my dash work like stock, trans temp reads out, no cel lights, and P,R,N, D all are in sync with dial shifter.

4.) the factory 8hp70 tcm is in the trans, you will have two ports on the sga harness for diag/tuning….. the obd port is for tuning the oem tcm, the 3 wire gm style connector is for adjusting the new tcm from sga.

5.) the flywheel is bolted to the crank , welds facing toward rear of vehicle, DONT NOT FORGET TO INSERT THE CRANK PIOLT BUSHING.

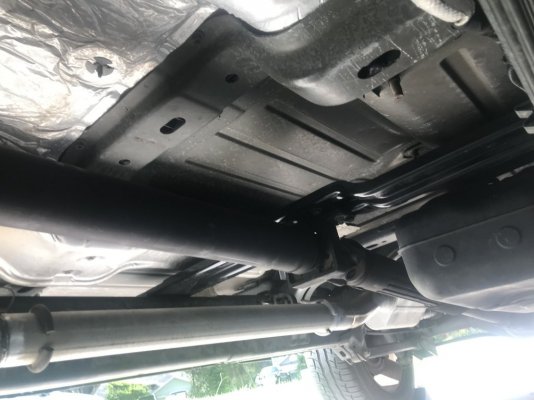

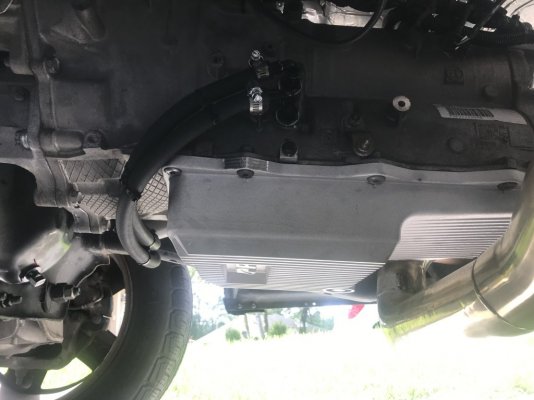

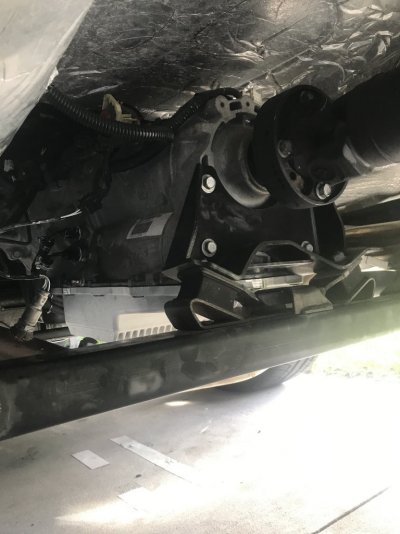

You must be registered for see images attach
You must be registered for see images attach
You must be registered for see images attach
You must be registered for see images attach

Last edited:

DILLIGAF

Senior Member
Military
Joined
May 28, 2016
Posts
1,911
Reaction score
1,909
Location
Canada
Ram Year
2012
Engine
5.7
What about the crankshaft tone ring ? I think after 2012 its different ?

Im looking to swap a 8 speed in mine next year and appreciate this writeup.

Cheers


Fast69Mopar

Senior Member
Joined
May 10, 2019
Posts
1,997
Reaction score
1,678
Location
Texas
Ram Year
2004
Engine
5.7 HEMI
What about the crankshaft tone ring ? I think after 2012 its different ?

Im looking to swap a 8 speed in mine next year and appreciate this writeup.

Cheers
The crankshaft tone ring is inside the crankcase, not on the outside. Up to 2012 and some very early 2013's utilize the 32 tooth setup. Most 2013 and newer utilize the 58 tooth setup.


HemiLonestar

Senior Member
Military
Joined
Jun 1, 2012
Posts
5,117
Reaction score
2,205
Location
MD
Ram Year
2003
Engine
5.7 hemi
Russell really has made it easy for you guys. He's confident that the early 4th gen setup will also work for the later 3rd gens. Early 3rd gens not so much lol.


RamminMopar

Senior Member
Joined
Feb 28, 2017
Posts
197
Reaction score
105
Ram Year
2009
Engine
Hemi
How soon might there be a 3rd gen swap available?


jmihalchik

Junior Member
Joined
Jul 1, 2021
Posts
7
Reaction score
12
Location
Florida
Ram Year
2013
Engine
Hemi 5.7
SGA's kit will work, you may not get the can bus features i get... so you may have more wiring to incorporate.... Reverse lights, speedo, Rpm, Tps, Trans Temp information.

The Trans stands alone as the TCM is internal in the transmission.... It just needs data from the BCM/PCM.... Mine gets it from the Can Bus , yours may have to get from other inputs.


Wild one

Senior Member
Joined
Jan 17, 2016
Posts
7,032
Reaction score
8,891
Ram Year
14 Sport
Engine
5.7
What about the crankshaft tone ring ? I think after 2012 its different ?

Im looking to swap a 8 speed in mine next year and appreciate this writeup.

Cheers
Dylan had a low milege used 8 speed he was trying to sell awhile ago Ian,not sure if he sold it our not though,but you could check with him.


1SLwLS1

Junior Member
Joined
Jan 8, 2013
Posts
25
Reaction score
7
Ram Year
2013
Engine
Hemi 6.4
I have a similar list building and this filled in some gaps, so thank you!

On the pilot sleeve - is that something specific for the 09-12 early 4th gens or needed for all 4th gen swaps? Looking at some diagrams, I see there is only (1) PN listed (instead of one for each transmission model) but it does say for the 8HP70 so I am wondering do the 65RFE's not have a pilot sleeve and the 8HP70 requires one or do the 65RFE's have one and need to swap to this one?
