Any Dodge techs on here or some one with a 2011 service manual?

[roadrnnr]

Looking for someone who might have access to a 2011 factory service manual.

I bought the Mopar fog light kit for my 2011 ram 1500 SLT and now I find out they were only made for 2009-2010, even though they are listed for sale all over for 2011's.

They changed the TPIM in 2011 and there is more than one configuration.

I need a picture of the wiring diagram for the TPIM that shows the fog light wires and connector so I can connect the wires in there.

Thought I had it when a guy with a 2011 ST had his done but the plug slots they used on his have wires in mine so an SLT must be differant.

The instructions that come with the kit,( Mopar # 82211694AB) show putting the wires in the green connector but that only works in 2009-20010 models.

Can any body help?



[macmongrel]

Looking for someone who might have access to a 2011 factory service manual.


Can any body help?

Im 99% sure the service manual is online on dodge's RAM truck site...I could check nd try to find a link but i remember reading it online.



[1500ram12]

service manual wont help. Im adding these hopefully this weekend. Im going to call the dealership tomorrow to find out where it needs to be plugged in.



[roadrnnr]

Im 99% sure the service manual is online on dodge's RAM truck site...I could check nd try to find a link but i remember reading it online.

I think you are thinking of the owners manual> I need the actual shop manual so some one can scan me the wiring diagram



[roadrnnr]

service manual wont help. Im adding these hopefully this weekend. Im going to call the dealership tomorrow to find out where it needs to be plugged in.

Let me know what they say. I have narrowed it down to the grey plug, slots 11/16 but on mine there is wires in those slots. I want to know where those wires go before I pull them out



[1500ram12]

Yeah I was

Sent from my DROIDX using Tapatalk



[1500ram12]

i haven't had a chance to look but I found this online grey connector ports 11 12



[roadrnnr]

i haven't had a chance to look but I found this online grey connector ports 11 12

Where was that post I can't find it anymore?

Yeah I found that also but it should be 11/16 like the guy that showed the picture in another forum had.



This was sent to me by chrysler and it does show the fogs wiring in 11/16 but mine has wires in it allready:

Harness Family: Fascia_Front
Harness Part Number: 68026759AA
Cavities: 4
Color: DK GRAY
Gender: Male
Part Description: 2.8 YESC SEALED MALE SUB ASSEMBLY
Repair Kit Part Number: Not Available
Seal: Sealed
Engineering Name: Inline_FEM_Foglamps
Connector No: I150

Pin Circuit Wire Color Gauge Function
1 Z904 BK 20 GROUND
2 L89 WT/YL 18 LEFT FRONT FOG LAMP CONTROL
3 L90 WT/OR 18 RIGHT FRONT FOG LAMP CONTROL
4 Z906 BK 20 GROUND



Pin Circuit Wire Color Gauge Function
D1 W1 INTERNAL WASHER FLUID LEVEL SWITCH SENSE
D2 L162 INTERNAL RIGHT SIDE REPEATER LAMP CONTROL OUTPUT
D3 G70 INTERNAL HOOD AJAR SWITCH SENSE
D4 NO CONNECTION
D5 NO CONNECTION
D6 L163 INTERNAL LEFT SIDE REPEATER LAMP CONTROL OUTPUT
D7 L160 INTERNAL RIGHT FRONT TURN SIGNAL CONTROL
D8 C818 INTERNAL A/C PRESSURE 5 VOLT SUPPLY
D9 L61 INTERNAL LEFT FRONT TURN LAMP DRIVER
D10 L124 INTERNAL HEADLAMP RELAY CONTROL
D11 L90 INTERNAL RIGHT FRONT FOG LAMP CONTROL
D12 NO CONNECTION
D13 NO CONNECTION
D14 G931 INTERNAL SENSOR GROUND
D15 G31 INTERNAL AAT SIGNAL
D16 L89 INTERNAL LEFT FRONT FOG LAMP CONTROL



[1500ram12]

I just got off the phone with a local dealer and he said that d11 and d16 in the grey connector were for the fogs. Im hoping I'll have time today to do some exploring and see what I can find out with my truck. I'll keep you posted



[1500ram12]

well no luck, their is a wire in 16 and couldn't locate 11. Ill have to do some more research



[macmongrel]

I think you are thinking of the owners manual> I need the actual shop manual so some one can scan me the wiring diagram

Hah, Yep I was...My Bad



[IH Scout Driver]

I found this wiring diagram link on another forum while I was looking for a service manual myself. It ONLY covers the wiring details. Too bad we can't get a copy of the full manual anymore; nowhere I've looked has anything newer than 2009 available (and the 2009 version only covers the 1500 model with gas engine).

Dodge Wiring Details

HTH



[1500ram12]

I found this wiring diagram link on another forum while I was looking for a service manual myself. It ONLY covers the wiring details. Too bad we can't get a copy of the full manual anymore; nowhere I've looked has anything newer than 2009 available (and the 2009 version only covers the 1500 model with gas engine).

Dodge Wiring Details

HTH

thanks for the link.



[1500ram12]

well after looking at the link provided by IH Scout Driver one of two things are wrong. Either I am looking at the wrong connector or the pic of the connector in the diagram is wrong. The connector that I've been looking at is directly below where the fuse for the fog lights go. Hopefully I'll have time to look today to see if I can find the connector pictured in the diagram



[roadrnnr]

thanks for the link.

No good. No fog light connectors are shown



[roadrnnr]

well after looking at the link provided by IH Scout Driver one of two things are wrong. Either I am looking at the wrong connector or the pic of the connector in the diagram is wrong. The connector that I've been looking at is directly below where the fuse for the fog lights go. Hopefully I'll have time to look today to see if I can find the connector pictured in the diagram

Heres the picture of the plug you want.

From apstram who is helping me also this plug is right behind the green one and the only grey one in the TPIM. at least on my 2011.

Mine has wires in 11 and 16 but they need to be removed and the ones from the kit put in there. The one he is pointing to is 11 and 16 is all the way to the left.

If you have wires in that plug you may have the fog plugs tucked up under the bumper also. Havn't found mine yet but they look like this:

Thanks to apstram for the pics



[1500ram12]

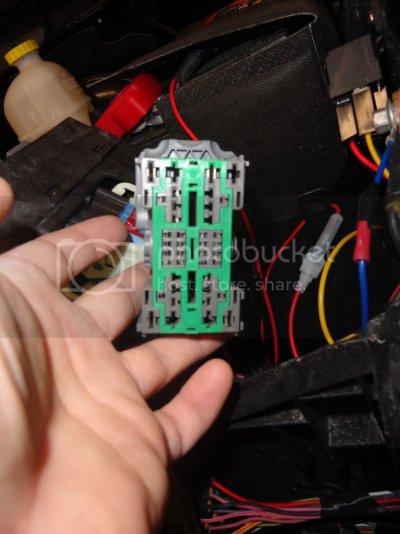

this is the one I was looking at. It's right below where the fuse is for the fogs.



[1500ram12]

No good. No fog light connectors are shown

you can click on a fog light expand but it doesn't do anything but show where the factory wires to the fog lights are. Im hoping to do some more exploring today to see what I come up with



[roadrnnr]

this is the one I was looking at. It's right below where the fuse is for the fogs.

tHATS THE ONE i THOUGHT IT WAS THE FIRST TIME ALSO. tHAT IS NOT IT. iT IS THE SMALL GREY PLUG 16 PIN. iT IS ALONG THE BACK PORTION OF THE FUSE BOX to the right of that one. It has a red lock you need to release to get it free.

See if you have this under your bumper on the drivers side. It is looking up from the bottom laying on the ground.

or this:

Mine has the first pic and apstram has the second which he says are factory fog light plugs. Both of ours are 2011's



[0212353]

http://mcfail.net/dt/Service manual.zip

link to the service manual guys.
