Driver seat wiring seatbelt chime

[Shawn PUTNEL]

Ok I have a 2011 bighorn I updated the seats to a 2018 laramine seats throughout. Everything is working except the seatbelt chime thingy has anyone had this happen or know exactly what wires to hookup to get this to work properly?



[SitKneelBend]

Ok I have a 2011 bighorn I updated the seats to a 2018 laramine seats throughout. Everything is working except the seatbelt chime thingy has anyone had this happen or know exactly what wires to hookup to get this to work properly?

Is it chiming or not chiming?

Sent from my HTC U11 using Tapatalk



[Shawn PUTNEL]

Its chiming like it would if the seatbelt is not on



[SitKneelBend]

Its chiming like it would if the seatbelt is not on

You can try this manual process to turn off the chime completely. I did it in my father in law's 2012.

https://itstillruns.com/disable-belt-alarm-dodge-ram-7379517.html

Step 1

Sit in the driver's seat and shut all the doors.

Step 2

Put the key into the ignition and fasten your safety belt. Turn the vehicle to the "on" position, but don't start the engine. Wait for the safety belt light to turn off on the instrument panel.

Step 3

Fasten and unfasten your safety belt three times within one minute of turning the vehicle to the "on" position. Then fasten the seat belt one last time.

Turn the key to the "lock" position. You should hear the bell chime one time. This is an indication that the Ram's BeltAlert system has been turned off




As far far fixing the wiring, I'm not sure but @Mpgrimm2 may know and/or can sell you a harness to correct the issue.

Sent from my HTC U11 using Tapatalk



[Shawn PUTNEL]

But it's not hooked up to be able to do this at all!
I posted a pic of the plug I just need to know what wires are to the seatb6



[SitKneelBend]

But it's not hooked up to be able to do this at all!
I posted a pic of the plug I just need to know what wires are to the seatb6

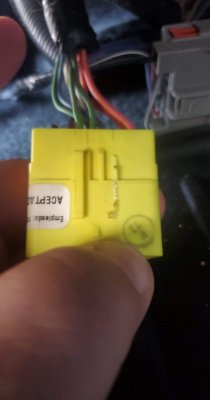

View attachment 212530

If it's not hooked up that's likely the problem. It might fail in the alarmed state (unless I'm misunderstanding your situation)...



Sent from my HTC U11 using Tapatalk



[Shawn PUTNEL]

Yes it's a seat from a 2018 laramine my truck is a 2011 the plugs are not the same



[Shawn PUTNEL]

I really just dont know what wires on the plug I posted a pic of are for the seatbelt I've got everything else working right just not the seatbelt



[SitKneelBend]

Yes it's a seat from a 2018 laramine my truck is a 2011 the plugs are not the same

I really just dont know what wires on the plug I posted a pic of are for the seatbelt I've got everything else working right just not the seatbelt

Ok I got it now.

One caveat, the seats have airbags in them so be careful.

That said, this site might help you match things up. It's has pinouts for factory connectors.

http://connectors.dcctools.com/home.htm


Sent from my HTC U11 using Tapatalk



[Shawn PUTNEL]

Where can I find what you're talking about?



[SitKneelBend]

Where can I find what you're talking about?

Use the filters to select the year and type of vehicle (2011 1500 should be "DS"). On the next screen try using the search filter to narrow down the results. Type in "seat" and you will get pinouts for seat related harnesses.

Sent from my HTC U11 using Tapatalk



[gypsy400]

Bright yellow plug tells me that is an airbag plug.. I bet your 2011 doesn't have side air bags?

Sent from my SM-G960W using Tapatalk



[Jimmy07]

Ok I have a 2011 bighorn I updated the seats to a 2018 laramine seats throughout. Everything is working except the seatbelt chime thingy has anyone had this happen or know exactly what wires to hookup to get this to work properly?

Here’s the 2018 seat connector-
Pins 11&12 are the seatbelt wires.



[Shawn PUTNEL]

Man jimmy07 I sure the hell appreciate this
